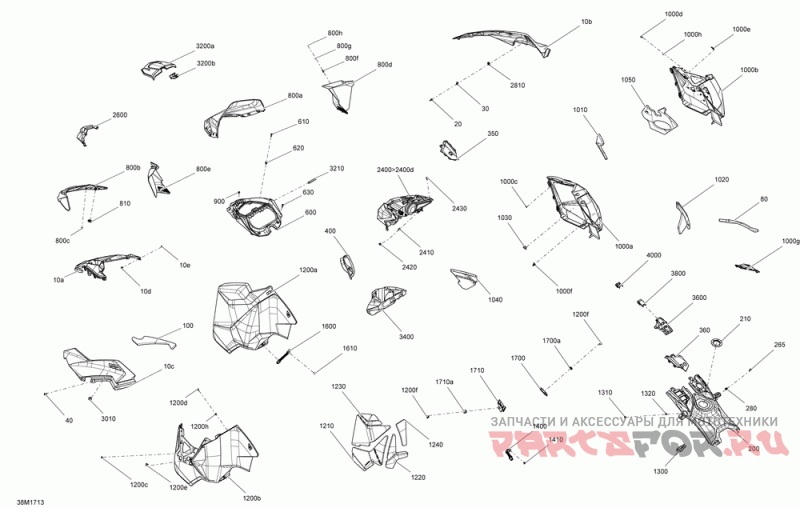

09- hood - all models

Ski-Doo (Bombardier) EXPEDITION - 4-STROKE - SPORT

Ski-Doo (Bombardier)
#oem кодцена
10a
517305011
Deep Black Center Hood
10b
517305284
Правая боковина передняя белая
10c
517305285
Левая боковина передняя белая
10d
293150104
Поп Заклепки 3/16"
10e
517124300
Rondelle *washer (10.000 Per Pack)
20
250000528
Torx Screw M5 X 20 (5.000 Per Pack)
30
250000079
Гайка М5 Х 0,8
40
250000587
Torx Screw M5 X 26
80
517305090
Rh Rear Hood Foam
100
517305091
Lh Rear Hood Foam
200
517305557
White Rear Console
210
517304518
заглушка
265
250000705
Винт М6 Х 20
280
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
350
517305549
Rh Front Console
360
517306022
Console Avant *console-front
400
517305061
Deep Black Rh Console
600
517305511
Deep Black Indicator Support
610
250000528
Torx Screw M5 X 20 (5.000 Per Pack)
620
250000079
Гайка М5 Х 0,8
630
250000587
Torx Screw M5 X 26
800a
860200928
Pare-brise 450 *450 Windshield
800b
860200944
Суппорт
800c
732610072
Гайка
800d
517304928
Rh Air Deflector
800e
517304929
Lh Air Deflector
800f
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
800g
250200025
Washer M5 (10.000 Per Pack)
800h
250200024
Rubber Washer 5 Mm (10.000 Per Pack)
810
517303756
Втулка
900
293830005
Rubber Bumper (5.000 Per Pack)
1000a
517305400
White Rh Panel
1000b
517305058
Deep Black Rh Panel Trim
1000c
250100158
Гайка
1000d
293150104
Поп Заклепки 3/16"
1000e
517305109
Пластина
1000f
517305504
Палец
1000g
517304935
Rh Panel Vent Grid
1000h
517124300
Rondelle *washer (10.000 Per Pack)
1010
517305197
Rh Center Panel Foam
1020
517305199
Rh Rear Panel Foam
1030
517305451
Тепловой Щит
1040
517305196
Rh Upper Panel Foam
1050
517305198
Rh Lower Panel Foam
1200a
517305407
White Lh Panel
1200b
517304805
Deep Black Lh Flashing Panel
1200c
250100158
Гайка
1200d
293150104
Поп Заклепки 3/16"
1200e
517305109
Пластина
1200f
517305734
Палец
1200h
517124300
Rondelle *washer (10.000 Per Pack)
1210
517305201
Lh Center Panel Foam
1220
517305202
Lh Lower Panel Foam
1230
517305200
Lh Upper Panel Foam
1240
517305203
Lh Rear Panel Foam
1300
517305279
Panel Latch
1310
250000565
Hexalob Screw M4 X 10
1320
250100156
Weld Nut M4
1400
517304919
Rh Panel Latch
1410
293150108
Pop Rivet 3/16# (25.000 Per Pack)
1600
517303808
Lh Panel Latch
1610
293150108
Pop Rivet 3/16# (25.000 Per Pack)
1700
517305724
Rh Panel Clip Ass Y Includes 1700 To 1700a
1700a
517305723
Прокладка
1710
517305722
Lh Panel Clip Ass Y Includes 1710 To 1710a
1710a
517305723
Прокладка
2400>2400d
517306180
Phare *headlamp Includes 2400 To 2400d
2400a
219400070
Крышка
2400b
515176274
Halogen Bulb, 60/55 W, 12 V
2400c
219800282
Holder Bracket
2400d
219800281
Пружина
2410
250000528
Torx Screw M5 X 20 (5.000 Per Pack)
2420
250100035
Гайка М5
2430
250000725
Винт М4 Х 16
2600
517305010
Headlight Trim Cap
2810
517302841
Rondelle *grommet (10.000 Per Pack)
3010
517302841
Rondelle *grommet (10.000 Per Pack)
3200a
517304912
Upper Storage Access Cover
3200b
517304917
Cover Latch
3210
517305157
Seal Joint
3400
517305095
Багажник
3600
517304970
Console Support
3800
517305180
Deep Black Support Console Cap
4000
517305148
Support Console Cap
