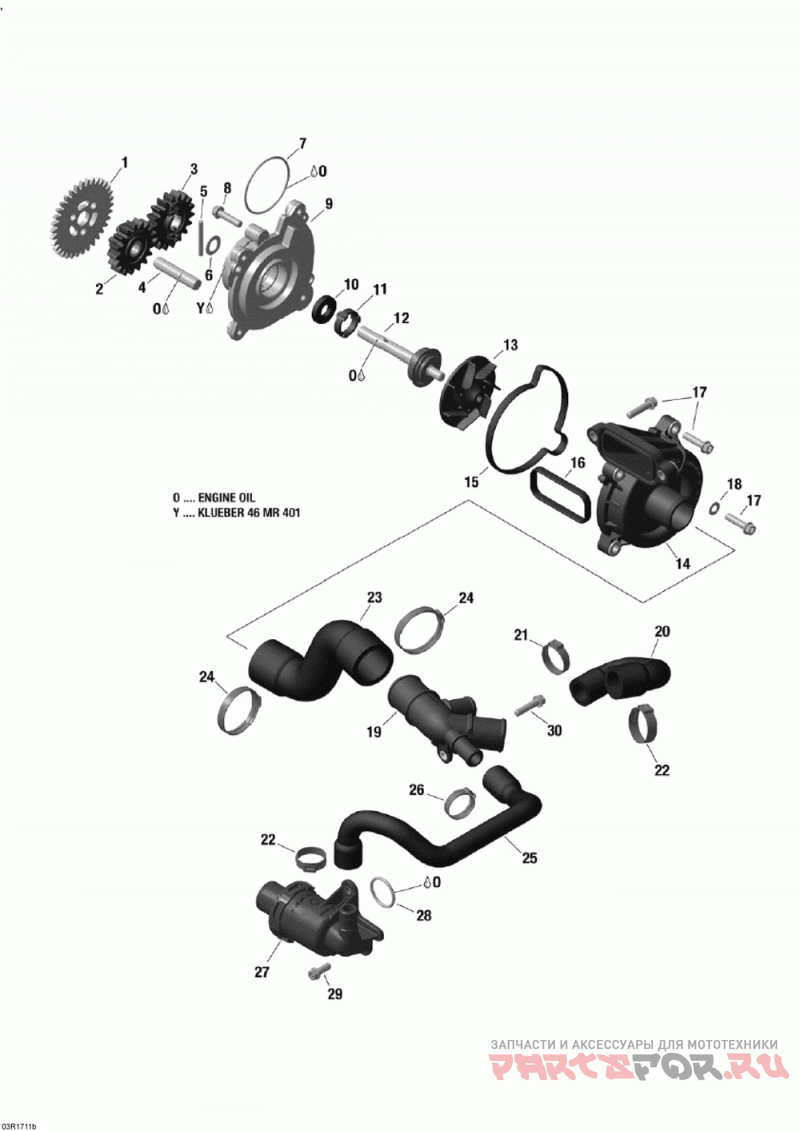

01 - Система охлаждения двигателя - 1200 4-ТЕС

Ski-Doo (Bombardier) EXPEDITION - 4-STROKE - LE-XTREME

Ski-Doo (Bombardier)
#oem кодцена
1
420835065
Idle Gear, 34 Teeth
2
420835062
Idle Gear, 17 Teeth
3
420835070
Water Pump Gear, 18 Teeth
4
420229302
Штифт
5
420832660
Иглы Контактный
6
420827590
Упорная шайба
7
293300117
O-ring Included In Gasket Kit
8
420440234
Flanged Torx Screw M6 X 25
9
420910230
Воротник
10
420650315
Oil Seal Included In Gasket Kit
11
420947430
Spacer Ring
12
420837921
Вал Водяного Насоса
13
420922805
Water Impeller
14
420822462
Water Pump Housing Ass Y Includes 14 To 16
15
420430780
Joint Etanche *gasket Included In Gasket Kit
16
420431290
Joint Etanche *gasket Included In Gasket Kit
17
420440234
Flanged Torx Screw M6 X 25
18
420230415
Seal Washer Included In Gasket Kit
19
420922141
Water Manifold
20
420922091
Boyau* Form Hose
21
420851673
Gear Clamp (2.000 Per Pack)
22
509000442
Хомут
23
420460461
Boyau* Form Hose
24
420951293
Хомут
25
420922132
Boyau* Form Hose
26
509000442
Хомут
27
420822541
Thermostat Housing Ass Y Includes 27 To 28
28
420631876
O-ring Included In Gasket Kit
29
420440162
Flanged Torx Screw M6 X 16
30
420440234
Flanged Torx Screw M6 X 25
