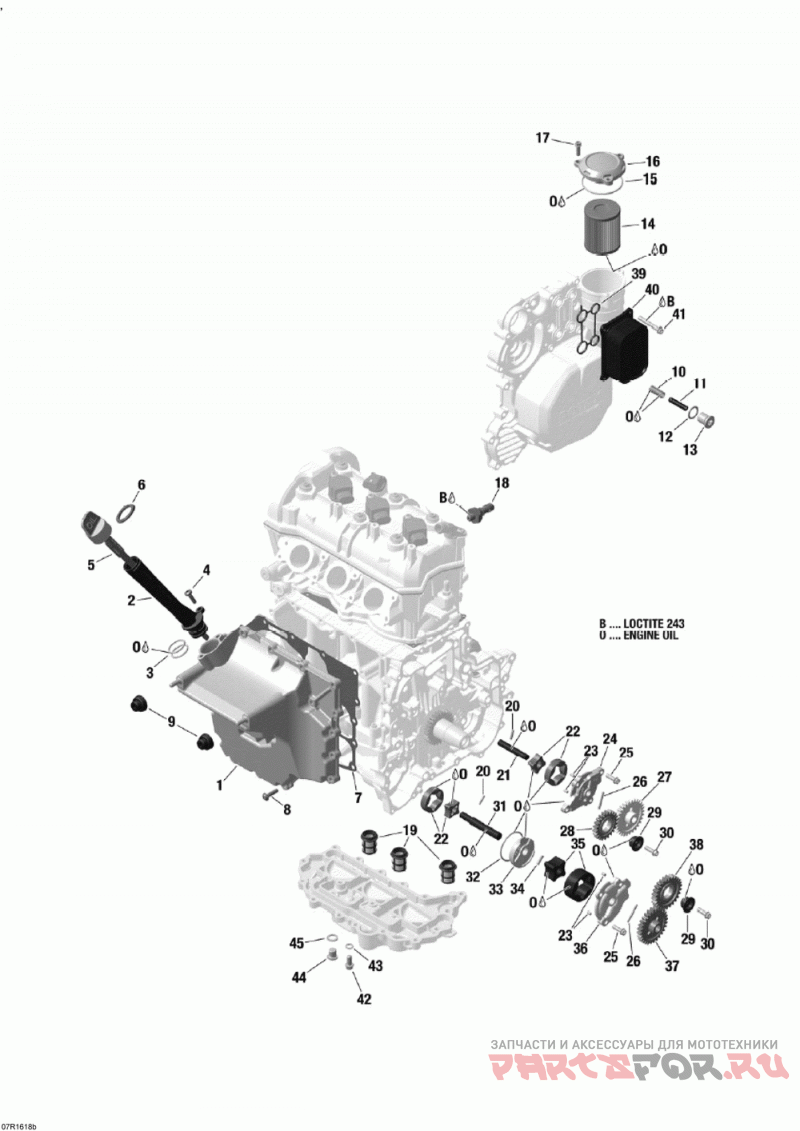

Смазки двигателя

Ski-Doo (Bombardier) SKANDIC - 4-STROKE

Ski-Doo (Bombardier)
#oem кодцена
1
420656700
Масляный Поддон Крышка
2
420656900
Маслоналивная Трубка
3
420430440
O-ring Included In Gasket Kit
4
420441386
Flanged Torx Screw M6 X 20 Tightening Torque 9 Nm +/- 12%
5
420856667
Oil Lever Tube Includes 5 To 6
6
420431790
Anneau*gasket Ring Included In Gasket Kit
7
420431840
Joint Etanche *gasket Included In Gasket Kit
8
420841549
Flanged Torx Screw M6 X 25 Tightening Torque 9 Nm +/- 12% Retry Torque 11nm +/- 12%
9
420860150
Резиновый патрубок
10
420256517
Pression Regulating Piston
11
420239445
Пружина
12
420430622
Gasket Ring Included In Gasket Kit
13
420441372
Plug Screw Tightening Torque 17 Nm +/- 12%
14
420956123
Масляный Фильтр
15
420650500
O-ring Included In Gasket Kit
16
420612132
Крышка масленного фильтра
17
420440207
Flanged Torx Screw M6 X 20 Tightening Torque 9 Nm +/- 12%
18
420256915
Oil Pressure Switch Tightening Torque 12 Nm +/- 12%
19
420656680
Масло
20
420232731
Иглы Контактный
21
420820120
Масляный Насос Вал
22
420256348
Масляный Насос Ротора
23
420929075
Иглы Контактный
24
420911080
Крышка насоса
25
420440207
Flanged Torx Screw M6 X 20 Tightening Torque 9 Nm +/- 12%
26
420232431
Иглы Контактный
27
420834882
Oil Pump Gear, 29 Teeth
28
420835054
Idle Gear, 22 Teeth
29
420947394
Проставка
30
420440207
Flanged Torx Screw M6 X 20 Tightening Torque 9 Nm +/- 12%
31
420837916
Масляный Насос Вал
32
420631830
O-ring Included In Gasket Kit
33
420611950
Крышка насоса
34
420632220
Иглы Контактный
35
420256836
Масляный Насос Ротора
36
420611980
Крышка насоса
37
420834887
Oil Pump Gear, 28 Teeth
38
420835321
Idle Gear, 26 Teeth
39
420431870
Joint Etanche *gasket Included In Gasket Kit
40
420656697
Масляный Радиатор
41
420440324
Flanged Torx Screw M6 X 45 Tightening Torque 9 Nm +/- 12%
42
420440852
Flanged Torx Screw M8 X 16 Tightening Torque 15 Nm +/- 12%
43
420950141
Sealing Ring Included In Gasket Kit (5.000 Per Pack)
44
420241700
Plug Screw M12 X 1.5 Tightening Torque 15 Nm +/- 12%
45
420250640
Copper Washer Included In Gasket Kit
