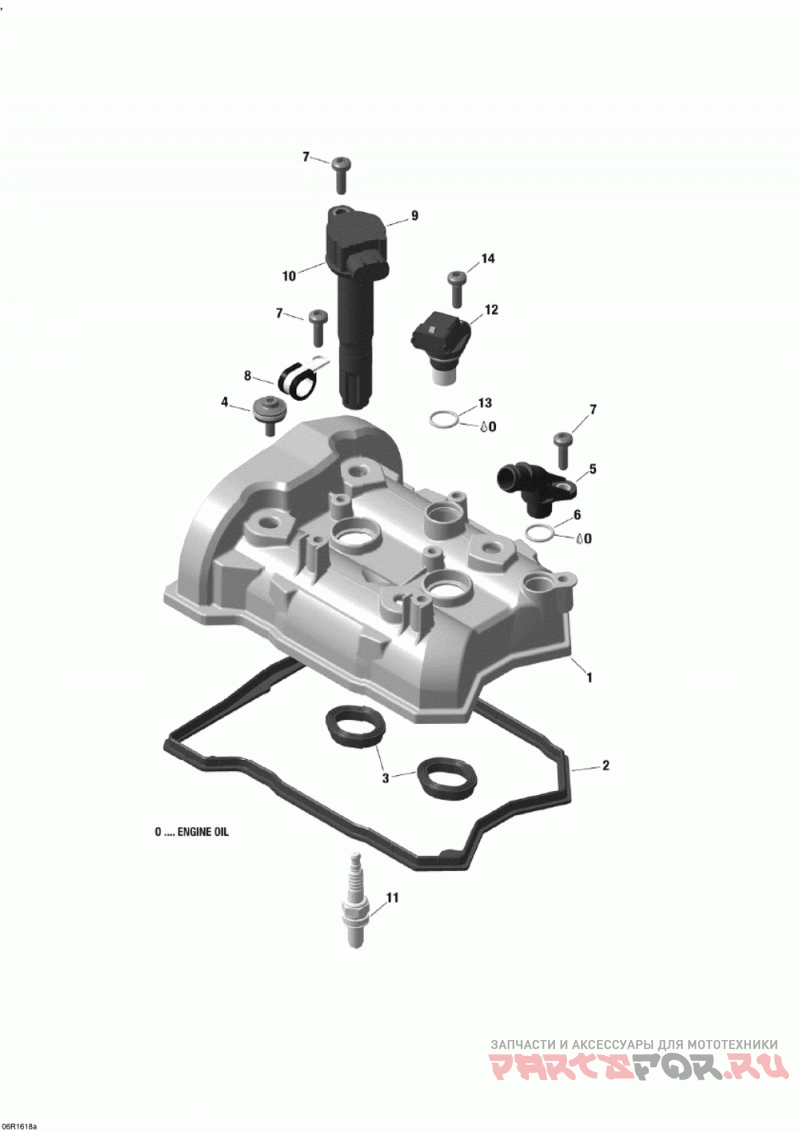

Клапанная крышка - 600 ace

Ski-Doo (Bombardier) SKANDIC - 4-STROKE

Ski-Doo (Bombardier)
#oem кодцена
1
420911042
Крышка клапанная
2
420431621
Joint Etanche*gasket Included In Gasket Kit
3
420431751
Joint Etanche*gasket Included In Gasket Kit
4
420440495
Torx Distance Screw M6 Tightening Torque 9 Nm +/- 12%
5
420611240
Штуцер
6
420631240
O-ring Included In Gasket Kit
7
420441386
Flanged Torx Screw M6 X 20 Tightening Torque 9 Nm +/- 12%
8
420851492
Кабельный Зажим
9
420666141
Ignition Coil Ass Y Includes 9 To 10
10
420201460
Защитный колпачек
11
415129670
Spark Plug, Ngk Mr7bi-8 Tightening Torque 13 Nm +/- 12% (4.000 Per Pack)
12
420664045
Camshaft Position Sensor Ass Y Includes 12 To 13, Model-itc
13
420631890
O-ring Included In Gasket Kit
14
420441386
Flanged Torx Screw M6 X 20 Tightening Torque 9 Nm +/- 12%
