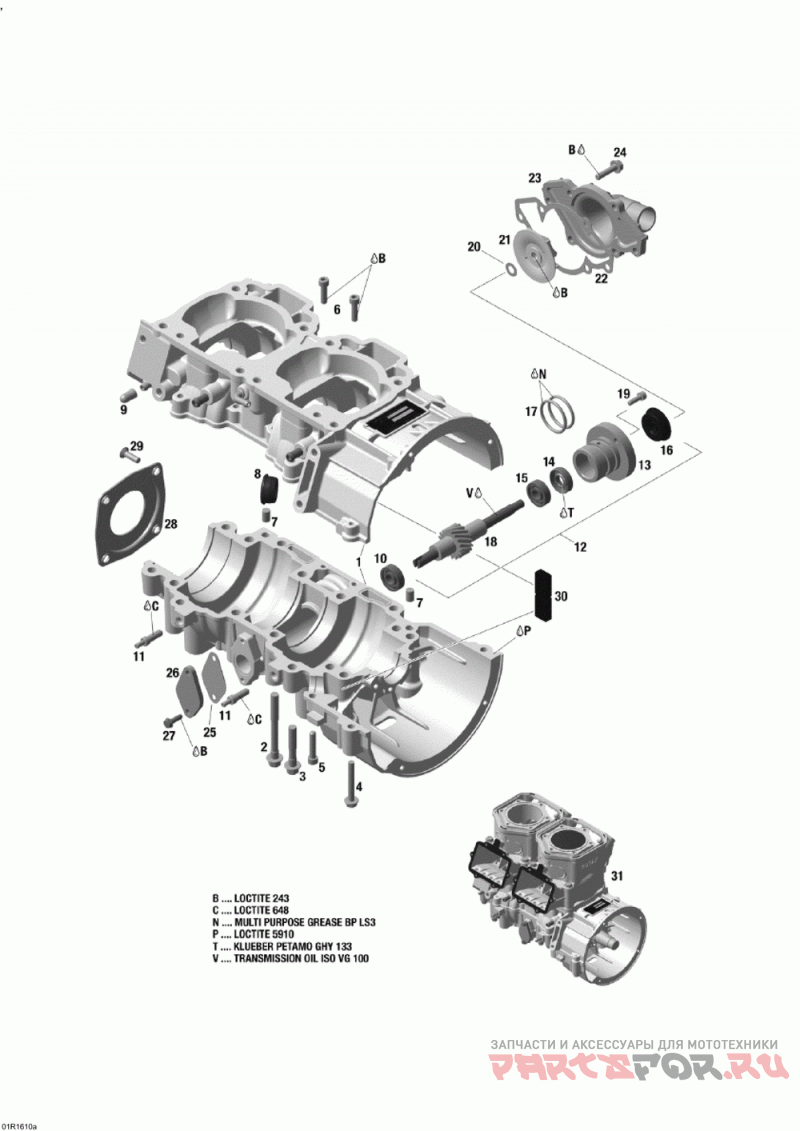

Картер и водяная помпа

Ski-Doo (Bombardier) EXPEDITION -LE/ SE / Extreme - 2-STROKE

Ski-Doo (Bombardier)
#oem кодцена
1
420890222
Деталь Crankcase Ass Y Includes 1 To 10
2
420640836
Деталь Hex. Collar Screw M8 X 75 Tightening Torque 28-30 Nm
3
420640431
Деталь Hex. Collar Screw M8 X 45 Tightening Torque 28-30 Nm
4
420640311
Деталь Hex. Collar Screw M6 X 45 Tightening Torque 8-10 Nm (5.000 Per Pack)
5
205063044
Деталь Socket Head Screw M6 X 30 Tightening Torque 8-10 Nm (10.000 Per Pack)
6
420840401
Деталь Socket Head Screw M6 X 22 Tightening Torque 8-10 Nm (10.000 Per Pack)
7
420632010
Контактный Центр 8 Х 12
8
420660890
уплотнетель кабеля
9
420960770
Крышка
10
420232100
Подшипник
11
420956070
Обратный клапан
12
420837421
Деталь Water Pump/oil Pump Ass Y Includes 12 To 18
14
420230195
Деталь Oil Seal Included In Gasket Kit
15
420232100
Подшипник
16
420650370
Деталь Rotary Seal Included In Gasket Kit
17
420950890
Деталь O-ring Included In Gasket Kit
19
420840511
Деталь Socket Head Screw M5 X 16 Tightening Torque 5-6 Nm
20
420227945
Шайба
21
420222505
Деталь Water Impeller Tightening Torque 4-5 Nm
22
420931810
Деталь Joint *gasket Included In Gasket Kit
23
420922630
Корпус водяной помпы
24
420240034
Деталь Hex. Screw M6 X 25 Tightening Torque 12-14 Nm
25
420931566
Деталь Joint *gasket Included In Gasket Kit
26
420810827
Деталь Couvercle *cover Plate
27
420941925
Деталь Tapping Screw M5 X 16 Tightening Torque 5-6 Nm (10.000 Per Pack)
28
420812420
Крышка
29
420941436
Деталь Screw M6 X 20 Tightening Torque 10-12 Nm
30
420960925
Деталь Eponge *sponge Rubber
