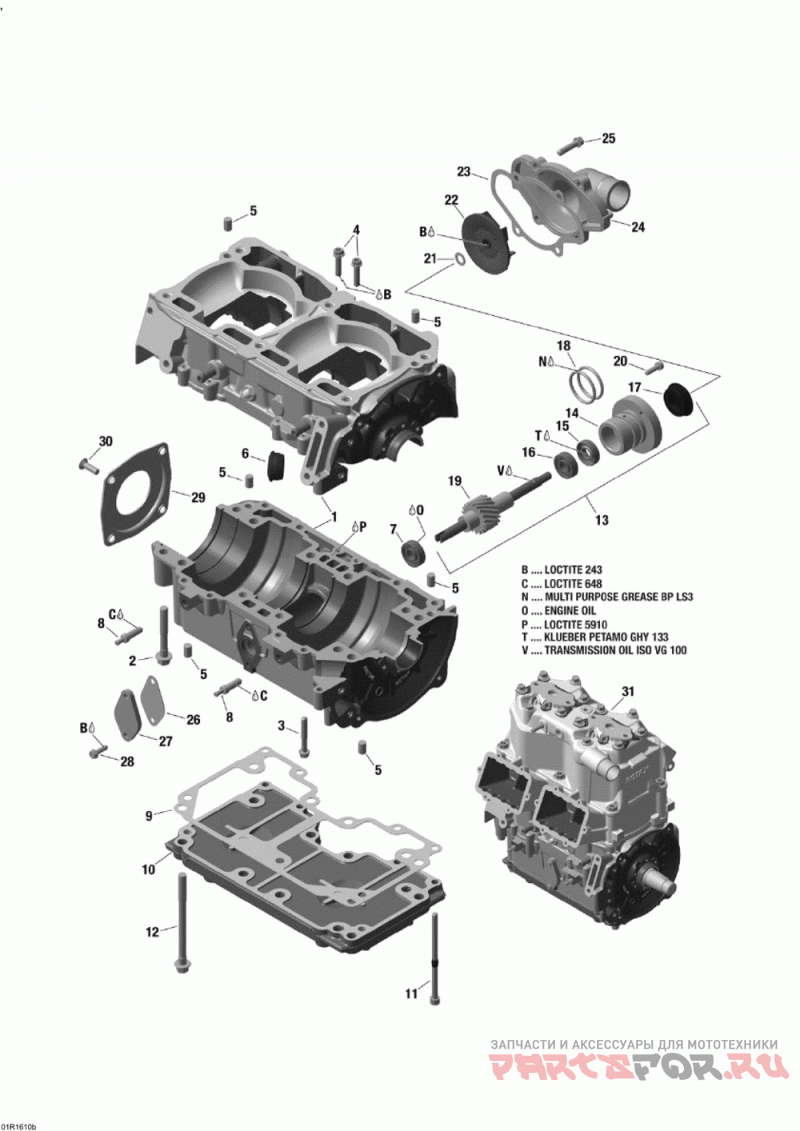

01 - Картер и Водяной насос - 800 Е-ТЕС для снегоходов Ski-Doo (Bombardier) EXPEDITION -LE/ SE / Extreme

01 - Картер и Водяной насос - 800 Е-ТЕС

Ski-Doo (Bombardier) EXPEDITION -LE/ SE / Extreme - 2-STROKE

oem код

название

цена

420893084

Crankcase Ass Y Includes 1 To 7

420941627

Hex. Screw M8 X 56.5 Tightening Torque 28-30 Nm

420440282

Flanged Torx Screw M6 X 40 Tightening Torque 10-12 Nm

420440234

Flanged Torx Screw M6 X 25 Tightening Torque 10-12 Nm

420632010

Контактный Центр 8 Х 12

уплотнетель кабеля

Подшипник

Обратный клапан

Joint Sup.mot. *gasket Engine Support Included In Gasket Kit

420812683

Engine Support

420241606

Socket Head Screw M6 X 100 Tightening Torque 10-12 Nm

420941517

Hex. Screw M8 X 105 Tightening Torque 28-30 Nm

420837676

Water Pump/oil Pump Shaft Ass Y Includes 13 To 19

420230195

Oil Seal Included In Gasket Kit

420232100

Подшипник

420650370

Роторное Уплотнение

420950890

O-ring Included In Gasket Kit

420840511

Socket Head Screw M5 X 16 Tightening Torque 5-6 Nm

420944033

Washer 8.4 (10.000 Per Pack)

420922805

Water Impeller Tightening Torque 14-16 Nm

420430050

Joint Couv.pom.*gasket Cover Water Pump Included In Gasket Kit

420822280

Корпус водяной помпы

420440234

Flanged Torx Screw M6 X 25 Tightening Torque 10-12 Nm

420931566

Joint *gasket Included In Gasket Kit

420810827

Couvercle *cover Plate

420941925

Tapping Screw M5 X 16 Tightening Torque 5-6 Nm (10.000 Per Pack)

420812420

Крышка

420941436

Screw M6 X 20 Tightening Torque 10-12 Nm
