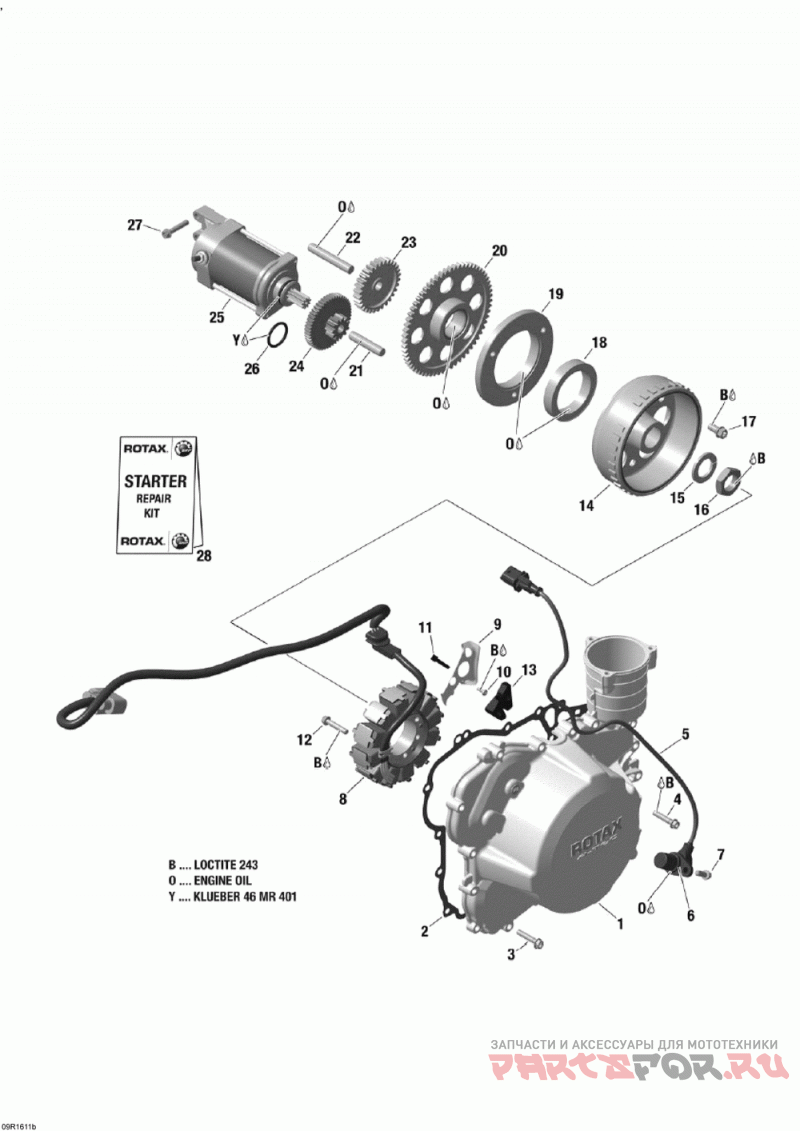

03 - Магнето, Электрический стартер - 1200 4-ТЕС

Ski-Doo (Bombardier) EXPEDITION -LE/ SE / - 4-STROKE

Ski-Doo (Bombardier)
#oem кодцена
1
420611833
Крышка
2
420430750
Joint Etanche *gasket Included In Gasket Kit
3
420440647
Flanged Torx Screw M6 X 30 Tightening Torque 11 Nm
4
420440647
Flanged Torx Screw M6 X 30 Tightening Torque 11 Nm
5
420966570
Crankshaft Position Sensor Ass Y Includes 5 To 6
6
420431580
Уплотнительное кольцо
7
420440162
Flanged Torx Screw M6 X 16 Tightening Torque 11 Nm
8
420892376
Stator Ass Y Includes 8 To 11
9
420951192
Держатель Кабеля
10
420640085
Torx Screw 3.5 X 8 Tightening Torque 4 Nm
11
420866717
Зажим
12
420440649
Flanged Torx Screw M6 X 30 Tightening Torque 11 Nm
13
420860052
Проставка
14
420892361
Маховик Магнето
15
420945759
Шайба - стопор (отпуск.по 10 шт)
16
420842239
Hex. Nut, M22 X 1.5 Tightening Torque 150 Nm
17
420440852
Flanged Torx Screw M8 X 16 Tightening Torque 25 Nm
18
420659113
Спрага Клатч
19
420659266
Housing Sprag Clutch
20
420434235
Free Wheel Gear, 64 Teeth
21
420229302
Штифт
22
420229475
Иглы Контактный
23
420634605
Gear, 30 Teeth
24
420634741
Double Gear
25
420893530
Starter Ass Y Includes 25 To 26
26
420250145
O-ring Included In Gasket Kit
27
420440647
Flanged Torx Screw M6 X 30 Tightening Torque 11 Nm
28
420881140
Carbon Brush Set
