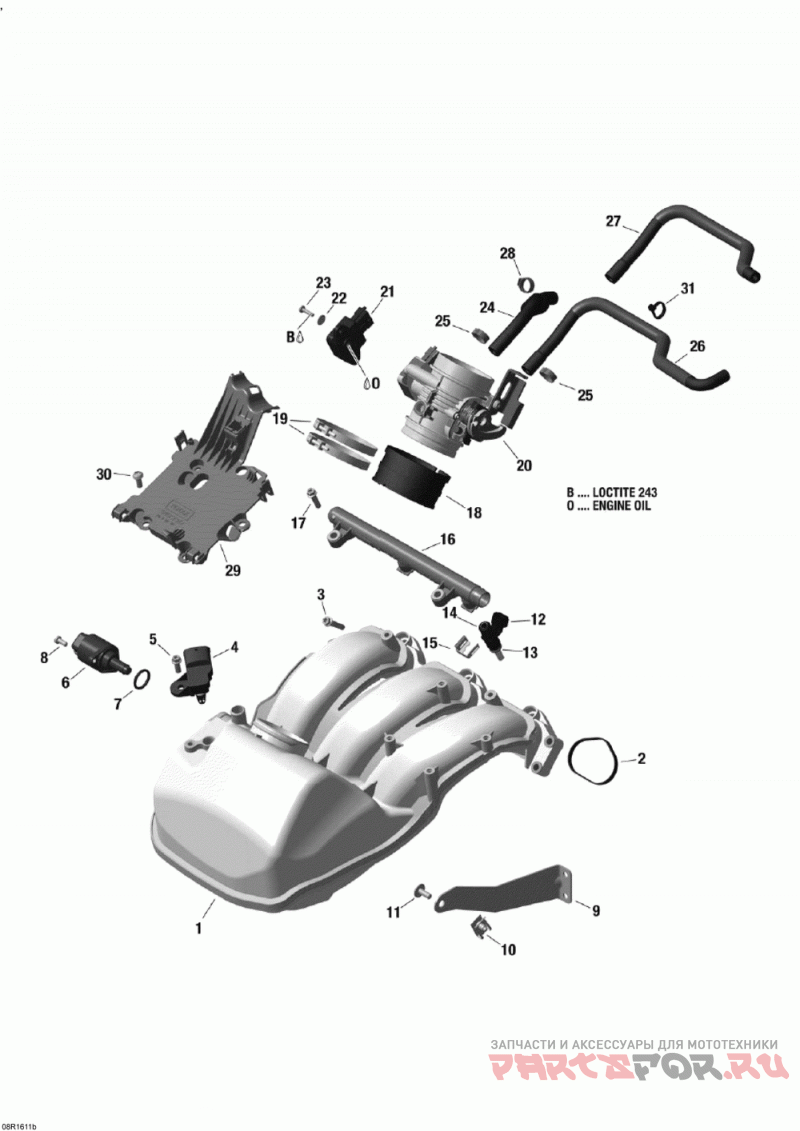

02 - впускной коллектор и корпус дроссельной заслонки - 1200 4-ТЕС

Ski-Doo (Bombardier) EXPEDITION -LE/ SE / - 4-STROKE

Ski-Doo (Bombardier)
#oem кодцена
1
420667440
Air Intake Manifold Includes 1 To 2
2
420950745
Joint Etanche *gasket Included In Gasket Kit
3
420440647
Flanged Torx Screw M6 X 30 Tightening Torque 11 Nm
4
707000995
Pressure And Temperature Sensor
5
420440162
Flanged Torx Screw M6 X 16 Tightening Torque 5, 5 Nm
6
420665940
Idle Bypass Valve
7
420631780
O-ring Included In Gasket Kit
8
420640081
Torx Screw M5 X 12 Tightening Torque 2, 5 Nm
9
420951011
Суппорт
10
420942108
Panel Nut M6 X 1
11
420241524
Torx Screw M6 X 16 Tightening Torque 11 Nm
12
420874830
Injection Valve Ass Y Includes 12 To 14
13
420431890
O-ring Included In Gasket Kit
14
420631220
O-ring Included In Gasket Kit
15
420853030
Зажим
16
420874810
Fuel Rail
17
420440234
Flanged Torx Screw M6 X 25 Tightening Torque 11 Nm
18
420460490
Flange *intake Neck
19
420251209
Зажим
20
420891905
Throttle Body Socket Ass Y Includes 20 To 23
21
420866120
Датчик Положения
22
234042600
Flat Washer 4 Mm, Stainless (5.000 Per Pack)
23
208641660
Phillips Screw M4 X 16 (10.000 Per Pack)
24
420460482
Boyau Forme*molded Hose
25
293650125
Хомут
26
420822662
Boyau Forme*molded Hose
27
420851458
Зажим
28
420910331
Опорная Пластина
29
420641588
Flanged Torx Screw M6 X 16 Tightening Torque 6 Nm
