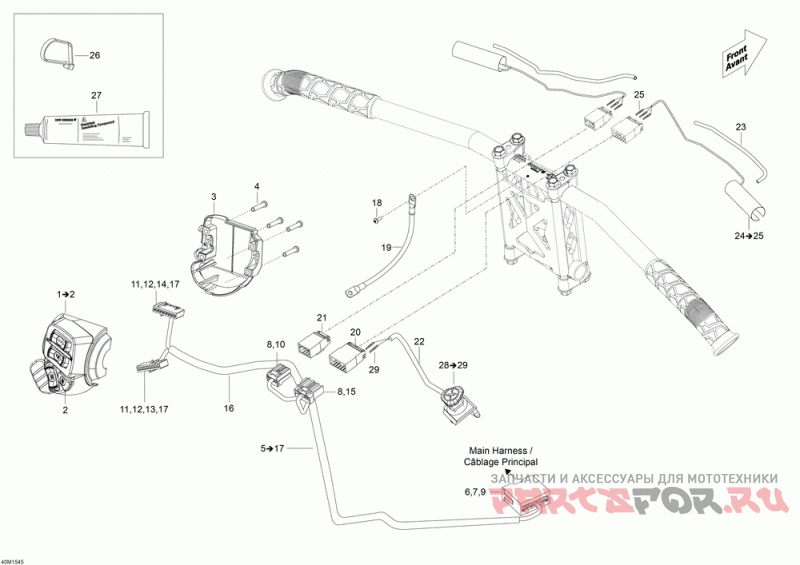

Жгут проводов

Ski-Doo (Bombardier) Tundra WT 550 RER

Ski-Doo (Bombardier)
#oem кодцена
1
515177021
Lh Housing Includes 1 To 2
2
515176088
Start/rer Button
3
515175926
Housing Switch Plate
4
250000263
Torx Screw #8-18 (10.000 Per Pack)
5
515176995
Steering Wiring Harness Ass Y Includes 5 To 17
6
515175232
Male Terminal (10.000 Per Pack)
7
515175273
Male Terminal (10.000 Per Pack)
8
515175231
Female Terminal (10.000 Per Pack)
9
515175352
Male Terminal Housing, 13 Circuits
10
515175543
Female Terminal Housing, 6 Circuits
11
515175808
Female Terminal (10.000 Per Pack)
12
515175809
Болт фиксатор
13
515175807
Female Terminal Housing 8 Circuits Black (5.000 Per Pack)
14
515175810
Female Terminal Housing, 8 Circuits
15
515175819
Female Terminal Housing, 8 Circuits
16
515175830
Low Temperature Tubing 1/2# (3.000 Per Pack)
17
515175941
Датчик Температуры
18
250000690
Pan Screw Forming, 7500c
19
515177668
Ground Cable
20
515175817
Male Terminal Housing, 8 Circuits
21
515175662
Male Terminal Housing, 6 Circuits
22
515175830
Low Temperature Tubing 1/2# (3.000 Per Pack)
23
515175830
Low Temperature Tubing 1/2# (3.000 Per Pack)
24
506152467
Heating Element Includes 24 To 25
25
515175232
Male Terminal (10.000 Per Pack)
26
414115200
Tie-rap 180 Mm (50.000 Per Pack)
28
515177362
Kill Switch Includes 28 To 29
29
515175232
Male Terminal (10.000 Per Pack)
