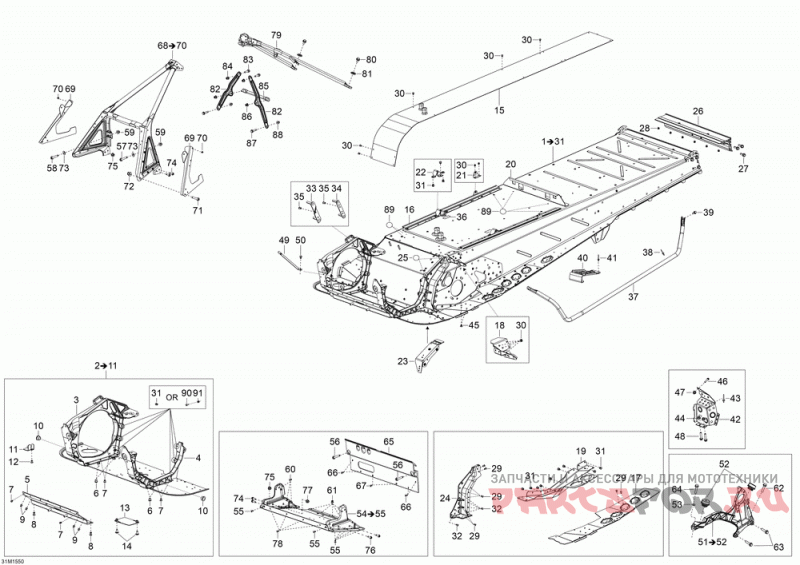

Рама

Ski-Doo (Bombardier) Skandic WT 600 ACE

Ski-Doo (Bombardier)
#oem кодцена
1
518328202
Frame Includes 1 To 31
2
518328188
Module E Includes 2 To 11
3
518326328
Rh Side Member
4
518326330
Lh Side Member
5
518326198
Член Фронта
6
605636002
Гайка М8
7
390909100
Группа Заклепки
8
293150120
Hemlock Rivet 6.5 Mm (4.000 Per Pack)
9
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
10
505072690
Leg Cushion
11
518327983
Поддержка Глушитель
12
293150163
Rivet Hucklok 4, 8 Mm Hklp-r6-5gat
13
518328317
Oil Plate
14
250000325
Torx Truss Screw M6 X 12 (4.000 Per Pack)
15
509000867
Радиатора Туннель
16
518326107
Крепежный Рельс
17
518326895
Footrest Lh
17
518326896
Footrest Rh
18
605355235
Крепежный Кронштейн
20
518325986
Battery Support Plate
21
518327457
Короб Сиденья Кронштейн
22
518326109
Support Tube Bracket Lh
22
518326110
Support Tube Bracket Rh
23
518326430
Clinch Nut Plate
24
518325524
Frame Corner Lh
24
518328024
Frame Corner Rh
25
518325560
Adhesive Patch
26
518327194
Rear Profile
27
207582586
Hex. Flanged Screw M8 X 25, Scotch Grip
28
293150174
Hemlock Rivet, 6.4 Mm (10.000 Per Pack)
29
390909100
Группа Заклепки
30
390909200
Группа Заклепки
31
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
32
293150183
Заклепка
33
518326123
Gearbox Front Plate
34
518326124
Gearbox Rear Plate
35
390402200
Pop Rivet 3/16" (50.000 Per Pack)
36
518326357
Rubber Cover
37
518326963
Footboard Support Tube, Lh
37
518326964
Footboard Support Tube, Rh
38
390909100
Группа Заклепки
39
207662056
Screw Hex. Flange M6 X 20
40
520000492
Footrest (2.000 Per Pack)
41
390909100
Группа Заклепки
42
518326671
Toe Hook Lh
42
518326672
Toe Hook Rh
43
390909200
Группа Заклепки
44
605636003
Clinch Nut M6 Hexsert
45
414644300
Dart (10.000 Per Pack)
46
207662056
Screw Hex. Flange M6 X 20
47
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
48
250000223
Torx Screw M6 X 16 (5.000 Per Pack)
49
514054828
Кронштейн
50
390909200
Группа Заклепки
51
518327535
Bretelle Ass *as Brace Includes 51 To 52
52
512060295
Резиновое Крепление
53
234281474
Conical Spring Washer M8 (10.000 Per Pack)
54
518326213
Module S *cross Member Includes 54 To 55
55
390909200
Группа Заклепки
56
210262080
Hex. Forming Screw M6 X 20 (10.000 Per Pack)
57
207662544
Hex. Flanged Screw M6 X 25 (25.000 Per Pack)
58
207662544
Hex. Flanged Screw M6 X 25 (25.000 Per Pack)
59
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
60
390909100
Группа Заклепки
61
390909200
Группа Заклепки
62
207582586
Hex. Flanged Screw M8 X 25, Scotch Grip
63
207583586
Hex. Flanged Screw M8 X 35, Scotch Grip (4.000 Per Pack)
64
207584044
Hex. Flanged Screw M8 X 40, Scotch Grip (10.000 Per Pack)
65
518326140
Engine Support
66
390909100
Группа Заклепки
67
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
68
518326754
Front Member Ass Y Model-europe, Includes 68 To 70
68
518327004
Front Member Assy Model-north America, Includes 68 To 70
69
502007077
Bumper Fastener Lh
69
502007078
Bumper Fastener Rh
70
390909200
Группа Заклепки
71
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
72
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
73
224061201
Flat Washer (10.000 Per Pack)
74
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
75
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
76
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
77
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
78
390909200
Группа Заклепки
79
518326103
Upper Support Tube Welded
80
207662056
Screw Hex. Flange M6 X 20
82
518326848
Upper Column Support
83
207662056
Screw Hex. Flange M6 X 20
84
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
85
518326355
Center Column Support
86
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
87
207662556
Винт М6 Х 25
88
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
89
518325560
Adhesive Patch
90
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
91
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
