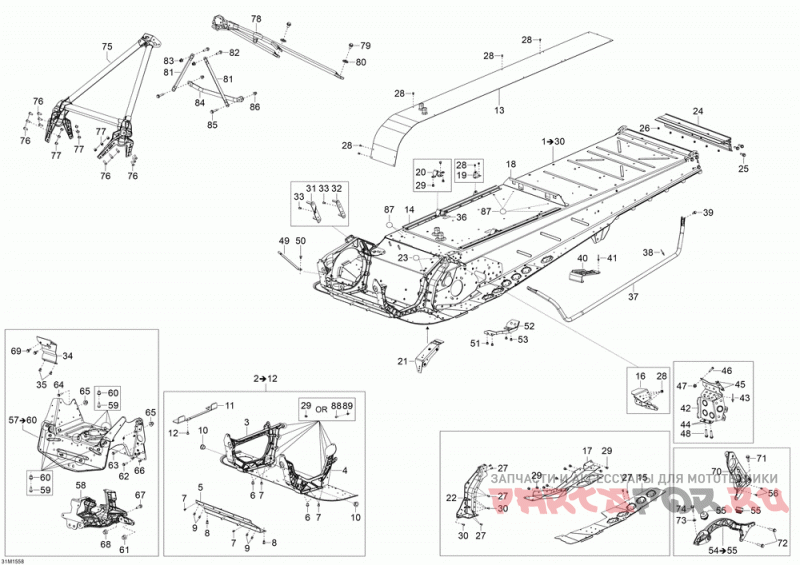

Рама

Ski-Doo (Bombardier) Expedition SE 1200

Ski-Doo (Bombardier)
#oem кодцена
1
518328204
Frame Includes 1 To 30
2
518328187
Module E Includes 2 To 12
3
518326328
Rh Side Member
4
518326330
Lh Side Member
5
518326198
Член Фронта
6
605636002
Гайка М8
7
390909100
Группа Заклепки
8
293150120
Hemlock Rivet 6.5 Mm (4.000 Per Pack)
9
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
10
505072690
Leg Cushion
11
518327448
Поддержка Глушитель
12
293150163
Rivet Hucklok 4, 8 Mm Hklp-r6-5gat
13
509000867
Радиатора Туннель
14
518326107
Крепежный Рельс
15
518326895
Footrest Lh
15
518326896
Footrest Rh
16
605355235
Крепежный Кронштейн
18
518325986
Battery Support Plate
19
518327457
Короб Сиденья Кронштейн
20
518326109
Support Tube Bracket Lh
20
518326110
Support Tube Bracket Rh
21
518326430
Clinch Nut Plate
22
518325524
Frame Corner Lh
22
518328024
Frame Corner Rh
23
518325560
Adhesive Patch
24
518327194
Rear Profile
25
207582586
Hex. Flanged Screw M8 X 25, Scotch Grip
26
293150174
Hemlock Rivet, 6.4 Mm (10.000 Per Pack)
27
390909100
Группа Заклепки
28
390909200
Группа Заклепки
29
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
30
293150183
Заклепка
31
518326123
Gearbox Front Plate
32
518326124
Gearbox Rear Plate
33
390402200
Pop Rivet 3/16" (50.000 Per Pack)
34
518325371
Mag Engine Support
35
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
36
518326357
Rubber Cover
37
518326963
Footboard Support Tube, Lh
37
518326964
Footboard Support Tube, Rh
38
390909100
Группа Заклепки
39
207662056
Screw Hex. Flange M6 X 20
40
520001208
Black Rear Footrest
41
293150102
Rivet-pop 3/16 *pop Rivet 3/16 (10.000 Per Pack)
42
518327375
Toe Hold L.h.
42
518327376
Toe Hold R.h.
43
390909200
Группа Заклепки
44
605636003
Clinch Nut M6 Hexsert
45
605636003
Clinch Nut M6 Hexsert
46
207662056
Screw Hex. Flange M6 X 20
47
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
48
250000223
Torx Screw M6 X 16 (5.000 Per Pack)
49
514054616
Кронштейн
50
390909100
Группа Заклепки
51
390909200
Группа Заклепки
52
518326566
Pulley Cover Plate Model-north America
53
293150104
Pop Rivet 3/16" Model-north America (25.000 Per Pack)
54
518327392
Brace Ass Y Includes 54 To 55
55
512060295
Резиновое Крепление
56
36087
Rivet 4.8x16 St. Zn(1=50pcs) (50.000 Per Pack)
57
518328395
Module S Includes 57 To 60
58
518327487
Front Suspension Support Included With 518328320 S Module
59
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
60
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
61
233281414
Гайка М8
62
210262080
Hex. Forming Screw M6 X 20 (10.000 Per Pack)
63
207662544
Hex. Flanged Screw M6 X 25 (25.000 Per Pack)
64
207662544
Hex. Flanged Screw M6 X 25 (25.000 Per Pack)
65
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
66
293150163
Rivet Hucklok 4, 8 Mm Hklp-r6-5gat
67
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
68
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
69
207661644
Hex. Flanged Screw M6 X 16 (25.000 Per Pack)
71
207582586
Hex. Flanged Screw M8 X 25, Scotch Grip
72
207583586
Hex. Flanged Screw M8 X 35, Scotch Grip (4.000 Per Pack)
73
234281474
Conical Spring Washer M8 (10.000 Per Pack)
74
207582586
Hex. Flanged Screw M8 X 25, Scotch Grip
75
518326970
Член Фронта
76
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
77
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
78
518326103
Upper Support Tube Welded
79
207662056
Screw Hex. Flange M6 X 20
81
518325114
Upper Column Support
82
207662056
Screw Hex. Flange M6 X 20
83
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
84
518326657
Center Column Support
85
207662556
Винт М6 Х 25
86
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
87
518325560
Adhesive Patch
88
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
89
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
