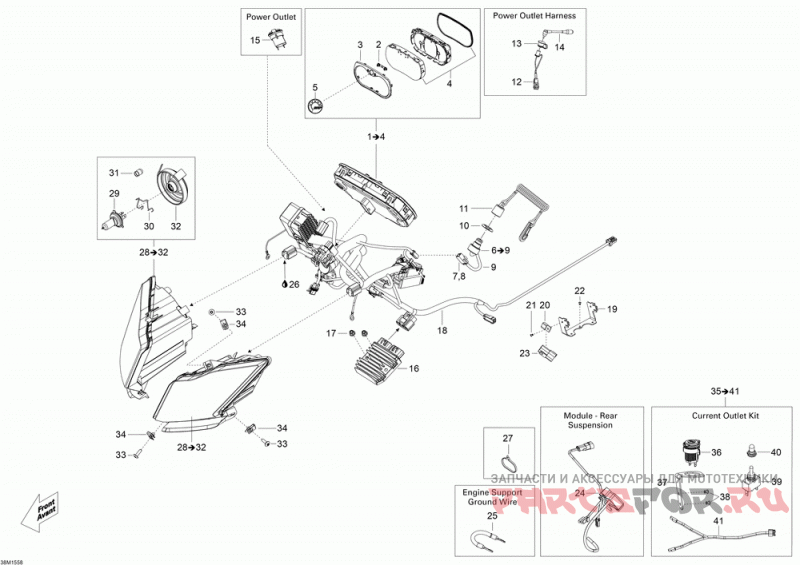

Электрика

Ski-Doo (Bombardier) Expedition SE 1200

Ski-Doo (Bombardier)
#oem кодцена
1
515177854
Speedometer Ass Y Includes 1 To 4
5
219902677
Logo Brp, 20 Mm
6
515177249
Dess Switch Includes 6 To 9
7
515175232
Male Terminal (10.000 Per Pack)
8
515175494
Male Housing, 3 Circuits (5.000 Per Pack)
9
409902000
Tubing 12 Mm
10
278002963
Safety Nut
11
515177057
Dess Cap
12
515177187
Visor Harness
13
572103300
Крышка
14
515175851
Rallonge *extension
15
710001248
Outlet Dc
16
515177325
Реле регулятора
17
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
18
515177689
Main Harness
19
515177073
Fusebox Support
20
270000141
Clip (5.000 Per Pack)
21
293150037
Avdel Rivet 3/16" (10.000 Per Pack)
22
390402200
Pop Rivet 3/16" (50.000 Per Pack)
23
515176234
Female Terminal Housing, 6 Circuits
24
515177125
Compressor Module
25
515176883
Ground Wire
27
414115200
Tie-rap 180 Mm (50.000 Per Pack)
27
293750001
Tie-rap 94 Mm (50.000 Per Pack)
27
293750002
Tie-rap 142 Mm (10.000 Per Pack)
28
517304194
Rh Headlamp Ass Y Includes 28 To 32
28
517304195
Lh Headlamp Ass Y Includes 28 To 32
29
515176274
Halogen Bulb, 60/55 W, 12 V
31
515176498
Крышка
32
515176499
Крышка
33
250000722
Torx Screw M6 X 20
34
250100113
Panel Nut, M6 X 1.0 (5.000 Per Pack)
35
860200285
Current Outlet Kit Includes 35 To 41
36
710001248
Outlet Dc
37
515176801
Current Outlet Bracket
38
36108
Rivet Steel 4.8x8 Zn Bright (1=50pcs) (50.000 Per Pack)
39
410110700
Heat Grip Switch
40
515175281
Switch Cover (4.000 Per Pack)
41
515176802
Harness
