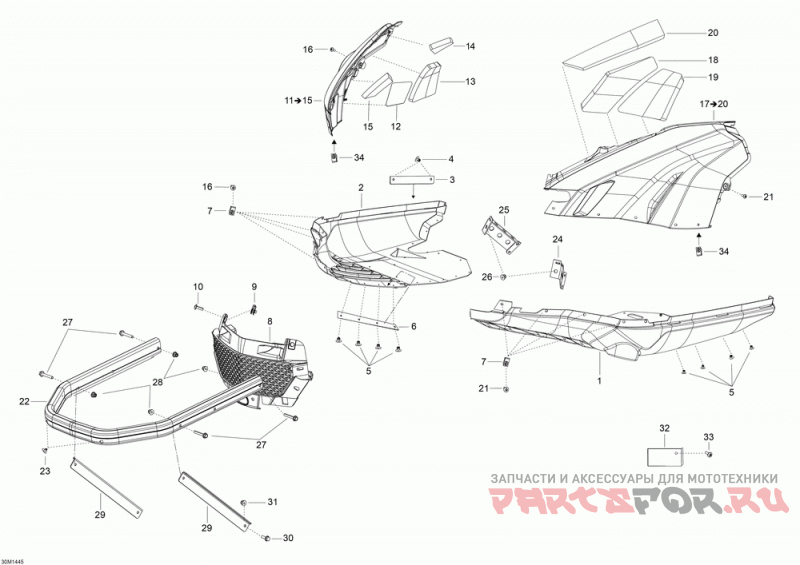

Защита и бампер

Ski-Doo (Bombardier) Skandic WT 600 ACE (4-strokes) XU

Ski-Doo (Bombardier)
#oem кодцена
1
502007046
Bottom-pan Lower Lh.
2
502006917
Bottom-pan Lower Rh.
3
502007255
Heat Insulation Plate
4
M36005
Rivet *rivet (25.000 Per Pack)
5
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
6
502007226
Опорная Плита
7
250100113
Extruded Panel Nut M6 X 1.0 (5.000 Per Pack)
8
502007140
Передняя решетка
9
250100113
Extruded Panel Nut M6 X 1.0 (5.000 Per Pack)
10
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
11
502007292
Bottom Pan, Rh Ass. B (includes 11 To 15 )
12
502007133
Изолятор
13
502007132
Изолятор
14
502007008
Изолятор
15
502007009
Изолятор
16
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
17
502007294
Bottom Pan, Lh Ass. B (includes 17 To 20 )
18
502007088
Изолятор
19
502007131
Изолятор
20
502007185
Изолятор
21
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
22
502007170
Амортизатор ударов
23
293730041
Dard 8 Mm *dart 8 Mm
24
502007137
Bottom Pan Fastener Lh
25
502007138
Bottom Pan Fastener Rh
26
605636003
Clinch Nut M6 Hexsert
27
207664044
Screw-hex.flange Din.6921 (5.000 Per Pack)
28
233261414
Nut-flange Elastic Din.6926 (10.000 Per Pack)
29
502006927
Bumper Support
30
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
31
233261414
Nut-flange Elastic Din.6926 (10.000 Per Pack)
32
502007186
Drain Hole Cover
33
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
34
250100113
Extruded Panel Nut M6 X 1.0 (5.000 Per Pack)
