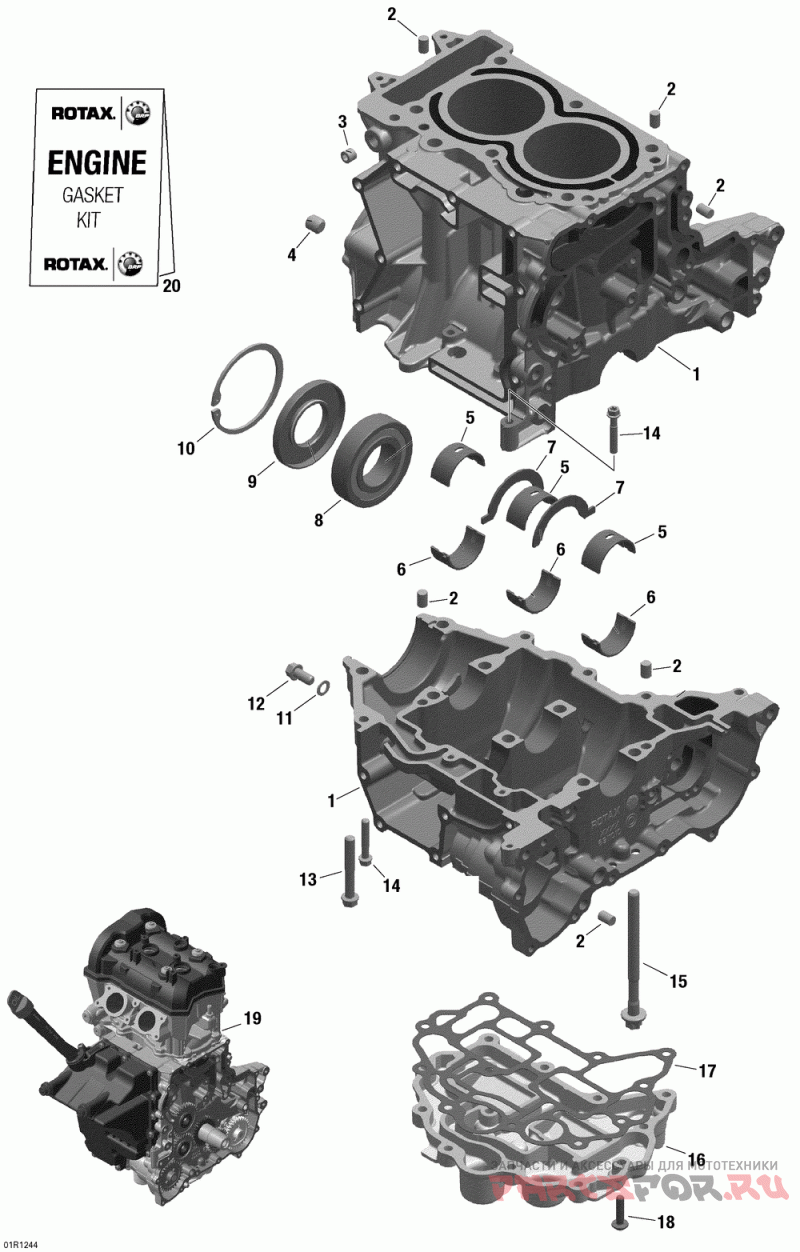

Блок двигателя для снегоходов Ski-Doo (Bombardier) Skandic SWT 600 ACE (4-strokes) (2012)

oem код

название

цена

Палец центровочный

Screw ( Tightening Torque 12nm +/- 12%)

Goupille *pin-threaded ( Tightening Torque 15nm +/- 12%)

Подушка

Подушка

Полукольцо

Подшипник

Anneau Etanche *seal-oil ( Included In Gasket Kit)

Anneau *retaining Ring

Bague Etanche *ring-sealing ( Included In Gasket Kit)

Vis Hexalob.epa*screw-torx Flange ( Tightening Torque 20nm +/- 12%)

Vis Hexalob.epa*torx Flange Screw ( Tightening Torque 23nm +/- 12%)

Screw Torx Flange M6 X 35 ( Tightening Torque 11nm +/- 12%)

Torx-reduced Shaft Screw M9x113 ( Tightening Torque 20nm +/- 12% +120)

Carter Huile*oil Sump

Прокладка

Torx-reduced Shaft Screw M6x25 ( Tightening Torque 14nm +/- 12%)

Moteur 602 Semi*block-long 602

Ensemble*gasket Kit 602

1-6

Carter Moteur *crankcase Assy (includes 1 To 6 )
