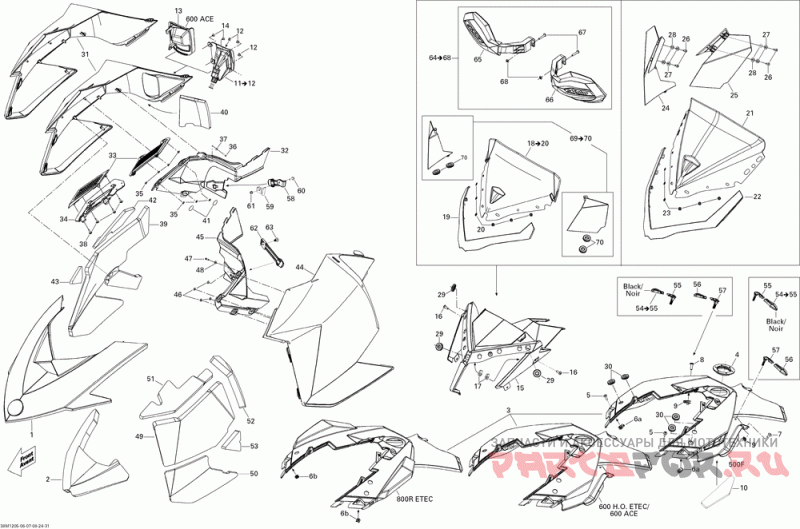

09- hood, windshield and console 800retec

Ski-Doo (Bombardier) Renegade Back Country X 800R ETEC XP

Ski-Doo (Bombardier)
#oem кодцена
1
517304530
Капот
2
517304913
Паролон
3
517304639
Консоль
4
517304518
Гайка
5
250000128
Винт Torx (отпуск.по 10 шт)
7
250000129
Винт Torx (отпуск.по 10 шт)
8
250000128
Винт Torx (отпуск.по 10 шт)
9
250100113
Гайка пружинная M6x1.0
11
517304322
Console Droite *console-rh (includes 11 To 12, Manual Starter )
12
275500241
Bouchon Bouton *plug-cap Fuel Valve (manual Starter )
14
250000113
Screw Plastite Type K-40 M4 X 16 (manual Starter )
15
517304575
Support Ind. *indicator Support (black-black Model )
15
517304579
Support Ind. *indicator Support (black-white Model )
16
250000128
Винт Torx (отпуск.по 10 шт)
17
250100113
Гайка пружинная M6x1.0
18
517304390
Pare-brise *windshield (includes 18 To 20 )
19
517303757
Суппорт
20
732610072
Гайка
29
517303756
Втулка
30
517303756
Втулка
31
517304422
Panneau Droit *rh.panel (manual Starter, Black-white Model )
31
517304029
Panneau Droit *rh.panel (manual Starter, Black-black Model )
31
517304419
Panneau Droit *rh.panel (electric Starter, Black-white Model )
31
517304210
Panneau Droit *rh.panel (electric Starter, Black-black Model )
32
517303671
Panneau Droit *rh.panel
33
517304763
Решетка
34
517304764
Решетка
35
732610072
Гайка
36
241141660
Винт K40 X 16
37
234042600
Шайба
38
250000113
Винт M4 X 16
39
517304883
Поролон
40
517304884
Поролон
41
518325560
Rondelle *adhesive Patch
44
517304030
Панель лев. (black-black Model )
44
517304426
Panneau Gauche *lh.panel (black-white Model )
45
517303673
Panneau Gauche *lh.panel
46
732610072
Гайка
47
241141660
Винт K40 X 16
48
234042600
Шайба
49
517304887
Поролон
50
517304888
Поролон
51
517304889
Поролон
52
517304890
Поролон
53
517304891
Поролон
54
860200239
Embout Loquet *latch (includes 54 To 55, Black-black Model )
55
517303981
Loquet Panneau *latch-panel (black-black Model )
56
517304435
Embout *end Piece (black-white Model )
57
517303981
Loquet Panneau *latch-panel (black-white Model )
58
517303612
Защелка панели
59
517304221
Суппорт защелки
60
207652044
Винт
61
233251414
Гайка
62
517303808
Защелка панели
63
250000128
Винт Torx (отпуск.по 10 шт)
64
860200712
Deflecteur Air *wind Deflector (includes 64 To 68, Black-black Model )
64
860200711
Deflecteur Air *wind Deflector (includes 64 To 68, Black-white Model )
65
517305039
Deflecteur Dr. *rh.deflector (black-black Model )
65
517305045
Deflecteur Dr. *rh.deflector (black-white Model )
66
517305040
Deflecteur Ga. *lh.deflector (black-black Model )
66
517305046
Deflecteur Ga. *lh.deflector (black-white Model )
67
250000501
Phil-truss M/s M6 X 35
68
250000498
Nut-square M6 Din.557
69
860200498
Deflecteur Air *air Deflector (includes 60 To 70 )
6b
732610057
Jack-nut M6
