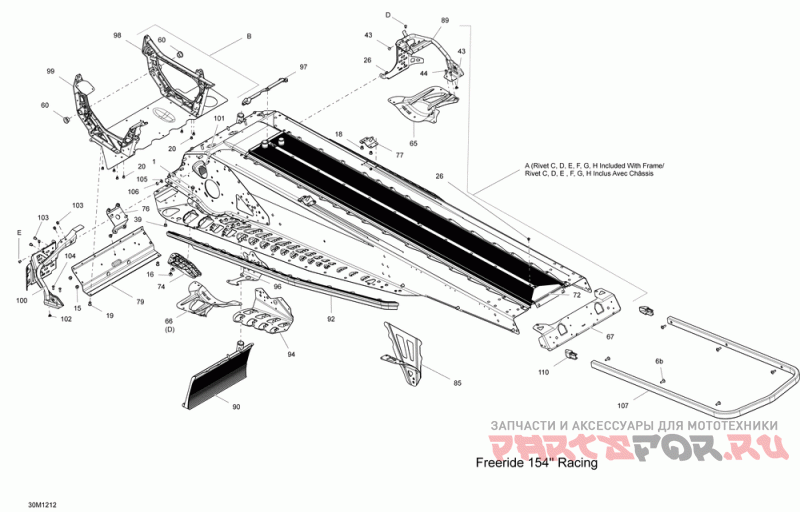

Рама

Ski-Doo (Bombardier) Freeride 154 800R E-TEC (Racing)

Ski-Doo (Bombardier)
#oem кодцена
1
207561244
Винт
2
232561414
Гайка с тефлоном
A
415129638
Chassis *frame
B
518326843
Module E *module E
C
390909200
Заклепка
D
390909100
Заклепка
E
293150144
Rivet Stavex *stavex Rivet
F
293150146
Rivet Henrob *henrob Rivet
G
293150096
Заклепка
H
293150191
Monobolt 4.8 *monobolt 4.8
15
293150119
Заклепка
16
293150104
Заклепка 3/16
18
293150119
Заклепка
19
293150120
Rivet Hemlock *rivet-hemlock 6.5mm
20
293150144
Rivet Stavex *stavex Rivet
26
293150144
Rivet Stavex *stavex Rivet
39
293150174
Rivet Hemlock *hemlock Rivet
43
293730042
Dard 5-6 *dart 5-6
44
390407200
Заклепка 3/16
60
505072690
Изолирующая втулка
65
518324874
Renfort Dr *reinforcement
66
518324875
Renfort Ga *reinforcement
67
518325421
Capuchon *rear Cap
6b
250000402
Torx-truss M/s Gm6047m N.patch M6 X 18
72
518326692
Radiateur Arr.s*rear Rad. Weld
74
518325782
Deflecteur Dr. *rh Deflector
74
518325783
Deflecteur Ga. *lh Deflector
76
518325943
Support Mag *mag Support
77
518325973
Embase Arrire *rear Base
77
518325974
Embase Arrire *rear Base
79
518326198
Traverse Avant *front Member
85
518326621
Attache Dr *rh Support
85
518326622
Attache Ga *lh Support
89
518326216
Etrier Droit *rh.stirup
90
518326485
Radiateur Avant*front Radiator
92
518326601
Rouleau Droit *roller-rh
92
518326602
Rouleau *roller-lh
94
860200522
Renfort Chassis*chassis Kit
96
518326616
Attache Droite *rh Retainer
96
518326617
Attache Gauche *lh.support
97
518326656
Уплотнение
98
518326795
Longeron Dr *rh Member
99
518326796
Longeron Ga *lh Member
100
518326239
Etrier Ga *lh.stirup
101
250000248
Винт
102
293730042
Dard 5-6 *dart 5-6
103
293450268
Вставка
104
293150194
Заклепка
105
250200039
Шайба
106
232561414
Гайка с тефлоном
107
518326049
Pare-chocs *rear Bumper
110
520000840
Крышка
