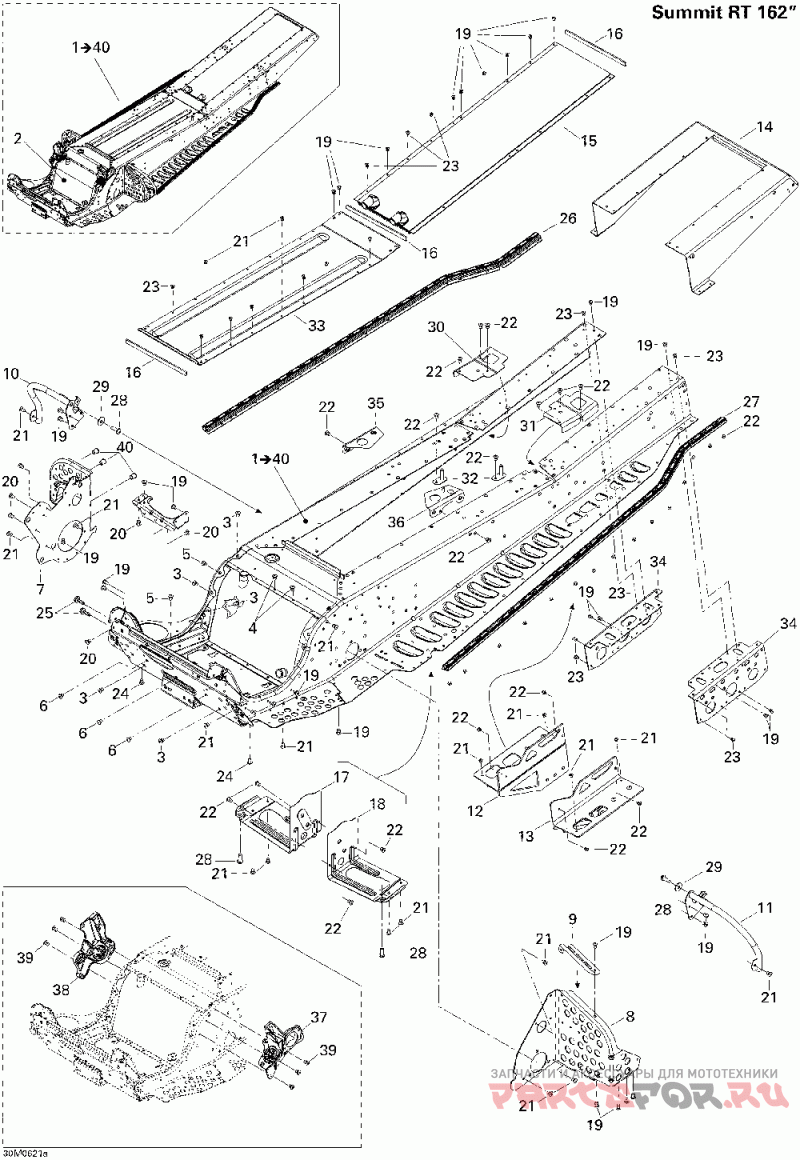

09- frame rt 162

Ski-Doo (Bombardier) Summit 1000 SDI, Highmark & Highmark X

Ski-Doo (Bombardier)
#oem кодцена
1
415129139
Chassis *frame Service (includes 1 To 40 )
1
415129148
Chassis *frame Service (x / Includes 1 To 40 )
3
390909200
Заклепка
4
390909100
Заклепка
5
390402200
Заклепка 3/16
6
390402300
Заклепка 3/16
9
518323105
Пластина
10
518324098
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
11
518324097
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
12
518324157
Attache Droite *rh.bracket
13
518324154
Кронштейн левый
14
518324911
Capuchon *rear Cap
14
518325007
Capuchon *rear Cap (x )
15
518324850
Radiateur Arr.s*rear Rad. Weld.
16
293200097
Прокладка
17
518323952
Marche-pied Dr.*footrest-rh
18
518323954
Marche-pied Ga.*footrest-lh
22
390402400
Заклепка 3/16
24
390910300
Rivet Henrob *rivet-henrob
25
207582544
Винт
26
518324978
Rouleau Droit *roller-rh
27
518324979
Rouleau *roller-lh
28
205982086
Screw-socket Bn.hd.s.grip Iso.7380
29
234082410
Шайба
30
518324431
Renf.tunnel Dr.*reinf-frame Rh
31
518324432
Renf.tunnel Ga.*reinf-frame Lh
32
518322791
Att.reserv.so. *brkt-tank Weld
33
518323804
Plaque Centrale*center Plate
34
518324991
Renf.arriere Ga*l.h.rear Plate
35
518324385
Renfort Tunnel *frame Form. Reinf.
36
518324386
Renfort Tunnel *frame Form. Reinf.
37
518323715
Support Moteur *engine Support
38
518323716
Support Moteur *engine Support
39
293150120
Rivet Hemlock *rivet-hemlock 6.5mm
40
415107300
Вставка
19
390909200
Заклепка
20
390909100
Заклепка
21
390402200
Заклепка 3/16
