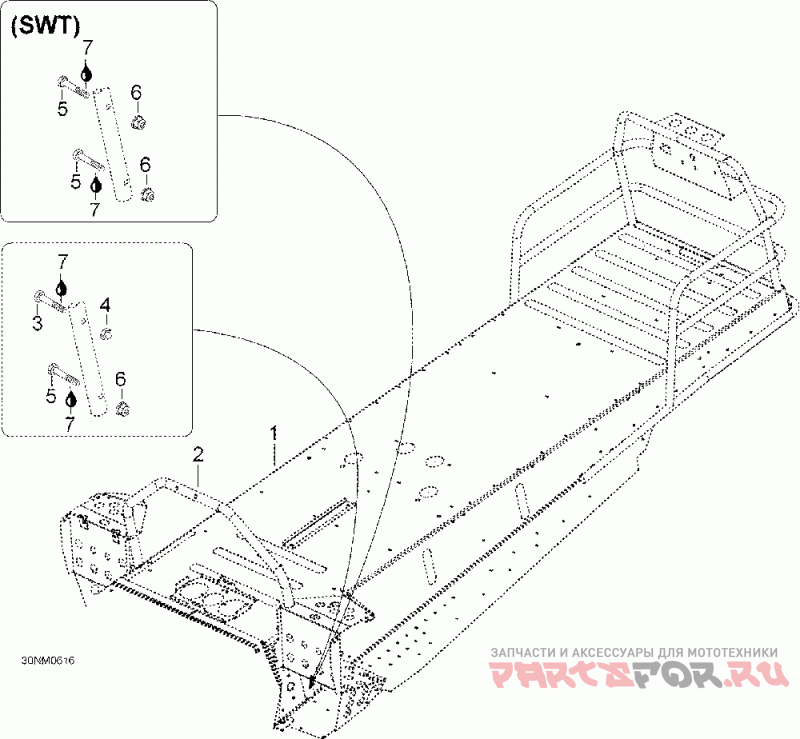

09- frame 550 wt
Ski-Doo (Bombardier) Skandic 550F WT
| # | oem код | название | цена |
|---|---|---|---|
1 | 605153405 Chassis *frame Assy Fc (includes 1 To 6, Wt 550 ) | Chassis *frame Assy Fc (includes 1 To 6, Wt 550 ) | |
2 | 605150258 Support Guidon *support Handle (wt 550/wt600 ) | Support Guidon *support Handle (wt 550/wt600 ) | |
3 | 207063044 Screw-hex.cap Din.931 (wt 550/wt600 ) | Screw-hex.cap Din.931 (wt 550/wt600 ) | |
5 | 207064044 Screw-hex.cap Din.931 (wt 550/wt600 ) | Screw-hex.cap Din.931 (wt 550/wt600 ) | |
6 | M33200 Flange Nut M6 (wt 550/wt600 ) | Flange Nut M6 (wt 550/wt600 ) | |
7 | 293800060 Фиксатор резьбы loctite-243 | Фиксатор резьбы loctite-243 | |
6 | 233261414 Nut-flange Elastic Din.6926 (wt 550/wt600 ) | Nut-flange Elastic Din.6926 (wt 550/wt600 ) |
