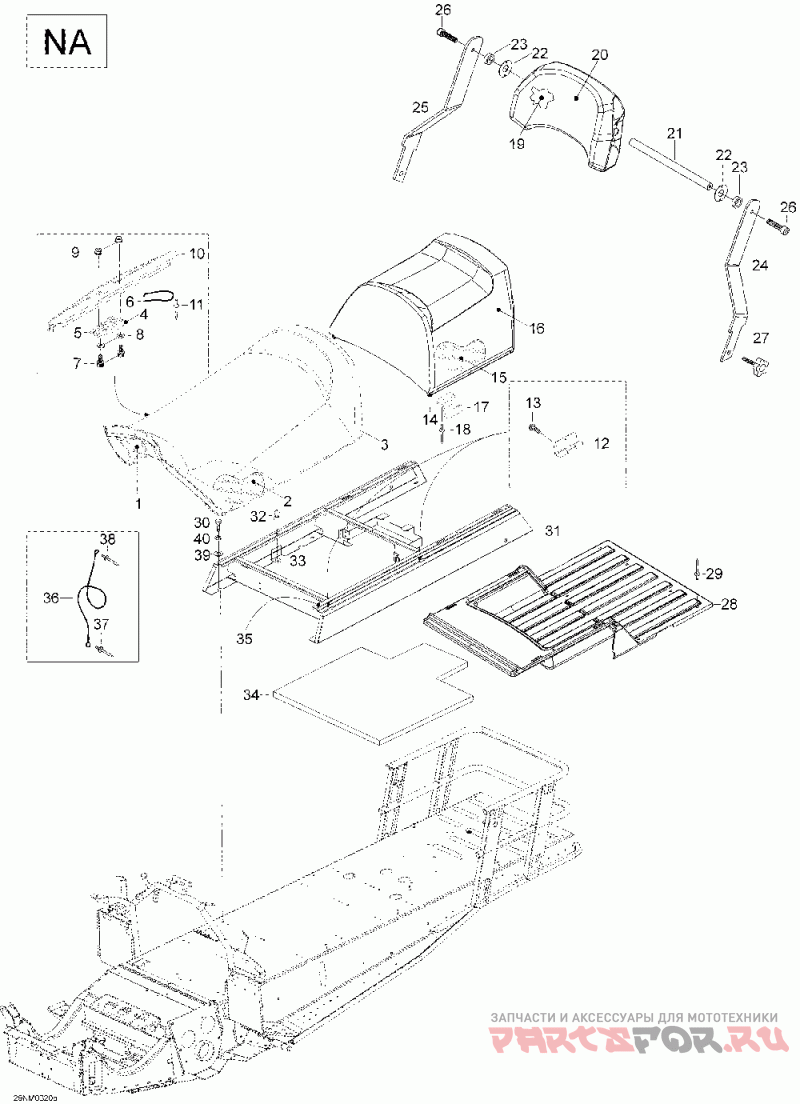

Сидение 1

Ski-Doo (Bombardier) Expedition 600 HO SDI

Ski-Doo (Bombardier)
#oem кодцена
1
605251388
Sous Siege Ava.*front Seat Base
2
605251389
Mousse Siege *front Foam Seat
3
605251422
Housse Siege *seat Cover Front
4
269700076
Couv.loquet *cover-latch
5
269700077
Levier Loquet *lever-latch
6
269700017
Ressort Loquet *spring-latch
7
M40276
Allen Screw M6 X 25din 912m8.8zne
8
234061410
Шайба
9
232561414
Гайка с тефлоном
10
605352483
Plaque Sup. *support Plate
11
M36088
Заклепка
12
605351798
Charniere *hinge Plate Assy
13
M40890
Винт
14
605251390
Sous Siege Ar. *rear Seat Base
15
605251391
Mousse Siege Ar*rear Seat Foam
16
605251425
Housse Siege *seat Cover
17
605351808
Verrou *locking Plate L.h
17
605352007
Verrou *locking Plate R.h
18
M36087
Заклепка
19
510004365
Mousse De Doss.*foam-backrest
20
605353881
Housse Dossier *backrest Cover
21
510004377
Axe Dos. Sup. *axle-backrest
22
510004379
Шайба
23
510004378
Втулка резиновая
24
605353779
Bras Ga *side Support Lh
25
605353963
Bras Dr. *side Support Rh
26
205982586
Screw-socket Bn.hd.s.grip Iso.7380
27
510003533
Poignee Male *handle-male
28
605151397
Couvercle *tunnel Cover
29
M36036
Заклепка
30
207161644
Винт
31
605252651
Base De Siege *seat Box Weld
32
605452035
Axe De Blocage *lock Pin
34
605352460
Поролон
35
M28413
Baguette Etan. *sealing Strip
36
M546777
Cable Retenue *cable-retainer
37
M36037
Заклепка
38
M36489
Заклепка
39
M20009
Шайба
40
234161471
Шайба
11
36088
Rivet Avibulb 4.8x8.8 Zn(1=25pcs)
33
232561414
Гайка с тефлоном
