Сиденье

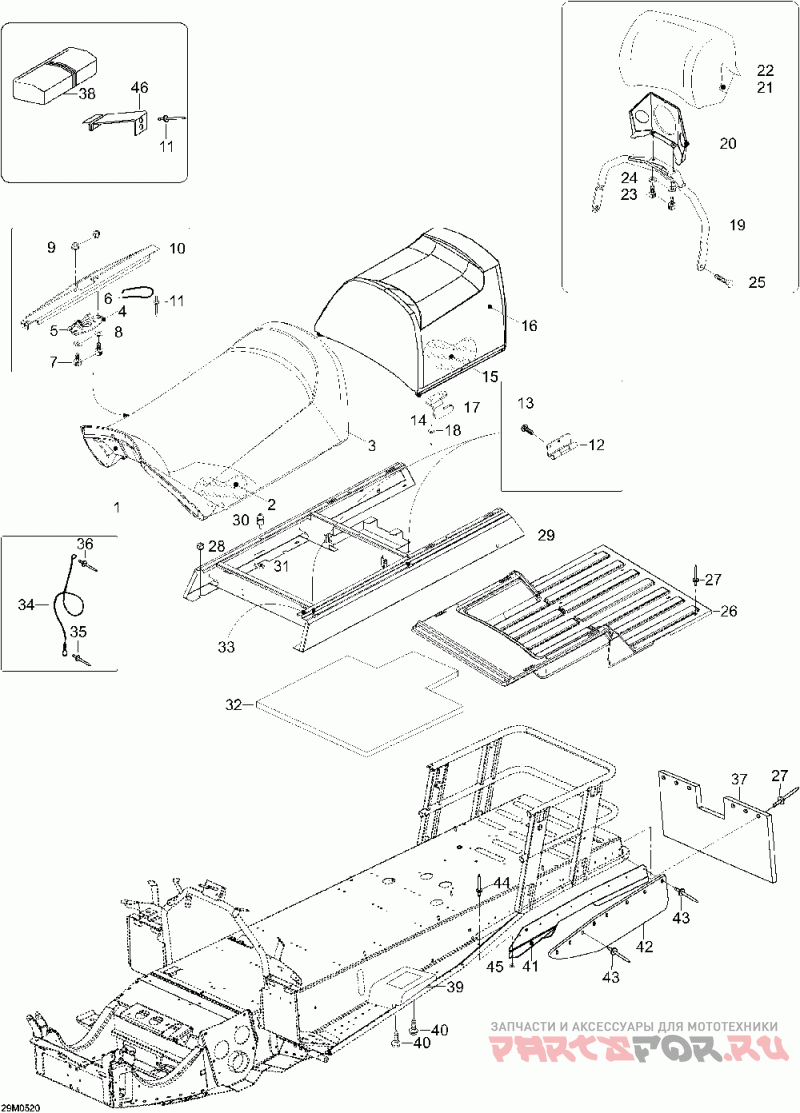

Ski-Doo (Bombardier) Expedition 600 HO SDI

Ski-Doo (Bombardier)
#oem кодцена
1
605251388
Sous Siege Ava.*front Seat Base
2
605251389
Mousse Siege *front Foam Seat
3
605251422
Housse Siege *seat Cover Front
4
269700076
Couv.loquet *cover-latch
5
269700077
Levier Loquet *lever-latch
6
269700017
Ressort Loquet *spring-latch
7
M40276
Allen Screw M6 X 25din 912m8.8zne
8
234061410
Шайба
9
232561414
Гайка с тефлоном
10
605352483
Plaque Sup. *support Plate
11
M36083
Заклепка
12
605351798
Charniere *hinge Plate Assy
13
M40890
Винт
14
605251390
Sous Siege Ar. *rear Seat Base
15
605251391
Mousse Siege Ar*rear Seat Foam
16
605251425
Housse Siege *seat Cover
17
605351808
Verrou *locking Plate L.h
17
605352007
Verrou *locking Plate R.h
18
M36087
Заклепка
19
605251730
Dossier *backrest Weld
20
605252096
Support Dossier*backrest Support Plate
21
605252104
Mousse Dossier *backrest Foam
22
605251431
Housse Dossier *backrest Cover
23
M40066
Винт
24
234181401
Шайба
25
M40337
Винт
26
605151397
Couvercle *tunnel Cover
27
M36036
Заклепка
28
M33200
Гайка M6
29
605252651
Base De Siege *seat Box Weld
30
605452035
Axe De Blocage *lock Pin
32
605352460
Поролон
33
M28413
Baguette Etan. *sealing Strip
34
M546777
Cable Retenue *cable-retainer
35
M36037
Заклепка
36
M36489
Заклепка
37
M538629
Garde-neige *guard-snow
38
605352219
Coffre Outils *tool Kit Yeti -04
39
414975300
Rep.pied Arr.dr*footrest-rr.rh
39
414975400
Rep.pied Arr.ga*footrest-rr.lh
40
M40870
Screw-hex.taping
41
605251249
Support Dr. *side Snow Guard Guide Rh
41
605251248
Support Ga. *side Snow Guard Guide Lh
42
M5142828
Garde-neige *guard-snow
43
M36097
Заклепка
44
M36005
Заклепка
45
M20008
Шайба
46
M5346728
Plaque Ressort *plate Psring
11
M36108
Заклепка
28
233261414
Гайка
31
232561414
Гайка с тефлоном
