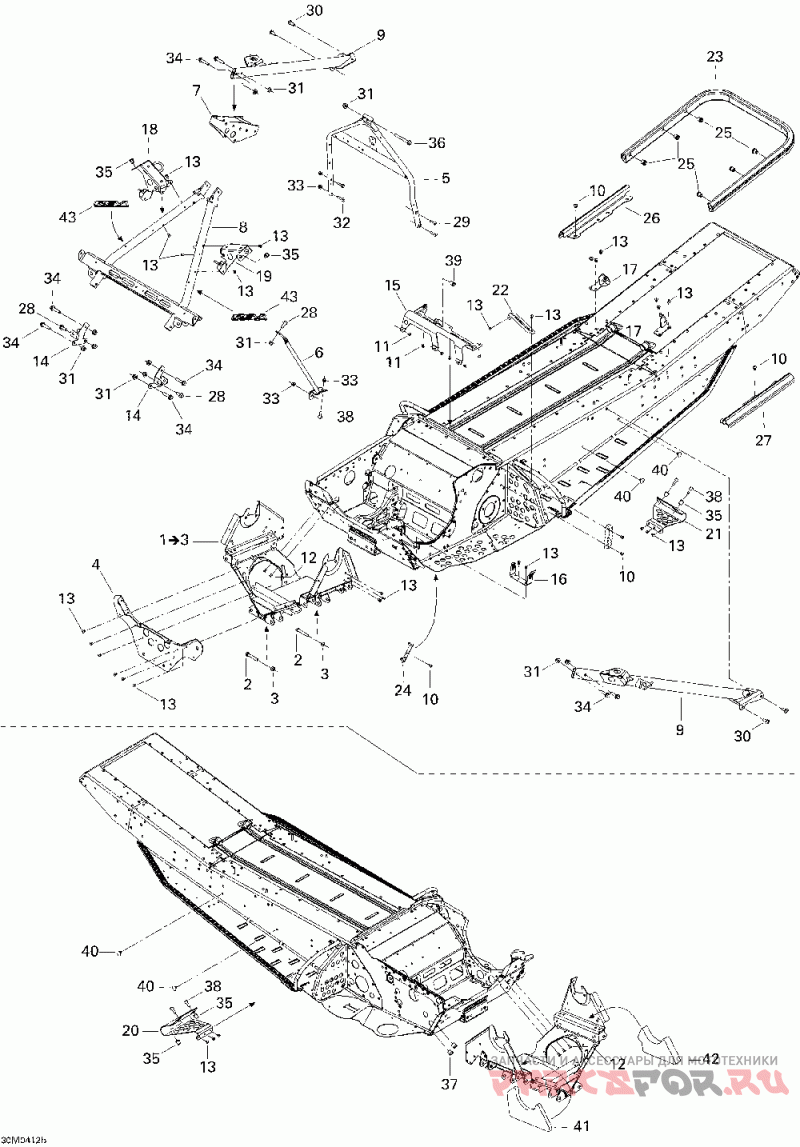

09- frame 1

Ski-Doo (Bombardier) Summit 800 HO

Ski-Doo (Bombardier)
#oem кодцена
1
518325423
Traverse *cross Member Includes Items 1 To 3
2
207085044
Винт
3
232581414
Гайка с тефлоном
4
518325422
Plaque Avant *plate-front
5
518323979
Supp.guidon Sou*handle Support Weld.
6
518323472
Croisillon Soud*brace-weld
7
518323854
Bloc Attache *block-bracket
8
518324739
Traverse *upper Cross
9
518323352
Membrure Dr.sou*member-rh Weld.
518323354
Membrure Ga.sou*member-lh Weld.
10
390402200
Заклепка 3/16
11
390402400
Заклепка 3/16
12
390909100
Заклепка
13
390909200
Заклепка
14
518322461
Attache Amorti.*bracket-shock Rh
518322462
Attache Amorti.*bracket-shock Lh
15
518323532
Supp.silenc.adm*sup-intake Air
16
518322726
Attache Gard.co*brkt-guard Belt
17
518323769
Attache Droite *rh.bracket
518323770
Кронштейн левый
18
518323535
Supp.console D*support-console Rh
19
518322962
Supp.console G *support-console Lh
20
518324391
Accroche Pied D*toe Hold Rh
21
518324392
Accroche-pied G*toe-hold Lh
22
518323105
Пластина
23
518325218
Pare-choc *rear Bumper Canada / U.s.a.
518324077
Pare-chocs *bumper X Europe
518323836
Pare-chocs *rear Bumper Hm Xtreme
24
518323896
Attache Coffre *bracket Trunk
25
236282084
Screw-pan Hd.torx Black Gm6174m
26
518323901
Protect. Fil Ga*wire Protector Adrenaline
518325043
Protect. Fil Ga*wire Protector Highmark X
27
518323902
Protect. Fil *wire Protector Adrenaline
518325044
Protect. Fil *wire Protector Highmark X
28
207682044
Винт
29
205862044
Screw-socket Ctsk.din.7991 S.grip
30
250000154
Screw-pan Hd.torx M8 X 13
31
233281414
Гайка
32
207662544
Винт
33
233261414
Гайка
34
207683544
Винт
35
415107300
Вставка
36
207687044
Винт
37
293450166
Вставка
38
207662044
Винт
39
293450232
Вставка
40
518321954
Attache Panneau*panel-fastener
41
518323453
Поролон
42
518323007
Поролон
43
516001725
Decal.chassis *frame Decal
