09- frame and seat (2 up) для снегоходов Ski-Doo (Bombardier) Skandic 550F WT/SWT (2004)

Москва и регионы России

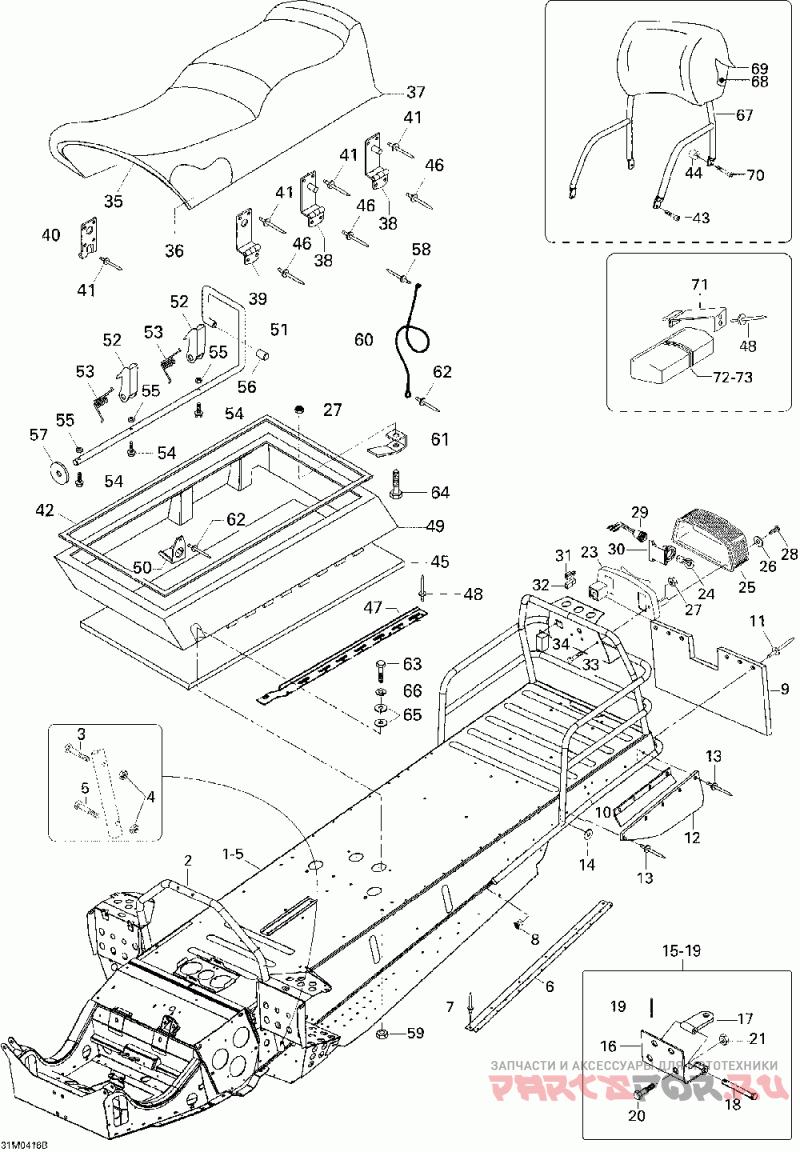

09- frame and seat (2 up)

Ski-Doo (Bombardier) Skandic 550F WT/SWT

09- frame and seat (2 up)

#

oem код

название

цена

1

Chassis *frame Assy Fc Wt Includes Items 1 To 5

Chassis *frame Assy Fc Wt Includes Items 1 To 5

1

Chassis *frame Assy Lc Wtlc Includes Items 1 To 5

Chassis *frame Assy Lc Wtlc Includes Items 1 To 5

2

Support Guidon *support Handle

Support Guidon *support Handle

3

Винт

Винт

5

Винт

Винт

6

Bande Anti-der*antislip Running Board Wtlc

Bande Anti-der*antislip Running Board Wtlc

8

Крышка

Крышка

9

Garde-neige *guard-snow

Garde-neige *guard-snow

10

Суппорт

Суппорт

11

Заклепка

Заклепка

12

Garde-neige *guard-snow

Garde-neige *guard-snow

13

Заклепка

Заклепка

14

Шайба

Шайба

16

Пластина

Пластина

17

Буксировочная пластина

Буксировочная пластина

18

Goup.retenue *pin-retainer

Goup.retenue *pin-retainer

19

Cheville *pin

Cheville *pin

20

Винт

Винт

21

Гайка с тефлоном

Гайка с тефлоном

23

Boitier Lumiere*housing-20/18

Boitier Lumiere*housing-20/18

24

Лампа

Лампа

25

Стекло фонаря

Стекло фонаря

26

Шайба

Шайба

27

Гайка M6

Гайка M6

28

Винт

Винт

29

Support D Ampou*bulb Support

Support D Ampou*bulb Support

30

Raccord *socket

Raccord *socket

31

Клемма-"mama"

Клемма-"mama"

32

Корпус клеммы -Мама

Корпус клеммы -Мама

34

Adaptateur *adaptor

Adaptateur *adaptor

35

Sous-siege *sub-seat

Sous-siege *sub-seat

36

Mousse *seat Foam Yeti -04

Mousse *seat Foam Yeti -04

37

Housse Siege *seat Cover St/ Ski-doowt

Housse Siege *seat Cover St/ Ski-doowt

38

Петля

Петля

39

Петля

Петля

40

Plaquet *lock Plate

Plaquet *lock Plate

41

Rivet Bulbex *rivet-bulbex

Rivet Bulbex *rivet-bulbex

42

Joint *sealing Strip Profil

Joint *sealing Strip Profil

43

Screw-socket

Screw-socket

44

Втулка

Втулка

45

Mousse *foam Wt

Mousse *foam Wt

45

Mousse *foam Wtlc

Mousse *foam Wtlc

46

Заклепка

Заклепка

47

Суппорт правый

Суппорт правый

47

Суппорт левый

Суппорт левый

47

Rivet *rivet Wtlc

Rivet *rivet Wtlc

48

Base Siege Soud*base-seat Weld. Wtlc

Base Siege Soud*base-seat Weld. Wtlc

49

Support *support Wtlc

Support *support Wtlc

50

Axe Pivotement *pin-pivot Wtlc

Axe Pivotement *pin-pivot Wtlc

51

Verrou *lock-tonque Wtlc

Verrou *lock-tonque Wtlc

52

Ressort *spring Wtlc

Ressort *spring Wtlc

53

Screw M4x16 Wtlc

Screw M4x16 Wtlc

54

Nut-stop Elastic Din.985 Wtlc

Nut-stop Elastic Din.985 Wtlc

55

Bouchon *cap Wtlc

Bouchon *cap Wtlc

57

Шайба

Шайба

59

Nut M6

Nut M6

60

Cable Retenue *cable-retainer Wt

Cable Retenue *cable-retainer Wt

60

Cable Retenue *cable-retainer Wtlc

Cable Retenue *cable-retainer Wtlc

61

Garde De Cable *cable Keeper

Garde De Cable *cable Keeper

62

Заклепка

Заклепка

63

Screw-socket Hd.

Screw-socket Hd.

64

Screw M6x30 Wt

Screw M6x30 Wt

65

Шайба

Шайба

66

Шайба

Шайба

67

Dossier *backrest-pipe

Dossier *backrest-pipe

68

Mousse Dossier *foam-backrest

Mousse Dossier *foam-backrest

69

Housse Dossier *cover-backrest

Housse Dossier *cover-backrest

70

Screw-socket

Screw-socket

71

Ressort *spring-holder

Ressort *spring-holder

72

Trousse Outils *tool Kit Includes Items 72 To 73

Trousse Outils *tool Kit Includes Items 72 To 73

73

Инструмент

Инструмент

47

Rivet *rivet Wtlc

Rivet *rivet Wtlc
