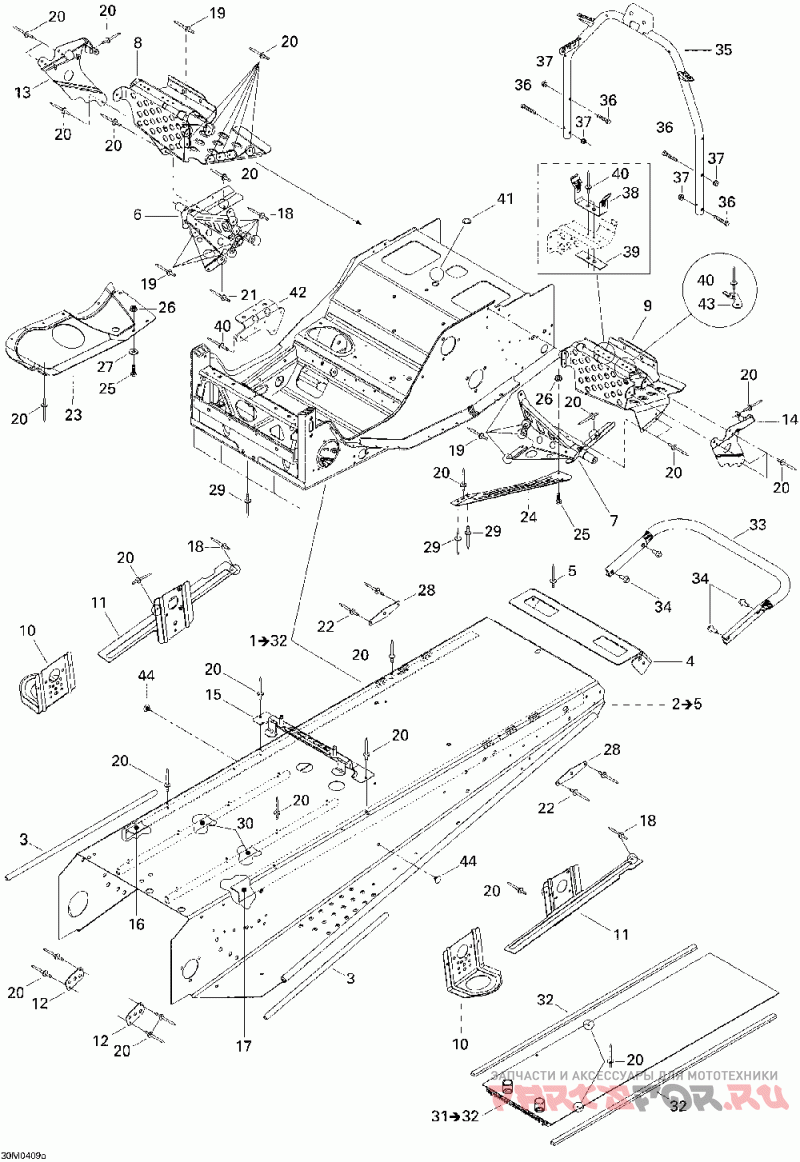

09- frame (2 passengers seat)

Ski-Doo (Bombardier) Legend V-1000

Ski-Doo (Bombardier)
#oem кодцена
1
415128576
Chassis *frame Service Includes 1 To 32 / 2 Passenger Seat
2
415128615
Tunnel Forme *frame-forming Includes 2 To 5
3
518304746
Renf.marche-pie*reinf.-foot.
4
518321303
Capuchon Arr. *cap-rear
5
390402200
Заклепка 3/16
6
518320506
Support Droit *rh.support
7
518320507
Support Gauche *lh.support
8
518323563
Repose-pied Dr.*rh.footrest
9
518323564
Repose-pied Ga.*lh.footrest
10
518321495
Attache Avant *bracket-front
11
518323051
Att.arr.dr.p. *brkt-rr Rh Paint
518323055
Att.arr.ga.p. *brkt-rr Lh Paint
12
518201321
Plaque Renfort *plate-reinf.
13
518321305
Renf.rep.-pi.dr*reinf.-footrest Rh
14
518321307
Renf.rep.-pi.ga*reinf.-footrest Lh
15
518321510
Att.reserv.p. *brkt-tank Paint
16
518323190
Renfort *reinforcement
17
518323191
Renfort *reinforcement
18
390909200
Заклепка
19
390909100
Заклепка
21
390402300
Заклепка 3/16
22
390402400
Заклепка 3/16
23
518322636
0laque Coque Dr*plate-pan Bott.rh
24
518322119
Plaque Renf.ga.*plate-reinf.lh
25
207152044
Винт
26
233251414
Гайка
27
391301700
Шайба
28
518316767
Renfort Arriere*reinf.-rear
29
390910300
Rivet Henrob *rivet-henrob
30
518321543
Protect. Tunnel*protect.-frame
31
518322905
Radiateur Arr.s*rad.-rear Weld. Includes 31 To 32
32
518321656
Защита
33
517272510
Pare-chocs Arr.*bumper-rear 2 Passenger Seat / Canada / United States
34
207682044
Screw-hex.flange Din.6921 2 Passenger Seat / Europe
35
518322755
Supp.guidon Sou*supp-handle Weld.
36
207663544
Винт
37
233261414
Гайка
38
518202100
Attache Gard.co*brkt-guard Belt
39
518207500
Renfort *reinforcement
41
414859400
Крышка
42
518322635
Support Silenc.*support-muffler
43
518322031
Attache Trousse*bracket-tool Kit
44
518321954
Attache Panneau*panel-fastener
517272510
Pare-chocs Arr.*bumper-rear 2 Passenger Seat / Europe
207682044
Screw-hex.flange Din.6921 2 Passenger Seat / Canada / United States
20
390402200
Заклепка 3/16
40
390402200
Заклепка 3/16
