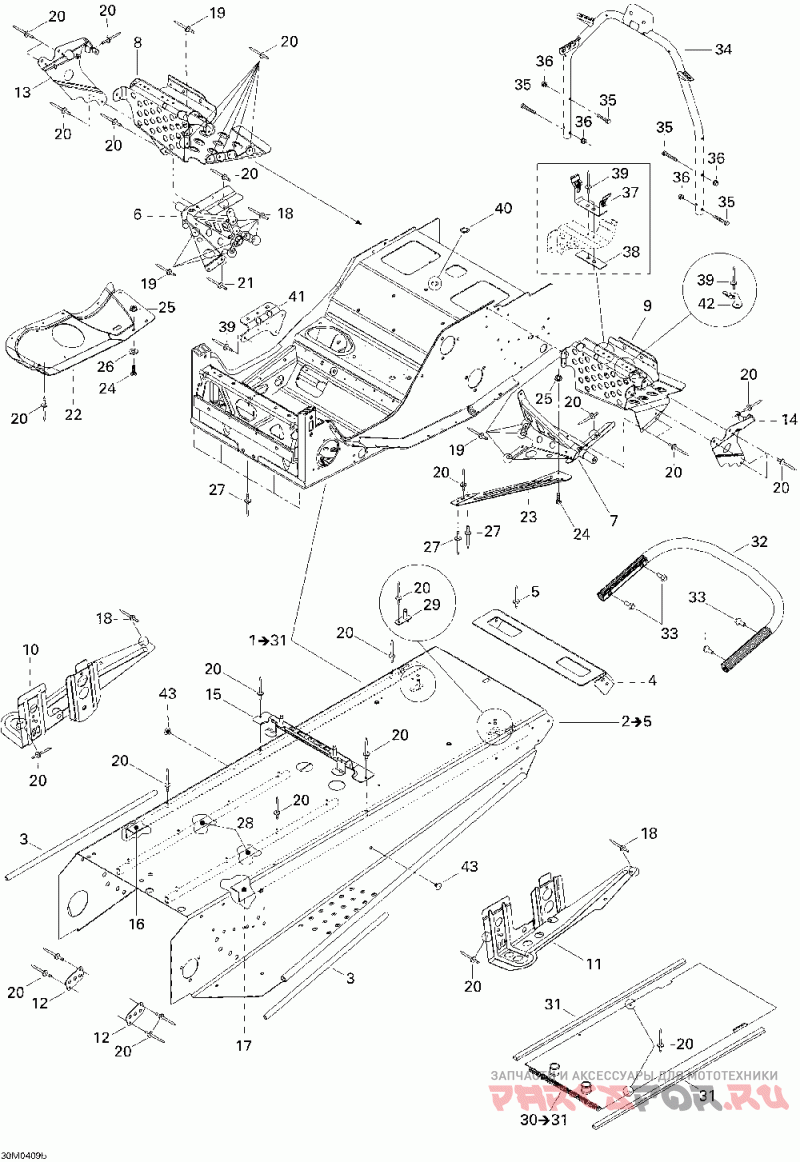

09- frame (1 passenger seat)

Ski-Doo (Bombardier) Legend V-1000

Ski-Doo (Bombardier)
#oem кодцена
1
415128760
Chassis *frame Service 1 Passenger Seat
2
415128763
Tunnel Forme *frame-forming Includes 2 To 5
3
518304746
Renf.marche-pie*reinf.-foot.
4
518321303
Capuchon Arr. *cap-rear
5
390402200
Заклепка 3/16
6
518320506
Support Droit *rh.support
7
518320507
Support Gauche *lh.support
8
518323563
Repose-pied Dr.*rh.footrest
9
518323564
Repose-pied Ga.*lh.footrest
10
518323315
Attache Susp.dr*rh Slide Bracket Weld
11
518323318
Attache Susp.ga*lh Slide Bracket
12
518201321
Plaque Renfort *plate-reinf.
13
518321305
Renf.rep.-pi.dr*reinf.-footrest Rh
14
518321307
Renf.rep.-pi.ga*reinf.-footrest Lh
15
518321510
Att.reserv.p. *brkt-tank Paint
16
518323193
Renfort *reinforcement
17
518323195
Renfort *reinforcement
18
390909200
Заклепка
19
390909100
Заклепка
21
390402300
Заклепка 3/16
22
518322636
0laque Coque Dr*plate-pan Bott.rh
23
518322119
Plaque Renf.ga.*plate-reinf.lh
24
207152044
Винт
25
233251414
Гайка
26
391301700
Шайба
27
390910300
Rivet Henrob *rivet-henrob
28
518321543
Protect. Tunnel*protect.-frame
29
518323321
Attache Siege S*seat Bracke Weld
30
518323130
Radiateur Arr.s*rad.-rear Weld. Includes 30 To 31
31
415012300
Защита
32
518322708
Pare-chocs Arr.*bumper-rear 1 Passenger Seat
33
207682044
Screw-hex.flange Din.6921 1 Passenger Seat
34
518322755
Supp.guidon Sou*supp-handle Weld.
35
207663544
Винт
36
233261414
Гайка
37
518202100
Attache Gard.co*brkt-guard Belt
38
518207500
Renfort *reinforcement
40
414859400
Крышка
41
518322635
Support Silenc.*support-muffler
42
518322031
Attache Trousse*bracket-tool Kit
43
518321954
Attache Panneau*panel-fastener
20
390402200
Заклепка 3/16
39
390402200
Заклепка 3/16
