Рама для снегоходов Ski-Doo (Bombardier) Summit 550 F (2003)

Москва и регионы России

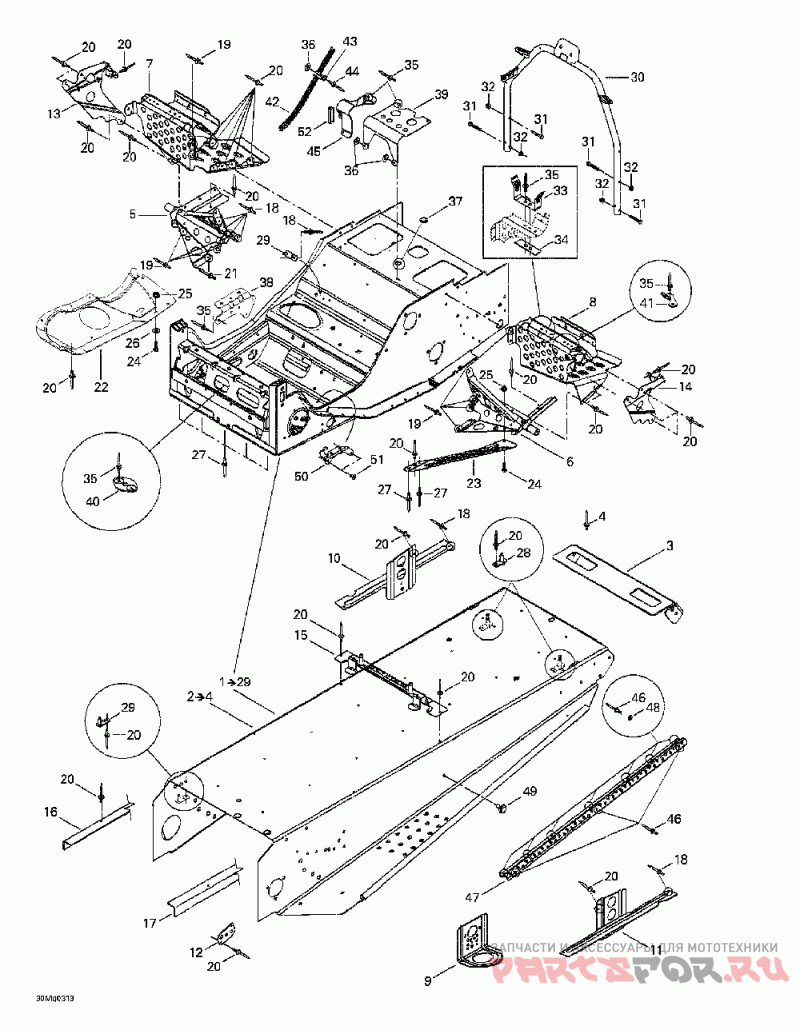

Рама

Ski-Doo (Bombardier) Summit 550 F

Рама

#

oem код

название

цена

1

Chassis *frame Service Includes 1 - 29.

Chassis *frame Service Includes 1 - 29.

2

Tunnel Forme *frame-forming Includes 2 - 4.

Tunnel Forme *frame-forming Includes 2 - 4.

3

Capuchon Arr. *cap-rear

Capuchon Arr. *cap-rear

4

Заклепка 3/16

Заклепка 3/16

5

Support Droit *rh.support

Support Droit *rh.support

6

Support Gauche *lh.support

Support Gauche *lh.support

7

Repose-pied Dr.*rh.footrest

Repose-pied Dr.*rh.footrest

8

Repose-pied Ga.*lh.footrest

Repose-pied Ga.*lh.footrest

9

Attache Avant *bracket-front

Attache Avant *bracket-front

10

Attache Susp.dr*slide Bracket Rh

Attache Susp.dr*slide Bracket Rh

11

Attache Susp.ga*slide Bracket Lh

Attache Susp.ga*slide Bracket Lh

12

Plaque Renfort *plate-reinf.

Plaque Renfort *plate-reinf.

13

Renf.rep.-pi.dr*reinf.-footrest Rh

Renf.rep.-pi.dr*reinf.-footrest Rh

14

Renf.rep.-pi.ga*reinf.-footrest Lh

Renf.rep.-pi.ga*reinf.-footrest Lh

15

Att.reserv.p. *brkt-tank Paint

Att.reserv.p. *brkt-tank Paint

16

Renf.tunnel Dr.*reinf-frame Rh

Renf.tunnel Dr.*reinf-frame Rh

17

Renf.tunnel Ga.*reinf-frame Lh

Renf.tunnel Ga.*reinf-frame Lh

18

Заклепка

Заклепка

19

Заклепка

Заклепка

21

Заклепка 3/16

Заклепка 3/16

22

0laque Coque Dr*plate-pan Bott.rh

0laque Coque Dr*plate-pan Bott.rh

23

Plaque Renf.ga.*plate-reinf.lh

Plaque Renf.ga.*plate-reinf.lh

24

Винт

Винт

25

Гайка

Гайка

26

Шайба

Шайба

27

Rivet Henrob *rivet-henrob

Rivet Henrob *rivet-henrob

28

Attache Siege S*seat Bracke Weld

Attache Siege S*seat Bracke Weld

29

Attache Doub.so*bracket Double Weld

Attache Doub.so*bracket Double Weld

30

Supp.guidon Sou*supp-handle Weld.

Supp.guidon Sou*supp-handle Weld.

31

Винт

Винт

32

Гайка

Гайка

33

Attache Gard.co*brkt-guard Belt

Attache Gard.co*brkt-guard Belt

34

Renfort *reinforcement

Renfort *reinforcement

36

Шайба

Шайба

37

Крышка

Крышка

38

Support Silenc.*support-muffler

Support Silenc.*support-muffler

39

Supp.silenc.adm*supp-air Intake

Supp.silenc.adm*supp-air Intake

40

Plaque Att.soud*plate-brkt Weld

Plaque Att.soud*plate-brkt Weld

41

Attache Trousse*bracket-tool Kit

Attache Trousse*bracket-tool Kit

42

Направляющая троса

Направляющая троса

43

Хомут открывающийся

Хомут открывающийся

44

Заклепка 3/16

Заклепка 3/16

45

Support Boyaux *support-hose

Support Boyaux *support-hose

47

Bande *strip

Bande *strip

49

Attache Panneau*panel-fastener

Attache Panneau*panel-fastener

50

Support Cablage*support-cable

Support Cablage*support-cable

52

Moul.protect. *trim-protect.

Moul.protect. *trim-protect.
