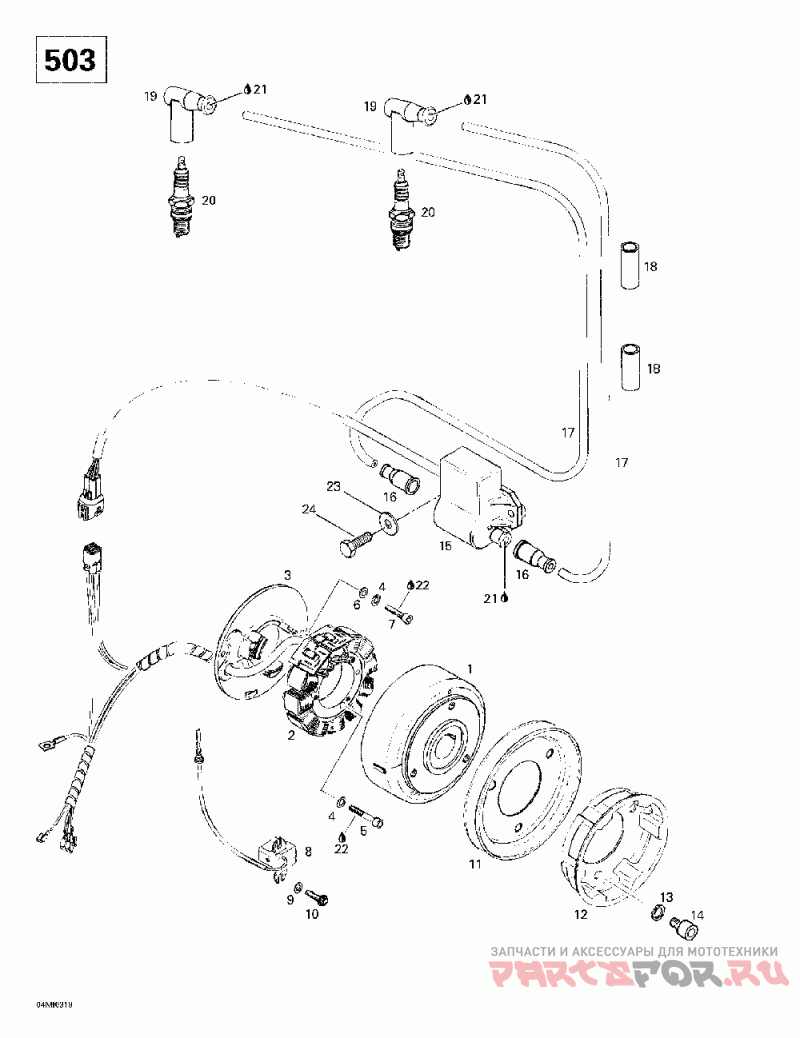

Магнето (503)

Ski-Doo (Bombardier) Skandic Wide Track 500 F

Ski-Doo (Bombardier)
#oem кодцена
1
420996820
Volant Moteur *flywheel Skandic 500f. Skandic 500f (swt).
2
420886605
Plaque Stator A*plate-stator A Includes 2 - 5. Skandic 500f. Skandic 500f (swt).
4
420945750
Rondelle-frein *washer-lock#5 Skandic 500f. Skandic 500f (swt).
5
420940880
Screw-allen M5 X 30 Skandic 500f. Skandic 500f (swt).
6
420927571
Rondelle 5, 3 *washer-5, 3 Skandic 500f. Skandic 500f (swt).
7
420840515
Screw-allen M5 X 18 Skandic 500f. Skandic 500f (swt).
8
420965763
Capteur Ass. *pickup-assy. Skandic 500f. Skandic 500f (swt).
9
420827800
Rondelle *washer Skandic 500f. Skandic 500f (swt).
10
420941925
Screw-tapping M5 X 16 Skandic 500f. Skandic 500f (swt).
11
420980486
Poulie En V *pulley-v Belt Skandic 500f. Skandic 500f (swt).
12
420852414
Poulie Demarrag*sheave-rope (pulley) Skandic 500f. Skandic 500f (swt).
13
420845311
Rondelle-frein *washer-lock#8 Skandic 500f. Skandic 500f (swt).
14
420841521
Screw-allen M8 X 12 Skandic 500f. Skandic 500f (swt).
15
420965757
Boite Electron.*box-electonic Includes 15 - 19. Skandic 500f. Skandic 500f (swt).
16
410112600
Capuchon Cable *cap-cable Skandic 500f. Skandic 500f (swt).
17
278001268
Fil Bougie *wire-spark Plug Skandic 500f. Skandic 500f (swt).
19
278000237
Capuchon Bougie*spark Plug Cap Skandic 500f. Skandic 500f (swt).
20
414961100
Bougie Br9es *spark Plug Skandic 500f. Skandic 500f (swt).
21
293550033
Synthetic Grease 10x14oz Skandic 500f. Skandic 500f (swt).
22
293800060
Loctite 243 *loctite-243 Skandic 500f. Skandic 500f (swt).
23
234061410
Washer-flat M6 Din.125a Skandic 500f. Skandic 500f (swt).
24
207162044
Screw-hex.cap Din.933 Skandic 500f. Skandic 500f (swt).
