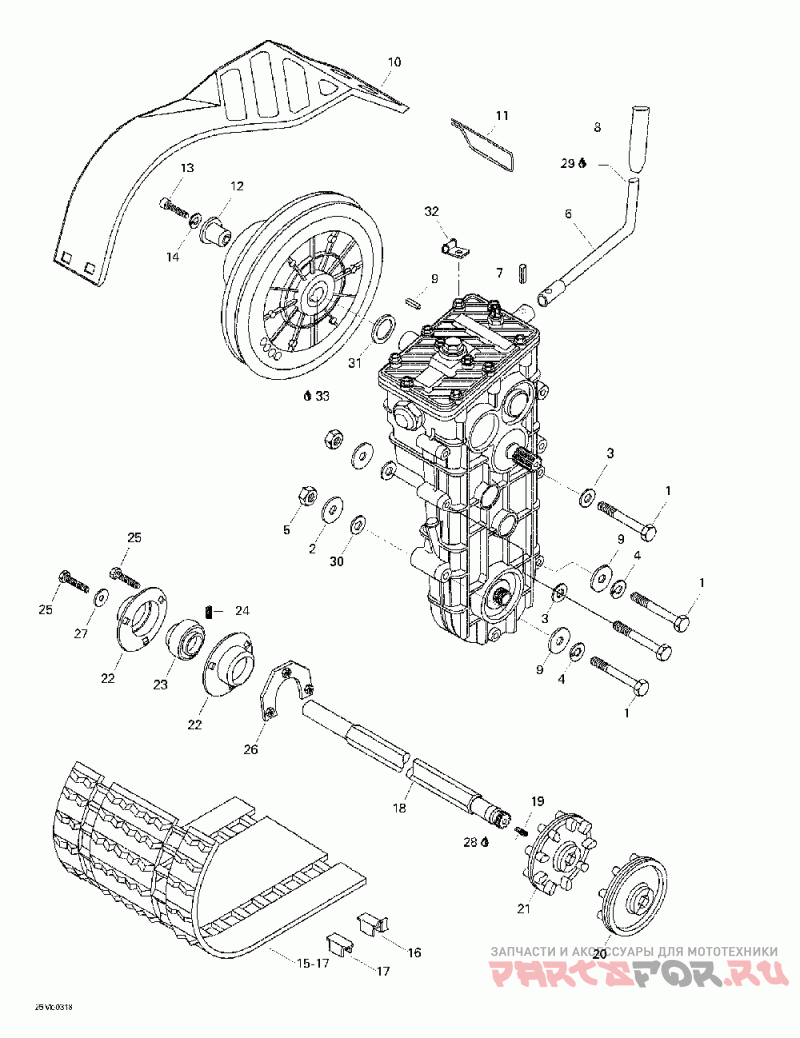

05- drive axle, track and belt guard

Ski-Doo (Bombardier) Skandic Super Wide Track 500 F

Ski-Doo (Bombardier)
#oem кодцена
1
M40012
Винт M8x80
2
M20010
Шайба
3
234081410
Шайба
4
234181401
Шайба
5
232581414
Гайка с тефлоном
6
M5340902
Bras Vitesse *arm-shifter
7
M41008
Goup.ressort *spring Pin Skandic 500f. Skandic 500f (swt).
M41007
Goup.ressort *pin-spring Skandic 600.
8
M28247
Шар
9
M418763
Шпонка
10
M5142660
Защита ремня
11
M5442726
Палец
12
M5443201
Rallonge Arbre *ext-countersha Skandic 500f. Skandic 600.
M5443765
Rallonge Arbre *ext-countersha Skandic 500f (swt).
13
M40286
Screw Allen M8 X 45 Skandic 500f. Skandic 600.
M40290
Screw Allen M8 X 55 Skandic 500f (swt).
15
M13070
Chenille *track-assy 20x156x1.25 Includes 15 - 17. Skandic 500f. Skandic 600.
M13056
Chenille *track-assy 24x156x0.9 Skandic 500f (swt).
16
M5318323
Башмак-направляющий
17
M5318322
Башмак гусеницы
18
M5341662
Arbre Entrain. *axle-drive Skandic 500f.
M5344243
Arbre Entrain. *axle-drive Skandic 500f (swt).
M5345117
Arbre Entrain. *axle-drive Skandic 600.
19
M542013
Raccord *nipple
20
M5342920
Barbotin *sprocket Skandic 500f.
415067400
Demi-barbot.8d.*half-sprock.8th. Skandic 500f (swt). Skandic 600.
21
M539750
Barbotin 8d *sprocket 8th Skandic 500f.
414931800
Barbotin 8d *sprocket 8th Skandic 500f (swt). Skandic 600.
22
M534430
Logement Roul. *housing-bea.we
23
M31UC205
Подшипник
24
M10531
Винт
25
M40336
Винт
26
M546421
Demi Anneau *ring-thust
27
M546336
Шайба
28
293800005
Смазка Loctite 271
29
293800060
Фиксатор резьбы loctite-243
30
M20077
Washer Skandic 500f. Skandic 600.
31
M3125351
Cale *shim Skandic 500f (swt).
32
M5443134
Porte Fil *wire-holder Skandic 600.
33
293800070
Смазка
