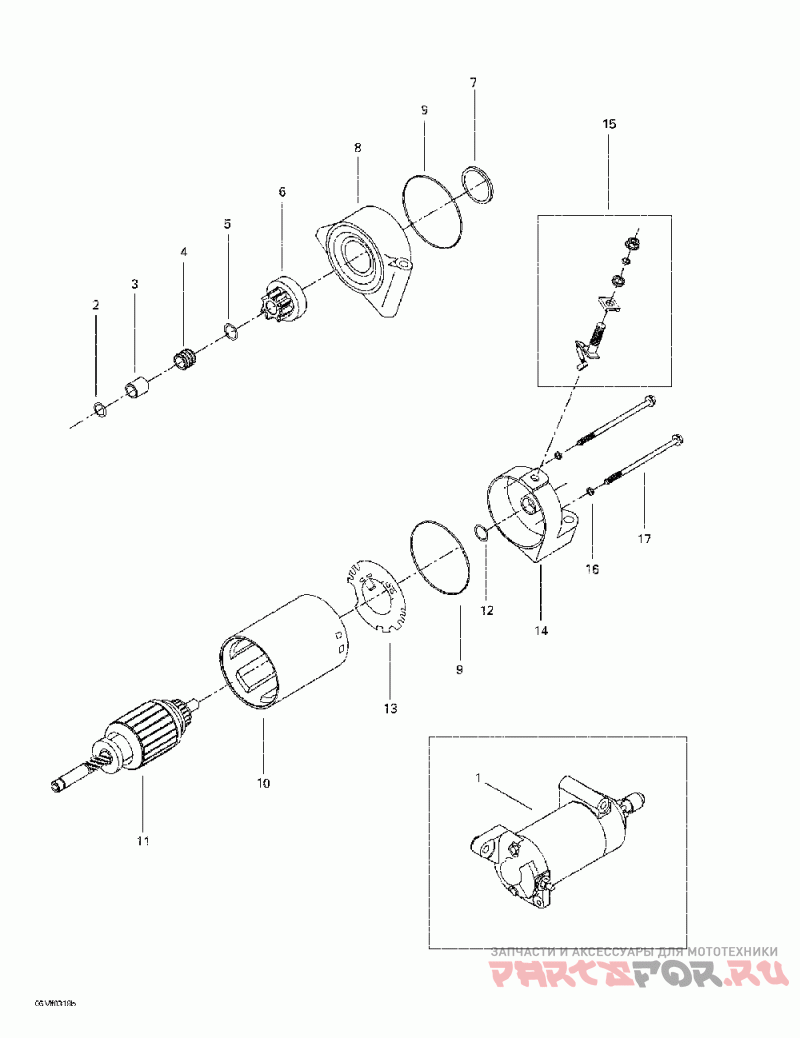

04- electric starter #2

Ski-Doo (Bombardier) Skandic 600

Ski-Doo (Bombardier)
#oem кодцена
1
515176133
Demarreur *starter Includes 1 - 17. Skandic 600.
2
410207700
Circlip Demar. *circlip-starter Skandic 600.
3
515175928
Ecrou *nut Skandic 600.
4
415129338
Ens.embrayage*kit-clutch Skandic 600.
5
278001105
Rondelle Plate *washer-flat Skandic 600.
6
515175783
Embrayage Demar*clutch-starter Skandic 600.
7
278000696
Joint Torique *o-ring Skandic 600.
8
515175784
Boitier *housing Skandic 600.
9
278000695
Joint Torique *o-ring Skandic 600.
10
410213104
Boitier Demar. *housing-starter Skandic 600.
11
515175785
Armature Ass. *armature-assy. Skandic 600.
12
410204500
Rondelle Appuie*washer-thrust Skandic 600.
13
515175786
Porte Balai *holder-brush Skandic 600.
14
515175787
Boitier *housing Skandic 600.
15
410212100
Ens.brosses *kit-brush Skandic 600.
16
278000060
Joint Torique *o-ring Skandic 600.
17
415129339
Ens. Boulon*kit-bolt Skandic 600.
7
415129342
Ens. Joint*kit-o-ring Skandic 600.
