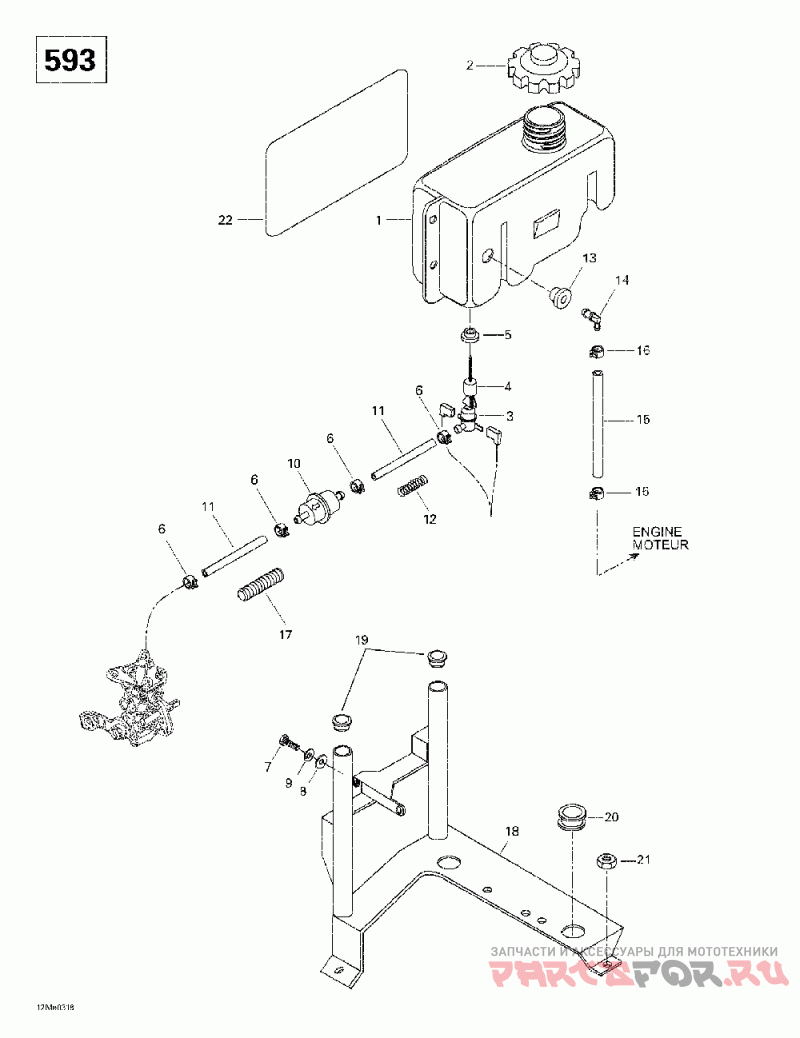

02- oil tank and support (593)

Ski-Doo (Bombardier) Skandic 600

Ski-Doo (Bombardier)
#oem кодцена
1
M5146370
Reservoir Huile*tank-oil Skandic 600.
2
519000044
Bouchon *cap Skandic 600.
3
414681800
Conct.niveau *switch-level Skandic 600.
4
278001013
Joint De Fil *seal-wire Skandic 600.
4
278001014
Cosse Femelle *terminal-femal Skandic 600.
4
409209500
Logement Femel.*housing-femal. Skandic 600.
4
515176327
Conct.niveau *switch-level Skandic 600.
5
570023000
Bague Isolante *ring-insulated Skandic 600.
6
414420700
Bride A Ressort*clamp-spring Skandic 600.
7
M40322
Vis *screw Skandic 600.
8
M20009
Washer 6.4 Din 9021 Skandic 600.
9
234161471
Washer-lock Black Din.127b Skandic 600.
10
414536500
Filtre Huile *filter-oil Skandic 600.
11
415080700
Boyau Polyure *hose*polyurethane Skandic 600.
12
M250001
Ressort *spring Skandic 600.
13
570135100
Passe-fils *grommet Skandic 600.
14
414580700
Raccord Male *connector-male Skandic 600.
15
M39004
Boyau *hose Skandic 600.
16
414554800
Bride A Ressort*clamp-spring Skandic 600.
17
M28015
Gaine *housing Skandic 600.
18
M5246593
Support *support Skandic 600.
19
M28136
Capuchon *plug Skandic 600.
20
M5446766
Passe-fils *grommet Skandic 600.
21
M33200
Flange Nut M6 Skandic 600.
22
M5443578
Feuille Reflect*sheet-reflect Skandic 600.
