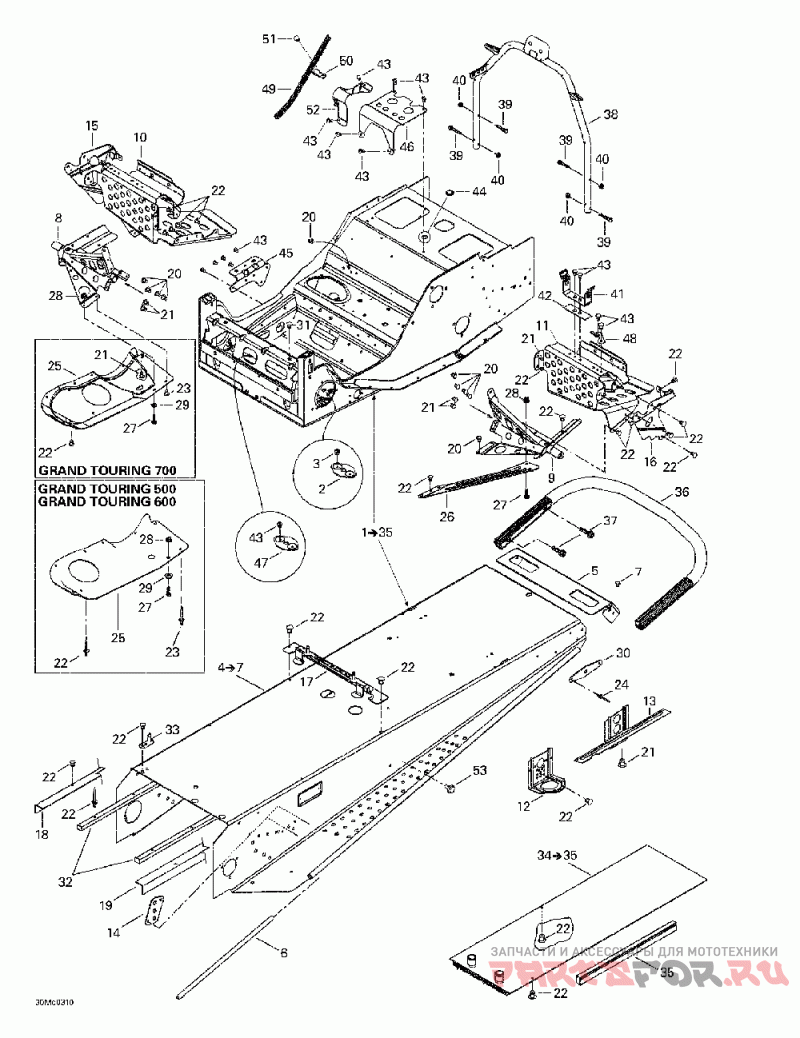

Рама

Ski-Doo (Bombardier) Grand Touring 500/600/700

Ski-Doo (Bombardier)
#oem кодцена
1
520000229
Garde-neige *guard-snow
520000228
Garde-neige *guard-snow Grand Touring 500. Grand Touring 600.
2
518201307
Plaque Att.soud*plate-brkt Weld
2
572108200
Renfort *reinforcement
3
517225900
Шайба
3
390402200
Заклепка 3/16
4
415128615
Tunnel Forme *frame-forming Includes 4 - 7.
4
293150087
Заклепка 3/16
5
415073300
Крышка
5
518322734
Capuchon Arr. *cap-rear
6
518304746
Renf.marche-pie*reinf.-foot.
6
861780100
Ens.enjoli. Dr. *kit-mould.rear Rh Black Includes 6 - 7.
861780200
Ens.enjoliveur Ga. *kit-mould.lh Black
8
518320506
Support Droit *rh.support
7
516000237
Рефлектор правый
516000241
Reflect.arr.dr.*reflect.-rear Rh Grand Touring 500. Grand Touring 600.
9
518320507
Support Gauche *lh.support
10
518323563
Repose-pied Dr.*rh.footrest
516000238
Рефлектор леавый
516000242
Reflect.arr. Ga*reflect.-rear Lh Grand Touring 500. Grand Touring 600.
11
518323564
Repose-pied Ga.*lh.footrest
12
518321495
Attache Avant *bracket-front
8
243141640
Винт
9
516001681
Etiquette *label-pending
13
518323051
Att.arr.dr.p. *brkt-rr Rh Paint
518323055
Att.arr.ga.p. *brkt-rr Lh Paint
10
520000271
Reflecteur Amb.*reflector-amber
11
529000035
Cle De Reglage *wrench-adj.
14
518201321
Plaque Renfort *plate-reinf.
15
518321305
Renf.rep.-pi.dr*reinf.-footrest Rh
12
520000126
Cle De Regl.sou*wrench-adjust.weld.
13
570069700
Loquet *latch
16
518321307
Renf.rep.-pi.ga*reinf.-footrest Lh
17
518321510
Att.reserv.p. *brkt-tank Paint
14
518321999
Support Trousse*support-tool Kit
15
529035596
Trousse Outils *tool Kit Includes 15 - 16.
18
518323190
Renfort *reinforcement
19
518323191
Renfort *reinforcement
16
520000552
Sac A Outils *bag-tool
17
415037900
Reflecteur *reflector
20
390909200
Заклепка
21
390909100
Заклепка
18
572088700
Rep.pied Arr.dr*footrest-rr.rh
520000261
Repose-pied Dr.*rh.footrest Grand Touring 600. Grand Touring 700.
23
390402300
Заклепка 3/16
572088800
Rep.pied Arr.ga*footrest-rr.lh
24
390402400
Заклепка 3/16
25
518322636
0laque Coque Dr*plate-pan Bott.rh Grand Touring 700.
518319760
Plaque Coque Dr*plate-pan Bott.rh Grand Touring 500. Grand Touring 600.
26
518322119
Plaque Renf.ga.*plate-reinf.lh
27
207152044
Винт
28
233251414
Гайка
29
391301700
Шайба
30
518316767
Renfort Arriere*reinf.-rear
31
390910300
Rivet Henrob *rivet-henrob
32
518321543
Protect. Tunnel*protect.-frame
33
518323173
Attache Doub.so*bracket Double Weld
34
518322905
Radiateur Arr.s*rad.-rear Weld. Includes 34 - 35.
35
518321656
Защита
36
517272510
Бампер задний
37
207682044
Винт
38
518322755
Supp.guidon Sou*supp-handle Weld.
39
207663544
Винт
40
233261414
Гайка
41
518202100
Attache Gard.co*brkt-guard Belt
42
518207500
Renfort *reinforcement
44
414859400
Крышка
45
518322635
Support Silenc.*support-muffler
46
518310400
Supp.silenc.adm*supp-air Intake
48
518322031
Attache Trousse*bracket-tool Kit
49
518321569
Направляющая троса
50
518321570
Хомут открывающийся
51
293150103
Заклепка 3/16
52
518322699
Support Boyaux *support-hose
53
518321954
Attache Panneau*panel-fastener
