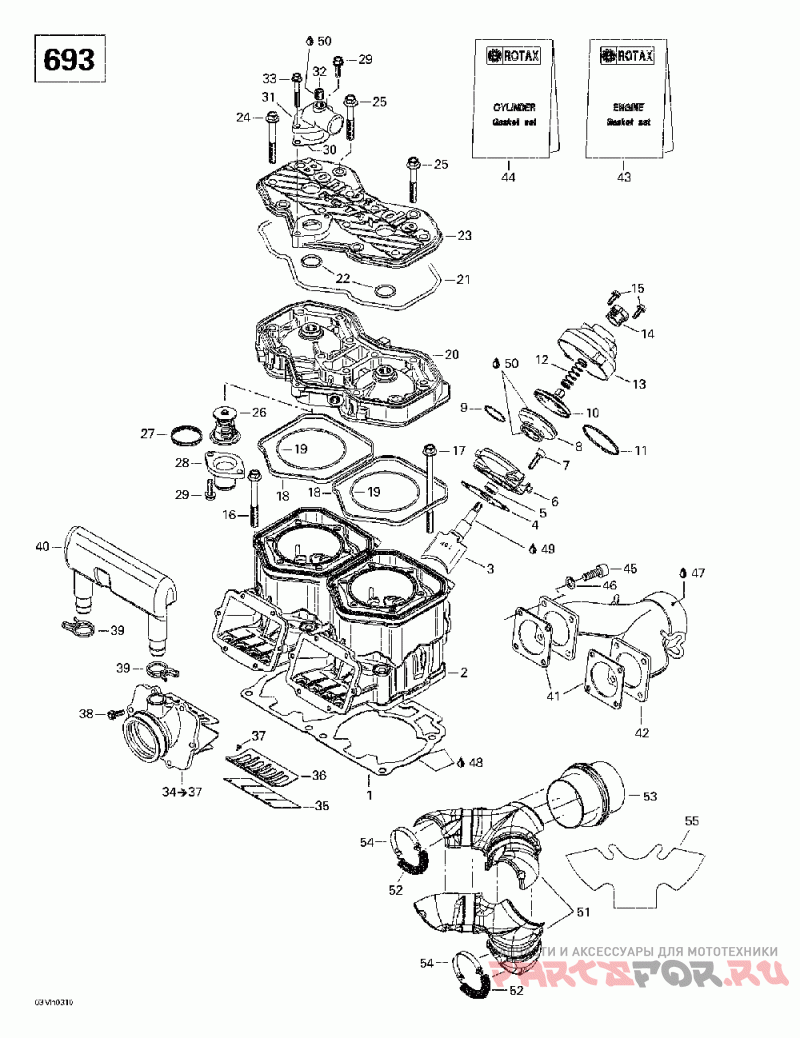

01- cylinder, exhaust manifold, reed valve (693)

Ski-Doo (Bombardier) Grand Touring 500/600/700

Ski-Doo (Bombardier)
#oem кодцена
1
420931895
Joint 0.8 *gasket 0.8 Grand Touring 700.
420931894
Joint 0.7 *gasket 0.7 Grand Touring 700.
420931892
Joint 0.6 *gasket 0.6 Grand Touring 700.
420431160
Joint 0.5 *gasket 0.5 Grand Touring 700.
2
420923695
Cylindre Nicas.*cylinder-nicasil Grand Touring 700.
3
420854332
Soupape Echap. *valve-exhaust Grand Touring 700.
4
420250239
Joint *gasket Grand Touring 700.
5
420950730
Сальник-Grand Touring 700
6
420854266
Boitier *housing-valve Grand Touring 700.
7
205062044
Screw-socket Hd.din.912 Grand Touring 700.
8
420260723
Manchon *bellows Grand Touring 700.
9
420838253
Bride Ressort *clamp-spring Grand Touring 700.
10
420854449
Soupape Echapp.*valve-exhaust Grand Touring 700.
11
420239048
Ressort Manchon*spring-hose Grand Touring 700.
12
420239944
Ressort *spring Grand Touring 700.
13
420911552
Couvercle Soup.*cover-valve Grand Touring 700.
14
420241221
Vis Ajustement *screw-adjuster Grand Touring 700.
15
420841555
Screw-tapping M5 X 20 Grand Touring 700.
16
420640524
Screw-hex Collar Grand Touring 700.
17
420640534
Screw-hex Collar Grand Touring 700.
18
420931590
Bague Caout. *ring-rubber Grand Touring 700.
19
420931840
Joint Torique *o Ring Grand Touring 700.
20
420613840
Tete-cylindre *head-cylinder Grand Touring 700.
21
420950320
Joint Torique *o Ring Grand Touring 700.
22
420430782
Joint Torique *o Ring Grand Touring 700.
23
420923465
Couvercle Cyl. *cover-cyl.head Grand Touring 700.
24
420841306
Screw-hex Collar M8x65 Sw 11 Grand Touring 700.
25
420941627
Collar-hex. Screw M8x56, 5 Grand Touring 700.
26
420922519
Thermostat *thermostat Grand Touring 700.
27
420931272
Sealing Ring Grand Touring 700.
28
420922025
Raccord Sortie *bent Outlet Socket Grand Touring 700.
29
420941250
Screw-tapping Grand Touring 700.
30
420850338
Joint *gasket Grand Touring 700.
31
420922062
Raccord Sortie *bent Outlet Socket Grand Touring 700.
32
420240480
Screw-plug 1/8-27 Npt Grand Touring 700.
33
420941451
Screw-hex Collar M6 X 40 Grand Touring 700.
34
420867873
Tubulure Carb. *socket-carburator Includes 34 - 37. Grand Touring 700.
35
420924680
Lame Pedale *reed-pedal Grand Touring 700.
36
420924695
Arret Lame Ped.*stop-reed Ped. Grand Touring 700.
37
420941215
Screw-oval Head M3x5 Grand Touring 700.
38
420941925
Screw-tapping M5 X 16 Grand Touring 700.
39
420851440
Bride *clamp Grand Touring 700.
40
420867817
Resonate.d Adm.*resona.intake Grand Touring 700.
41
420850552
Joint *gasket Grand Touring 700.
42
420973592
Collect.echapp.*exhaust Manifold Grand Touring 700.
43
420888603
Ens.joint Etanc*kit-gasket Engine Grand Touring 700.
44
420888608
Ens.joint Etanc*kit-gasket Cylinder Grand Touring 700.
46
234161471
Washer-lock Black Din.127b Grand Touring 700.
47
293800090
Enduit Etanche *sealant Grand Touring 700.
48
293800038
Loctite 518 *loctite-518 Grand Touring 700.
49
420297433
Molykote G-n 50gr. Grand Touring 700.
50
420297906
Compose Etanche*compound Sealing Grand Touring 700.
51
514053593
Env.collect.ech*manifold Exh.envelop. Grand Touring 700.
52
514053643
Ressort *spring Grand Touring 700.
53
514053487
Joint Echapp. *gasket-exhaust Grand Touring 700.
54
514053603
Languette *strap Retaining Grand Touring 700.
55
514053588
Laine Isolante *wooll Insulating Grand Touring 700.
