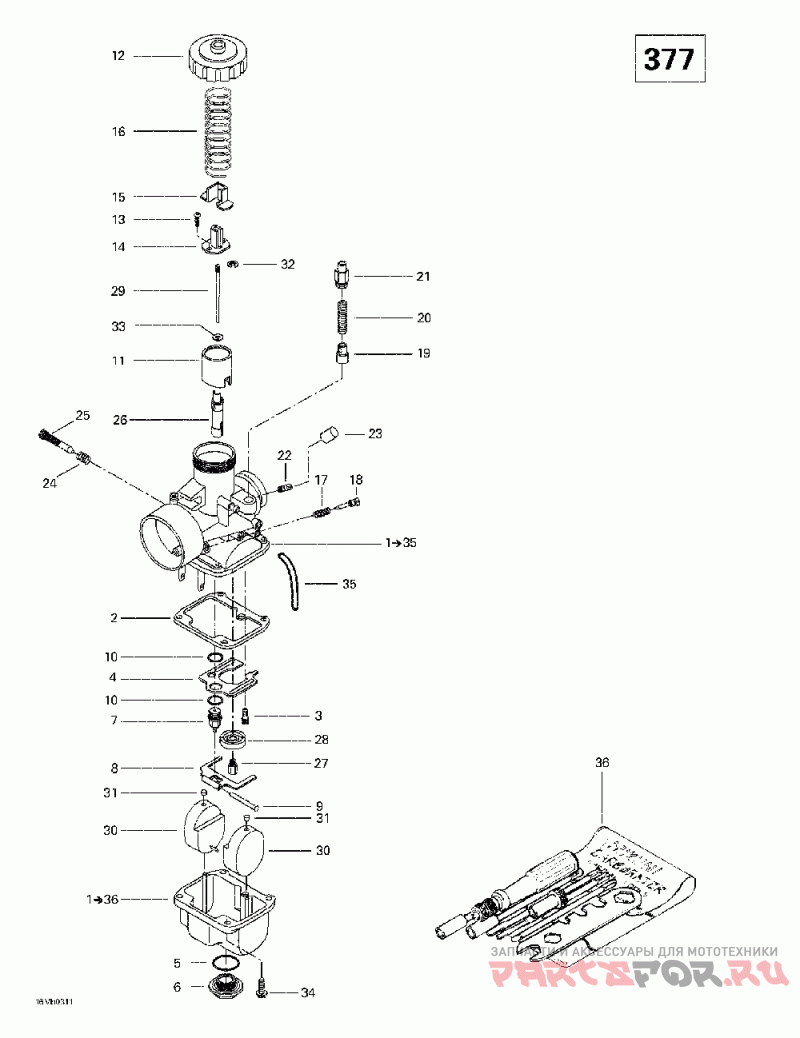

Карбюратор (377)

Ski-Doo (Bombardier) Grand Touring 380 F/550 F

Ski-Doo (Bombardier)
#oem кодцена
1
403138754
Carb.vm30-205 *carb.vm30-205 Includes 1 - 35. 380 F.
2
404104200
Joint *gasket 380 F.
3
404109100
Gicleur Ralenti*jet-pilot 40 380 F.
4
404109600
Chicane *baffle 380 F.
5
404107300
Joint Torique *o-ring 380 F.
6
404107400
Vis Bouchon *screw-drain Plug 380 F.
7
404147500
Pointeau Vs 1.2*valve Needle 380 F.
8
404107600
Levier Flotteur*lever-float 380 F.
9
404103300
Goupille Levier*pin-lever 380 F.
10
404101600
Rondelle Siege *washer-seat 380 F.
11
404128600
Tiroir Acc.2.0 *piston-val.2.0 380 F.
12
404103700
Couvercle Carb.*top-mix.chamb. 380 F.
13
404121300
Vis W.rondelle*screw-with Washer 380 F.
14
404161948
Joint *packing 380 F.
15
404122100
Couvercle *cover 380 F.
16
404154800
Ressort *spring 380 F.
17
404101800
Ressort *spring 380 F.
18
404102300
Screw-air 380 F.
19
404161986
Plongeur Ass. *plunger-assy 380 F.
20
404127400
Ressort *spring 380 F.
21
404161100
Guide *guide Holder 380 F.
22
404153400
Raccord *nipple 380 F.
23
404156600
Capuchon *cap 380 F.
24
404101700
Ressort *spring 380 F.
25
404109700
Vis *screw-idle Speed 380 F.
27
404119500
Gicleur Mj 185 *jet-main 185 380 F.
28
404110900
Bague Chicane *ring-baffle 380 F.
29
404161988
Aiguille 6cdy01*needle 6cdy01 380 F.
30
404107100
Flotte *float 380 F.
31
404105800
Capuchon *cap 380 F.
32
404152400
Rondelle E *ring-e 380 F.
33
404117000
Joint Tampon *packing 380 F.
34
404102000
Screw-w/lock *screw-w/lockwasher 380 F.
35
404161851
Durite *hose 380 F.
36
404112000
Trousse Outils *tool Kit 380 F.
