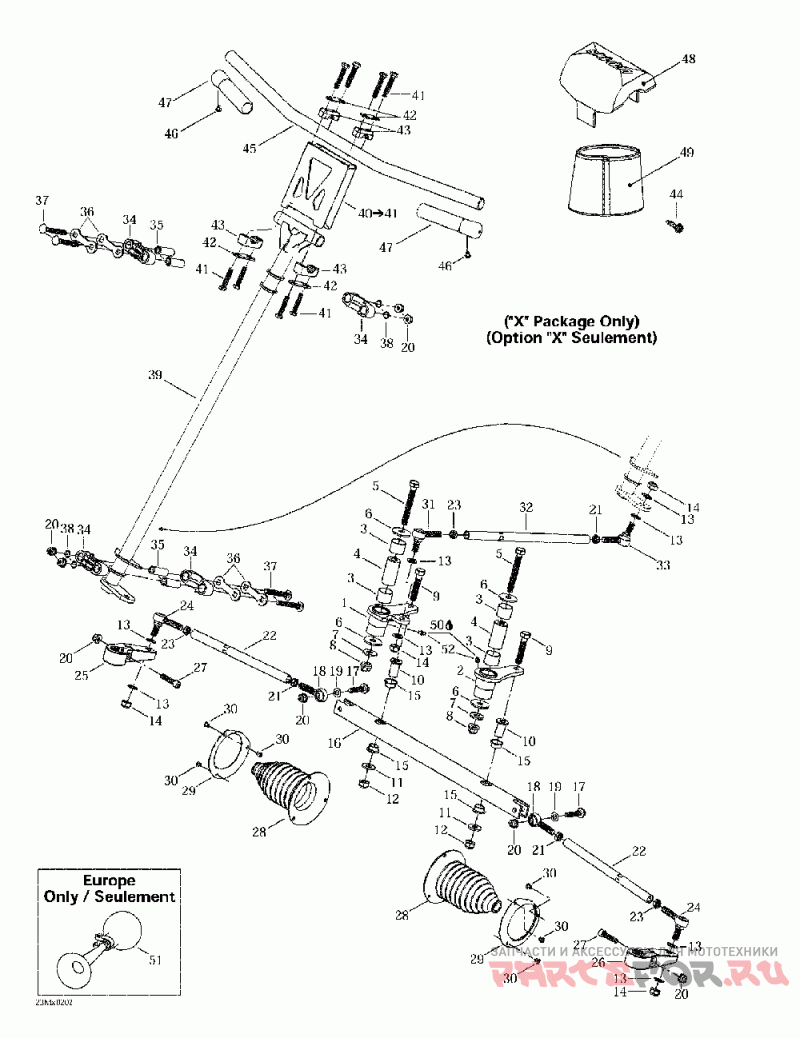

07- steering system (x)

Ski-Doo (Bombardier) MX Z 500/600/700/800

Ski-Doo (Bombardier)
#oem кодцена
1
506151506
Bras Piv.dr.sou*arm-swivel Rh W. Mx Z 600. Mx Z 700. Mx Z 800.
2
506151623
Bras Piv.ga.sou*swivel Arm Lh W. Mx Z 600. Mx Z 700. Mx Z 800.
3
506149900
Coussinet Pivot*swivel-bushing Mx Z 600. Mx Z 700. Mx Z 800.
4
506150100
Pivot De Bras *swivel-pivot Mx Z 600. Mx Z 700. Mx Z 800.
5
207008086
Screw-hex.cap Iso.4014 Mx Z 600. Mx Z 700. Mx Z 800.
6
506150000
Rondelle *washer M10 Mx Z 600. Mx Z 700. Mx Z 800.
7
506151251
Rondelle *washer Mx Z 600. Mx Z 700. Mx Z 800.
8
732610084
Nut-flange Flexloc M10 Mx Z 600. Mx Z 700. Mx Z 800.
9
207005544
Screw-hex.cap Iso.4014 Mx Z 600. Mx Z 700. Mx Z 800.
10
506147300
Pivot De Barre *pivot-bar Mx Z 600. Mx Z 700. Mx Z 800.
11
224002251
Washer-flat Mx Z 600. Mx Z 700. Mx Z 800.
12
233601416
Nut-locking Elastic Din.982 Mx Z 600. Mx Z 700. Mx Z 800.
13
503175800
Rondelle *washer Mx Z 600. Mx Z 700. Mx Z 800.
14
232501416
Nut-stop Elastic Din.985 Mx Z 600. Mx Z 700. Mx Z 800.
15
506150200
Coussinet Pivot*swivel-bushing Mx Z 600. Mx Z 700. Mx Z 800.
16
506147000
Barre Pivotante*bar-swivel Mx Z 600. Mx Z 700. Mx Z 800.
17
207684044
Screw-hex.flange Din.6921 Mx Z 600. Mx Z 700. Mx Z 800.
18
506151496
Joint Rotule *ball Joint Mx Z 600. Mx Z 700. Mx Z 800.
19
506151252
Rondelle *washer Mx Z 600. Mx Z 700. Mx Z 800.
20
233281414
Nut-flange Elastic Din.6926 Mx Z 600. Mx Z 700. Mx Z 800.
21
250100016
Nut-jam Hexagonal Lh. Mx Z 600. Mx Z 700. Mx Z 800.
22
506151374
Barre Accoupl. *rod-tie Mx Z 600. Mx Z 700. Mx Z 800.
23
732610010
Nut-jam Hexagonal Rh. Mx Z 600. Mx Z 700. Mx Z 800.
24
506151491
Joint Rotule *ball Joint Mx Z 600. Mx Z 700. Mx Z 800.
25
506145800
Bras Direct.dr.*arm-steer.rh Mx Z 600. Mx Z 700. Mx Z 800.
26
506145900
Bras Direct.ga.*arm-steer.lh Mx Z 600. Mx Z 700. Mx Z 800.
27
205083544
Screw-socket Hd.din.912 Mx Z 600. Mx Z 700. Mx Z 800.
28
570070500
Capuchon Timon.*cap-tie Rod Mx Z 600. Mx Z 700. Mx Z 800.
29
506151100
Anneau Retenue *ring-retainer Mx Z 600. Mx Z 700. Mx Z 800.
30
390402300
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 600. Mx Z 700. Mx Z 800.
31
506151492
Joint Rotule *ball Joint Mx Z 600. Mx Z 700. Mx Z 800.
32
506151375
Barre Accoupl. *rod-tie Mx Z 600. Mx Z 700. Mx Z 800.
33
506151495
Joint Rotule *ball Joint Mx Z 600. Mx Z 700. Mx Z 800.
34
506150400
Demi Logement *half-housing Mx Z 600. Mx Z 700. Mx Z 800.
35
506150500
Douille Logem. *bushing-housing Mx Z 600. Mx Z 700. Mx Z 800.
36
506150600
Plaque D Arret *plate-stopper Mx Z 600. Mx Z 700. Mx Z 800.
37
207787044
Bolt-carriage Din.603 Mx Z 600. Mx Z 700. Mx Z 800.
38
506151140
Joint Torique *o-ring Mx Z 600. Mx Z 700. Mx Z 800.
39
506151488
Arbre Dir.peint*tube-main Paint Mx Z 600. Mx Z 700. Mx Z 800.
40
860601300
Ens.ext.guidon *kit-ext.handle Bar(80mm) Includes 40 - 41. Mx Z 600. Mx Z 700. Mx Z 800.
41
250000074
Screw-hex.cap Din.931 Nylon-patch Mx Z 600. Mx Z 700. Mx Z 800.
42
506151196
Renfort *reiforcement Mx Z 600. Mx Z 700. Mx Z 800.
43
506151622
Support Guidon *steering Support Mx Z 600. Mx Z 700. Mx Z 800.
44
732601210
Screw-tapp.hex.wr.hd.sltd. Mx Z 600. Mx Z 700. Mx Z 800.
45
506151476
Guidon Peint *bar-handle Paint Mx Z 600. Mx Z 700. Mx Z 800.
46
390403600
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 600. Mx Z 700. Mx Z 800.
47
M5340464
Gaine Poignee *grip-handle Mx Z 600. Mx Z 700. Mx Z 800.
48
506151475
Couss.securite *pad-steering Assy Mx Z 600. Mx Z 700. Mx Z 800.
49
506151514
Collet Console *collar-console Mx Z 600. Mx Z 700. Mx Z 800.
50
293550033
Synthetic Grease 10x14oz Mx Z 600. Mx Z 700. Mx Z 800.
51
549011291
Avertisseur *horn Mx Z 600. Mx Z 700. Mx Z 800.
52
408200700
Graisseur *grease Fitting Mx Z 600. Mx Z 700. Mx Z 800.
33
506151845
Joint Rotule *ball Joint Mx Z 600. Mx Z 700. Mx Z 800.
