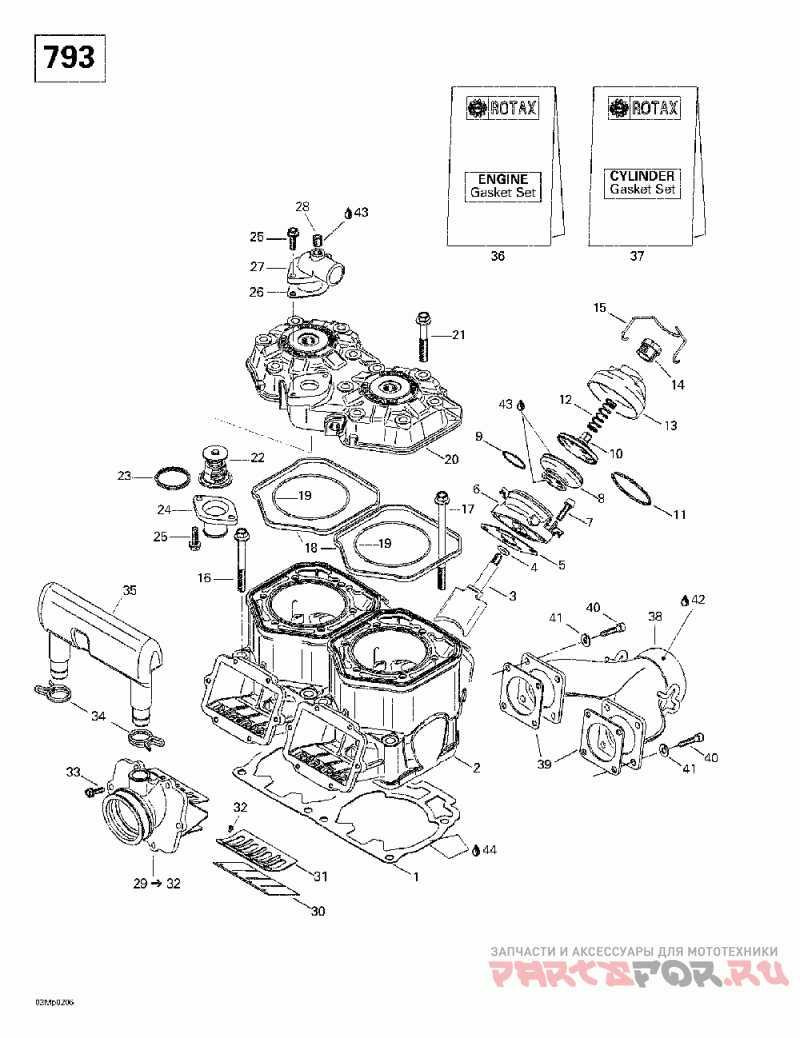

Цилиндр,выпускной коллектор и мощностной клапан (793)

Ski-Doo (Bombardier) Legend 500/600/700/800

Ski-Doo (Bombardier)
#oem кодцена
1
420931839
Joint 0.8 *gasket 0.8 Legend 800.
420931964
Joint 0.7 *gasket 0.7 Legend 800.
420931837
Joint 0.6 *gasket 0.6 Legend 800.
420931838
Joint 0.5 *gasket 0.5 Legend 800.
2
420923815
Cylindre Nicas.*cylinder-nicasil Legend 800.
3
420854465
Soupape Echap. *valve-exhaust Legend 800.
4
420430110
Joint Torique *o Ring Legend 800.
5
420931542
Joint *gasket Legend 800.
6
420854450
Boitier *housing-valve Legend 800.
7
205062544
Screw-socket Hd.din.912 Legend 800.
8
420260729
Manchon *bellows Legend 800.
9
420838253
Bride Ressort *clamp-spring Legend 800.
10
420854449
Soupape Echapp.*valve-exhaust Legend 800.
11
420239048
Ressort Manchon*spring-hose Legend 800.
12
420239941
Ressort *spring Legend 800.
13
420911558
Couvercle Soup.*cover-valve Legend 800.
14
420241221
Vis Ajustement *screw-adjuster Legend 800.
15
420838083
Pince A Ressort*clip-spring Legend 800.
16
420640524
Screw-hex Collar Legend 800.
17
420640534
Screw-hex Collar Legend 800.
18
420931590
Bague Caout. *ring-rubber Legend 800.
19
420931410
Joint Torique *o Ring Legend 800.
20
420923822
Couvercle Cyl. *cover-cyl.head Legend 800.
21
420941627
Collar-hex. Screw M8x56, 5 Legend 800.
22
420922519
Thermostat *thermostat Legend 800.
23
420931270
Bague Etanche *ring-sealing Legend 800.
24
420922025
Raccord Sortie *bent Outlet Socket Legend 800.
25
420941250
Screw-tapping Legend 800.
26
420850338
Joint *gasket Legend 800.
27
420922062
Raccord Sortie *bent Outlet Socket Legend 800.
28
420240480
Screw-plug 1/8-27 Npt Legend 800.
29
420867873
Tubulure Carb. *socket-carburator Includes 29 - 32. Legend 800.
30
420924680
Lame Pedale *reed-pedal Legend 800.
31
420924695
Arret Lame Ped.*stop-reed Ped. Legend 800.
32
420941215
Screw-oval Head M3x5 Legend 800.
33
420941925
Screw-tapping M5 X 16 Legend 800.
34
420851440
Bride *clamp Legend 800.
35
420867817
Resonate.d Adm.*resona.intake Legend 800.
36
420888741
Ens.joint Etanc*kit-gasket Engine Legend 800.
37
420888745
Ens.joint Etanc*kit-gasket Cylinder Legend 800.
38
420973710
Collect.echapp.*manifold-exh. Legend 800.
39
420931850
Joint *gasket Legend 800.
40
205062044
Screw-socket Hd.din.912 Legend 800.
41
234161471
Washer-lock Black Din.127b Legend 800.
42
293800090
Enduit Etanche *sealant Legend 800.
43
420297906
Compose Etanche*compound Sealing Legend 800.
44
293800038
Loctite 518 *loctite-518 Legend 800.
