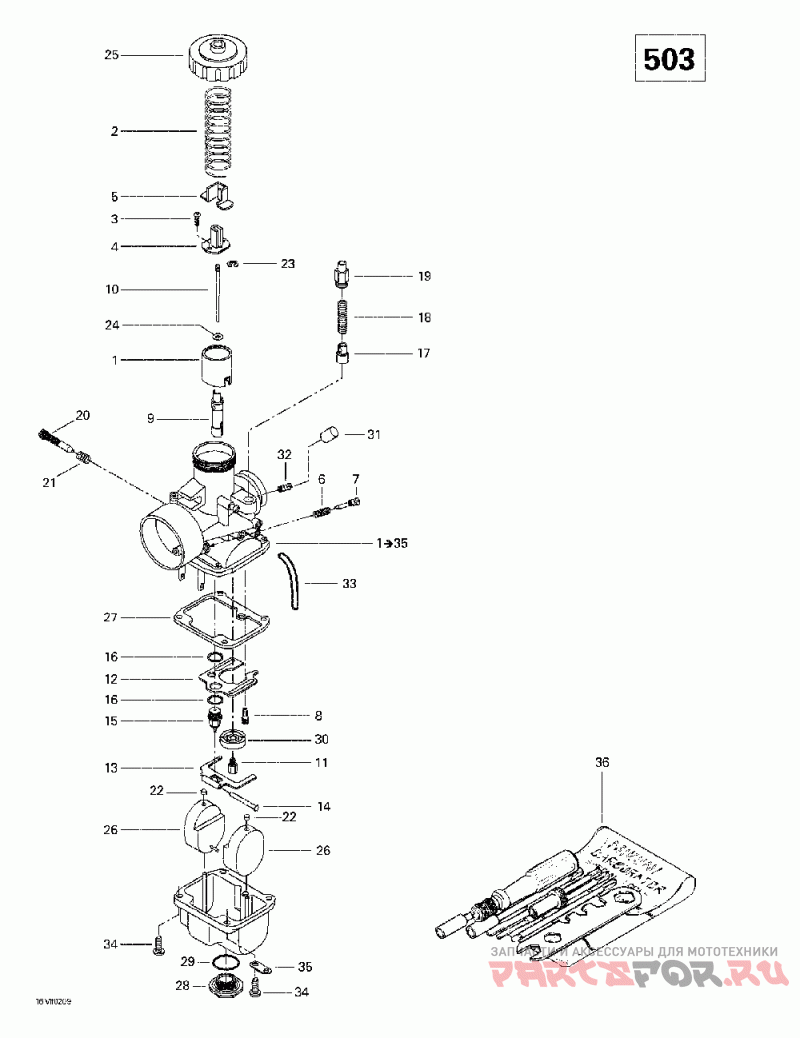

Карбюратор (503)

Ski-Doo (Bombardier) Grand Touring 380 F/500 F

Ski-Doo (Bombardier)
#oem кодцена
1
403138697
Carb.vm-34-576 *carb.vm34-576 Includes 1 - 35. 500 F.
1
404128600
Tiroir Acc.2.0 *piston-val.2.0 500 F.
2
404154800
Ressort *spring 500 F.
3
404121300
Vis W.rondelle*screw-with Washer 500 F.
4
404161987
Joint *packing 500 F.
5
404122100
Couvercle *cover 500 F.
6
404139800
Ressort *spring 500 F.
7
404149000
Vis Air *screw-air 500 F.
8
404109100
Gicleur Ralenti*jet-pilot 40 500 F.
9
404103600
Gicleur Aiguil.*jet Needle 500 F.
10
404161989
Aiguille 6afy05*needle 6afy05 500 F.
11
404119100
Gicleur Mj 210 *jet-main 210 500 F.
12
404109600
Chicane *baffle 500 F.
13
404107600
Levier Flotteur*lever-float 500 F.
14
404103300
Goupille Levier*pin-lever 500 F.
15
404147500
Pointeau Vs 1.2*valve Needle 500 F.
16
404101600
Rondelle Siege *washer-seat 500 F.
17
404161986
Plongeur Ass. *plunger-assy 500 F.
18
404127400
Ressort *spring 500 F.
19
404161100
Guide *guide Holder 500 F.
20
404125200
Vis Etrangleur*screw-throttle 500 F.
21
404101700
Ressort *spring 500 F.
22
404105800
Capuchon *cap 500 F.
23
404152400
Rondelle E *ring-e 500 F.
24
404117000
Joint Tampon *packing 500 F.
25
404103700
Couvercle Carb.*top-mix.chamb. 500 F.
26
404107100
Flotte *float 500 F.
27
404104200
Joint *gasket 500 F.
28
404107400
Vis Bouchon *screw-drain Plug 500 F.
29
404107300
Joint Torique *o-ring 500 F.
30
404110900
Bague Chicane *ring-baffle 500 F.
31
404156600
Capuchon *cap 500 F.
32
404153400
Raccord *nipple 500 F.
33
404161851
Durite *hose 500 F.
34
404102000
Screw-w/lock *screw-w/lockwasher 500 F.
35
404103000
Plaque *plate 500 F.
36
404112000
Trousse Outils *tool Kit 500 F.
