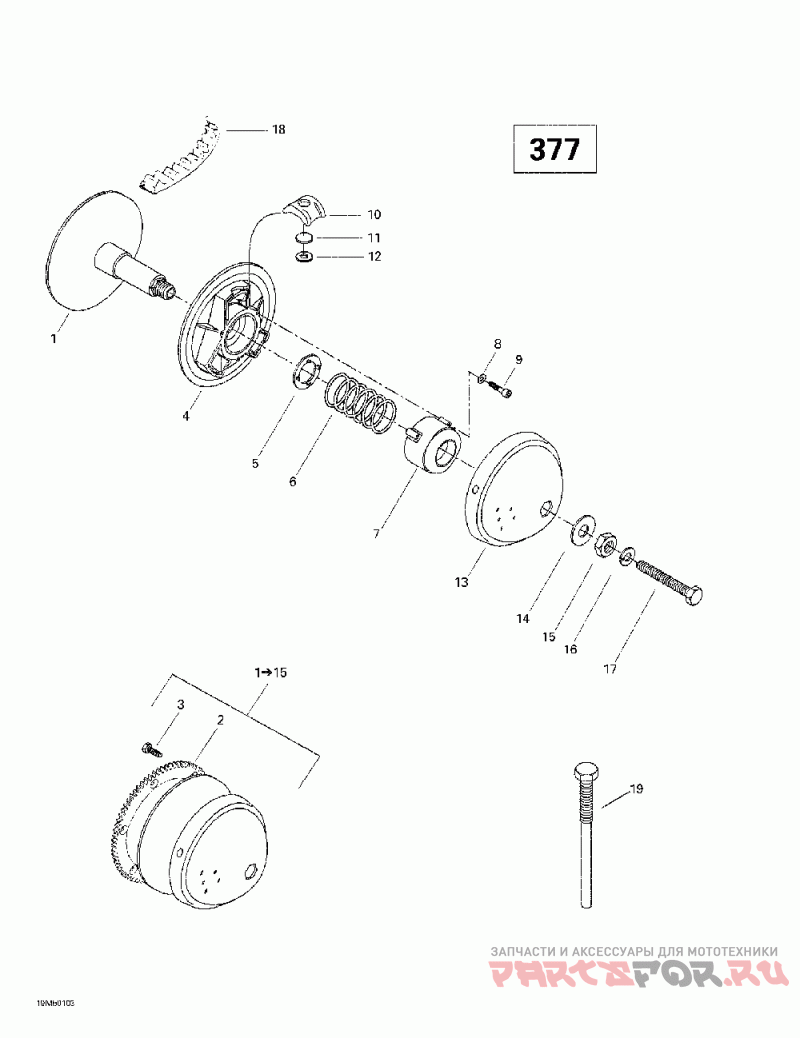

05- drive pulley (377)

Ski-Doo (Bombardier) Touring 380 F/500F

Ski-Doo (Bombardier)
#oem кодцена
1
417121200
Flasque Int. *flange-inner Touring 380 F.
2
417222859
Cour.lancement *gear-ring Touring 380 F.
3
210361686
Screw-forming Hex.hd.gm6174m Touring 380 F.
4
417126531
Flasque Coul. *flange-sliding Touring 380 F.
5
417116200
Rondelle Guide *washer-guide Touring 380 F.
6
417125300
Ressort Vert/ve*spring Green/green Touring 380 F.
7
417121400
Couv.ressort *cover-spring Touring 380 F.
8
420245370
Rondelle *washer Touring 380 F.
9
205064086
Screw-socket Hd.din.912 Gm6174m Touring 380 F.
10
417118100
Bloc Centrifuge*block-centrifu Touring 380 F.
11
417120400
Pesee Calibrat.*weigh-adjust. Touring 380 F.
12
417114500
Capsule *capsule Touring 380 F.
13
417125100
Capuchon *cap Touring 380 F.
14
417122400
Rondelle *washer Touring 380 F.
15
417118300
Ecrou *nut Touring 380 F.
16
392002800
Washer-lock Helical Spring Touring 380 F.
17
417113800
Boulon *bolt-pulley Drive Touring 380 F.
18
415060600
Courroie *belt-drive Touring 380 F.
19
529031400
Extrac.poulie *puller-drive Touring 380 F.
