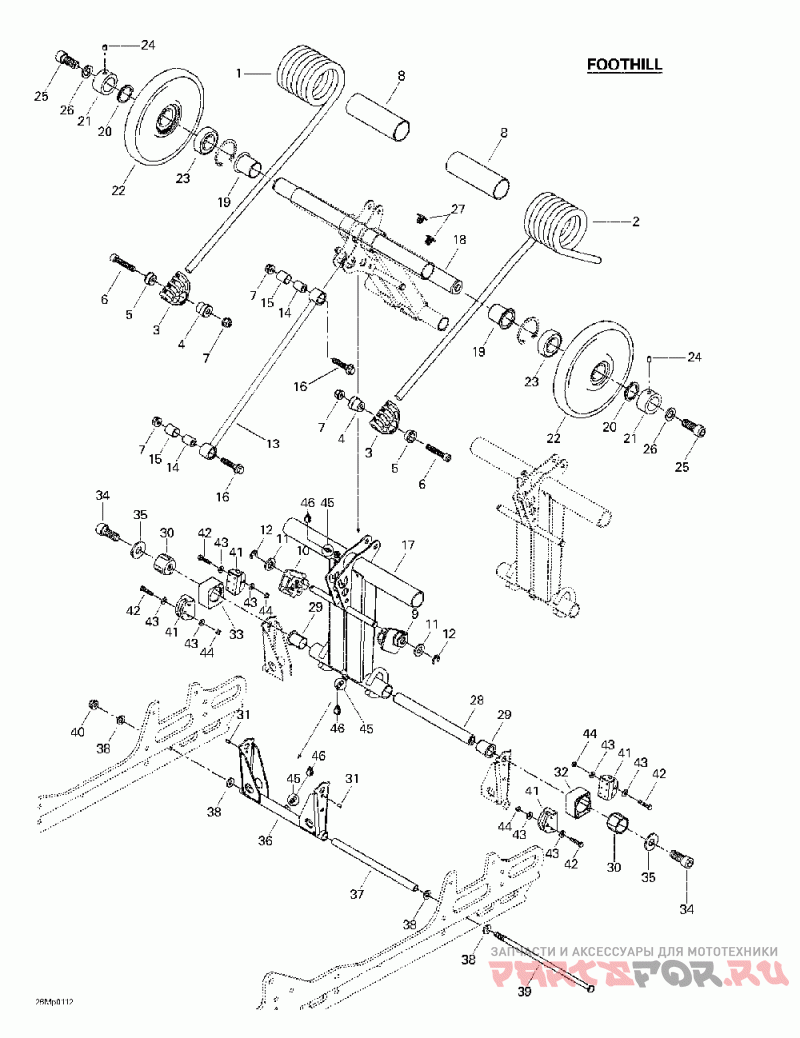

08- rear arm, foothill

Ski-Doo (Bombardier) Summit 600/700/800

Ski-Doo (Bombardier)
#oem кодцена
1
503189627
Деталь Ressort Peint *spring-paint Summit 800.
2
503189629
Деталь Ressort Peint *spring-paint Summit 800.
3
503189657
Деталь Support Ressort*support-spring Summit 800.
4
503188934
Деталь Axe Guide Ress.*axle-guide Spring Summit 800.
5
503188929
Деталь Coussinet Reten*cushion-retain. Summit 800.
6
205084544
Деталь Screw-socket Hd.din.912 Summit 800.
7
233281414
Деталь Nut-flange Elastic Din.6926 Summit 800.
8
503189105
Деталь Douille Plast. *bushing-plastic Summit 800.
9
503190023
Деталь Came Ressort Ga*cam-spring Lh Summit 800.
10
503190022
Деталь Came Ressort Dr*cam-spring Rh Summit 800.
11
234021410
Деталь Washer-flat Din.125a Summit 800.
12
293370013
Деталь Circlip Type"e"*circlip-"e"type Summit 800.
13
503189425
Деталь Tige Accel.long*rod-throttle Long Summit 800.
14
503189133
Деталь Axe De Tige *axle-rod Summit 800.
15
503189625
Деталь Coussinet *cushion Summit 800.
16
207684044
Деталь Screw-hex.flange Din.6921 Summit 800.
17
503189501
Деталь Bras Arriere P.*arm-rear P. Summit 800.
18
503189412
Деталь Axe Superieur *shaft-upper Summit 800.
19
503189288
Деталь Coussinet *cushion Summit 800.
20
503189146
Деталь Ressort Axe *spring-axle Summit 800.
21
503189147
Деталь Anneau Retenue *ring-retainer Summit 800.
22
503190816
Деталь Roue 165 *wheel-165 Includes 22 - 23. Summit 800.
23
293350055
Деталь Ball Bearing Summit 800.
24
206260844
Деталь Screw-set Socket Din.913 Summit 800.
25
205523544
Деталь Screw-socket Hd.din.912 S.grip Summit 800.
26
503189276
Деталь Rondelle *washer Summit 800.
27
414644300
Деталь Dard Pare-brise*dart-windshield 1=1 Pac Summit 800.
28
503189413
Деталь Axe Inferieur *shaft-lower Summit 800.
29
503189286
Деталь Coussinet *cushion Summit 800.
30
503189488
Деталь Guide Bloc *guide-block Summit 800.
31
250400005
Деталь Dowel-pin 4 X 8mm Summit 800.
32
503189152
Деталь Bloc Gauche *block-lh Summit 800.
33
503189170
Деталь Bloc Droit *block-rh Summit 800.
36
503189819
Деталь Jumelle Peinte *arm-pivot P. Summit 800.
37
503189156
Деталь Axe Jumelle *axle-pivot Summit 800.
38
503189157
Деталь Rondelle *washer Summit 800.
39
732601198
Деталь Boulon 248mm *bolt 248mm Summit 800.
41
503189608
Деталь Butee Caout. *stopper-rubber Summit 800.
42
207053044
Деталь Screw-hex.cap Din.931 Summit 800.
43
250200016
Деталь Rondelle *washer Summit 800.
44
232551414
Деталь Nut-stop Elastic Din.985 Summit 800.
45
408200700
Деталь Graisseur *grease Fitting Summit 800.
46
293550033
Деталь Synthetic Grease 10x14oz Summit 800.
29
503191640
Деталь Coussinet *cushion Summit 800.
