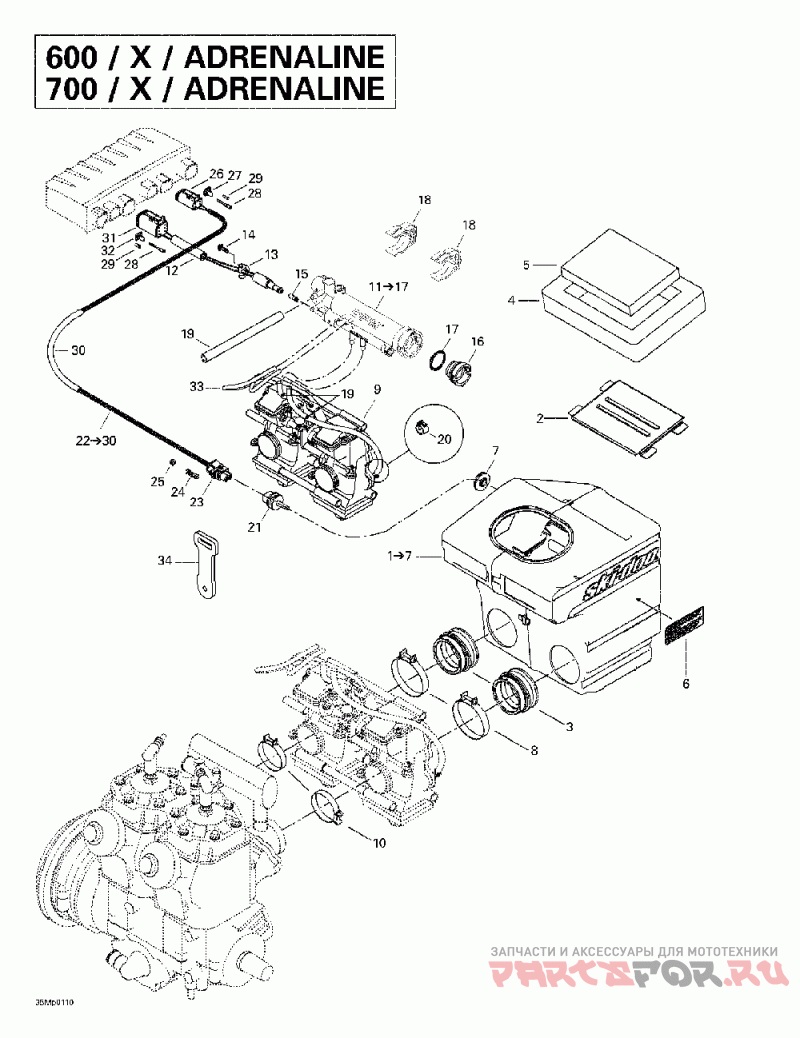

Система впуска воздуха ( x, adrenaline)

Ski-Doo (Bombardier) MX Z 500/600/700

Ski-Doo (Bombardier)
#oem кодцена
1
508000226
Silenc.adm.ass.*intake-air Ass Includes 1 - 7. Mx-z 600.
508000169
Silenc.adm.ass.*intake-air Ass Mx-z 700.
2
508000004
Grille Adm. *grill-intake Mx-z 600. Mx-z 700.
3
508000092
Adap.admission *adap-air Intake Mx-z 600. Mx-z 700.
4
508000099
Mousse Ext. *foam-lower Mx-z 600. Mx-z 700.
5
508000154
Filtre A Air *filter-air Mx-z 600. Mx-z 700.
6
516000130
Etiquette Att. *caution-label Mx-z 600. Mx-z 700.
7
570065500
Anneau *grommet Mx-z 600. Mx-z 700.
8
508000346
Clamp Mx-z 600. Mx-z 700.
9
403138656
Ensemble Carb. *kit-carb.-tm-40 Mx-z 600.
403138658
Ensemble Carb. *kit-carb.-tm-40 Mx-z 700.
10
512059835
Bride *clamp Mx-z 600. Mx-z 700.
11
512059568
Collecteur Pres*manifold-press Includes 11 - 17. Mx-z 600.
512059567
Collecteur Pres*manifold-press Mx-z 700.
12
515175271
Cablage Collect*harness-press.manif. Mx-z 600. Mx-z 700.
13
415061600
Barrure Electr.*lock-solenoid Mx-z 600. Mx-z 700.
14
241140060
Screw-pt.hex.flange K40 X 10 Mx-z 600. Mx-z 700.
15
404161825
Gicleur Lanceur*starter-jet Mx-z 700.
16
512058949
Bouchon *cap Mx-z 600. Mx-z 700.
17
512058950
Joint Torique *o-ring Mx-z 600. Mx-z 700.
18
512058919
Support *support Mx-z 600. Mx-z 700.
19
415080200
Boyau Polyure *polyurethane Hose Mx-z 600. Mx-z 700.
20
414554800
Bride A Ressort*clamp-spring Mx-z 600. Mx-z 700.
21
270600000
Capteur Temp. *sensor-air Mx-z 600. Mx-z 700.
22
515175589
Cablage Temp. *harness-temp. Includes 22 - 30. Mx-z 600. Mx-z 700.
23
515175588
Loge.femelle *housing-female Mx-z 600. Mx-z 700.
24
278000998
Cosse Femelle *terminal-femelle Mx-z 600. Mx-z 700.
25
278000999
Joint De Fil *seal-wire Mx-z 600. Mx-z 700.
26
515175245
Logement Femel.*housing-female Mx-z 600. Mx-z 700.
27
515175246
Verrou Femelle *lock-female Mx-z 600. Mx-z 700.
28
409015100
Cosse Femelle *terminal-femal. Mx-z 600. Mx-z 700.
29
515175303
Bouchon *plug Mx-z 600. Mx-z 700.
30
515175332
Gaine Low Temp.vinyl Mx-z 600. Mx-z 700.
31
409015400
Logement Fem.6c*housing-fem.6c Mx-z 600. Mx-z 700.
32
409014900
Verrou Femelle *lock-female Mx-z 600. Mx-z 700.
33
404161904
Durite *hose Mx-z 600. Mx-z 700.
34
512059372
Loquet Carb. *latch-carburator Mx-z 600. Mx-z 700.
6
516001191
Etiquette Inst.*inst-label Mx-z 600. Mx-z 700.
