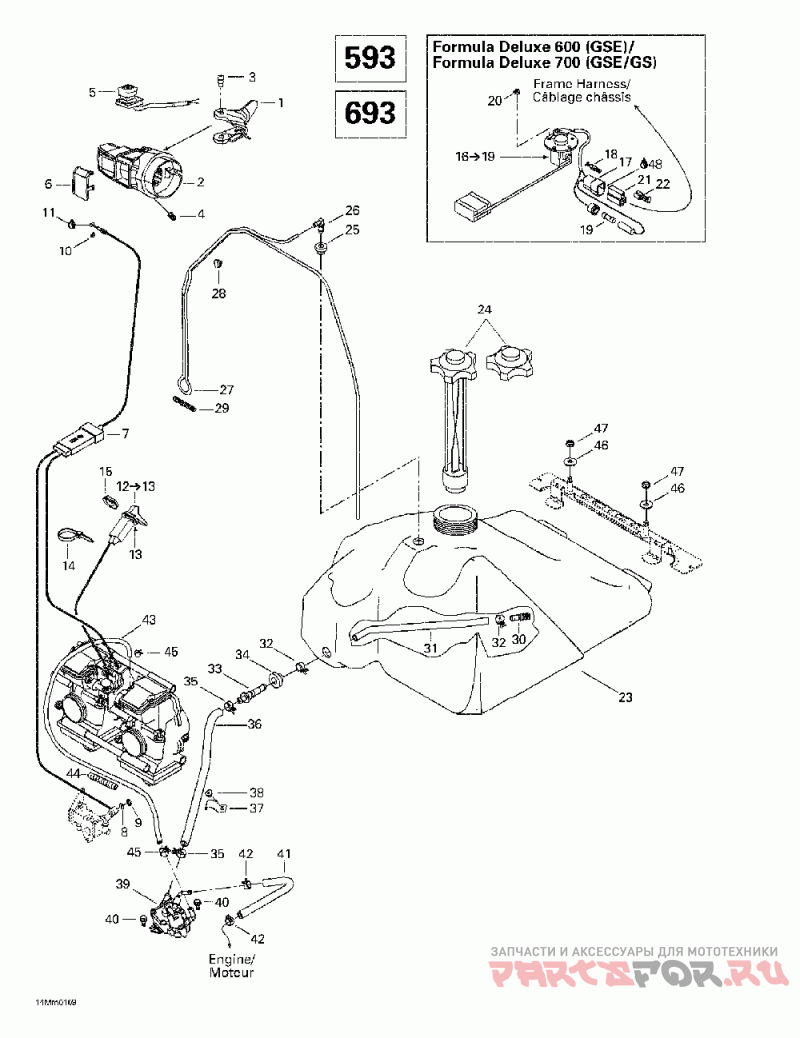

02- fuel system (593, 693)

Ski-Doo (Bombardier) Formula Deluxe 500/600/700

Ski-Doo (Bombardier)
#oem кодцена
1
512059481
Manette Ass. *handle-assy Formula Deluxe 600. Formula Deluxe 700.
2
512059763
Logem. Accel. *housing Throttle Formula Deluxe 600. Formula Deluxe 700.
3
732601143
Screw-shoulder Formula Deluxe 600. Formula Deluxe 700.
4
414440800
Screw-set Din 916-a2 Formula Deluxe 600. Formula Deluxe 700.
5
515176725
Interrupteur *kill Switch Formula Deluxe 600. Formula Deluxe 700.
6
572100901
Couv.interrupt.*cover-switch Formula Deluxe 600. Formula Deluxe 700.
7
512059388
Cable Accelerat*cable-throttle Formula Deluxe 600. Formula Deluxe 700.
8
414753300
Rondelle *washer Formula Deluxe 600. Formula Deluxe 700.
9
414753500
Circlip-type Bs N Formula Deluxe 600. Formula Deluxe 700.
10
414274500
Circlip-black Chromate Formula Deluxe 600. Formula Deluxe 700.
11
293550004
Graisse Dielect*grease-dielect Dc4 Formula Deluxe 600. Formula Deluxe 700.
12
512059110
Cable Etrang. *cable-choke Includes 12 - 13. Formula Deluxe 600. Formula Deluxe 700.
13
394103300
Washer-lock Int.teeth Formula Deluxe 600. Formula Deluxe 700.
14
515175220
Tie Rap *tie-rap Formula Deluxe 600. Formula Deluxe 700.
15
512059094
Ecrou Plastique*nut-plastic Formula Deluxe 600. Formula Deluxe 700.
16
515175170
Capt.niv.ess. *sensor-fuel Includes 16 - 19. (gse/gs) Formula Deluxe 600. Formula Deluxe 700.
17
409204500
Logement Male *housing-male (gse/gs) Formula Deluxe 600. Formula Deluxe 700.
18
409210000
Cosse Male *terminal-male Formula Deluxe 600. Formula Deluxe 700.
19
410112400
Fusible 0.25amp*fuse-0.25amp. Formula Deluxe 600. Formula Deluxe 700.
20
232551414
Nut-stop Elastic Din.985 Formula Deluxe 600. Formula Deluxe 700.
21
409204600
Logement Femel.*housing-female Formula Deluxe 600. Formula Deluxe 700.
22
561503100
Cosse Femelle *terminal-femal. Formula Deluxe 600. Formula Deluxe 700.
23
513032987
Reservoir Essen*tank-fuel Formula Deluxe 600.
513032988
Reservoir Essen*tank-fuel Formula Deluxe 700.
24
513033020
Bouchon Res.ess*cap-fuel Tank Formula Deluxe 600.
572039600
Bouchon *cap Formula Deluxe 600. Formula Deluxe 700.
25
513032908
Passe-fils *grommet Formula Deluxe 600. Formula Deluxe 700.
26
414814100
Raccord Male *connector-male Formula Deluxe 600. Formula Deluxe 700.
27
415080100
Boyau Amorce *line-primer Formula Deluxe 600. Formula Deluxe 700.
28
513032923
Bride De Tube *clamp-tube Formula Deluxe 600. Formula Deluxe 700.
29
414818200
Ressort *spring Formula Deluxe 600. Formula Deluxe 700.
30
414872100
Crepine *filter-fuel Formula Deluxe 600. Formula Deluxe 700.
31
415005700
Boyau Polyure *hose-polyurethane Formula Deluxe 600. Formula Deluxe 700.
32
513033010
Bride Serrage *clamp Formula Deluxe 600. Formula Deluxe 700.
33
414872700
Raccord Male *connector-male Formula Deluxe 600. Formula Deluxe 700.
34
570273900
Passe-fils *grommet Formula Deluxe 600. Formula Deluxe 700.
35
513032979
Bride A Ressort*clamp-spring Formula Deluxe 600. Formula Deluxe 700.
36
513032903
Boyau Forme *hose-formed Formula Deluxe 600. Formula Deluxe 700.
37
415018200
Pince *clip Formula Deluxe 600. Formula Deluxe 700.
38
390406500
Rivet-pop 3/16 *rivet-pop 3/16 Formula Deluxe 600. Formula Deluxe 700.
39
403901808
Pompe A Essence*pump-fuel Formula Deluxe 600. Formula Deluxe 700.
40
210361280
Screw-forming Hex.hd.fl.din.7500 Formula Deluxe 600. Formula Deluxe 700.
41
415079800
Boyau 1/4 I.d. *hose-1/4 I.d. Formula Deluxe 600. Formula Deluxe 700.
42
414415200
Bride A Ressort*clamp-spring Formula Deluxe 600. Formula Deluxe 700.
43
513032986
Boyau Forme *tube-formed Formula Deluxe 600. Formula Deluxe 700.
44
415079900
Gaine *protector Tube Formula Deluxe 600. Formula Deluxe 700.
45
414420700
Bride A Ressort*clamp-spring Formula Deluxe 600. Formula Deluxe 700.
46
234082410
Washer-flat Din.9021b Formula Deluxe 600. Formula Deluxe 700.
47
232581414
Nut-stop Elastic Din.985 Formula Deluxe 600. Formula Deluxe 700.
