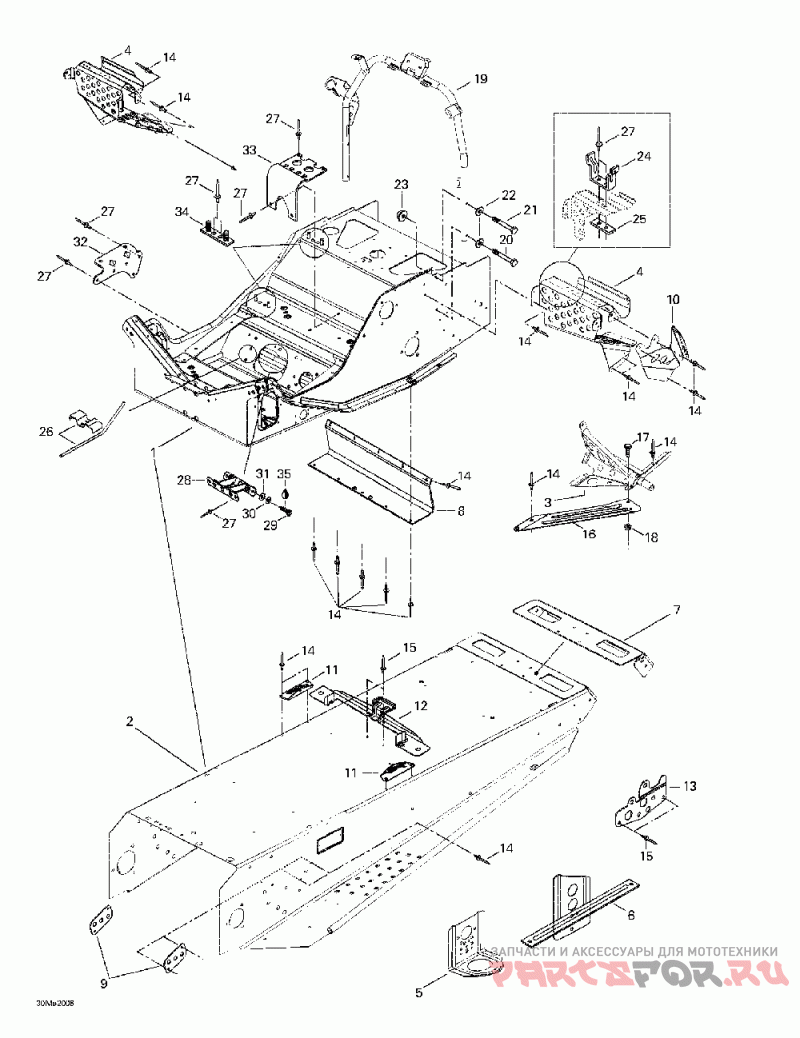

Рама

Ski-Doo (Bombardier) Touring 500 LC

Ski-Doo (Bombardier)
#oem кодцена
1
518322082
Chassis *frame Includes 1 - 18. (radiator And Radiator Protector Included)
3
518320506
Support Droit *rh.support
518320507
Support Gauche *lh.support
4
518318933
Repose-pied Dr.*footrest-rh
518318934
Repose-pied Ga.*footrest-lh
6
518318903
Attache *rear Bracket
518318904
Att.arr.ga.p. *brkt-rr Lh Paint
7
518321302
Capuchon Arr. *cap-rear
8
518321867
Дефлектор
9
518201321
Plaque Renfort *plate-reinf.
10
518308715
Plaque Sup. Dr.*plate-upper Rh
518308714
Plaque Sup. Ga.*plate-upper Lh
11
517266900
Att.reserv.dr.s*brkt-tank Rh Weld
517267000
Att.reserv.ga.s*brkt-tank Lh Weld
12
518317506
Attache Siege *bracket-seat
13
518321882
Renfort Arr.dr.*bracket-rear Rh
518321883
Renfort Arr.ga.*bracket-rear Lh
14
390402200
Заклепка 3/16
15
390402400
Заклепка 3/16
16
518321958
Plaque Renf.dr.*plate-reinf.rh
518321959
Plaque Renf.ga.*plate-reinf.lh
17
207151644
Винт
18
233251414
Гайка
19
518321428
Supp.guidon *supp-handle
20
207064044
Винт
21
207063544
Винт
22
234061410
Шайба
23
233261414
Гайка
24
518202100
Attache Gard.co*brkt-guard Belt
25
518207500
Renfort *reinforcement
26
518313700
Guide Corde Sou*guide-rope Weld.
28
518304741
Plaque Renf.sou*plate-reinf.weld
29
207182044
Винт
30
234181401
Шайба
31
224081201
Шайба
32
518322635
Support Silenc.*support-muffler
33
518310400
Supp.silenc.adm*supp-air Intake
34
518315300
Plaque Supp.sou*plate-supp.weld
35
293800005
Смазка Loctite 271
27
390402200
Заклепка 3/16
