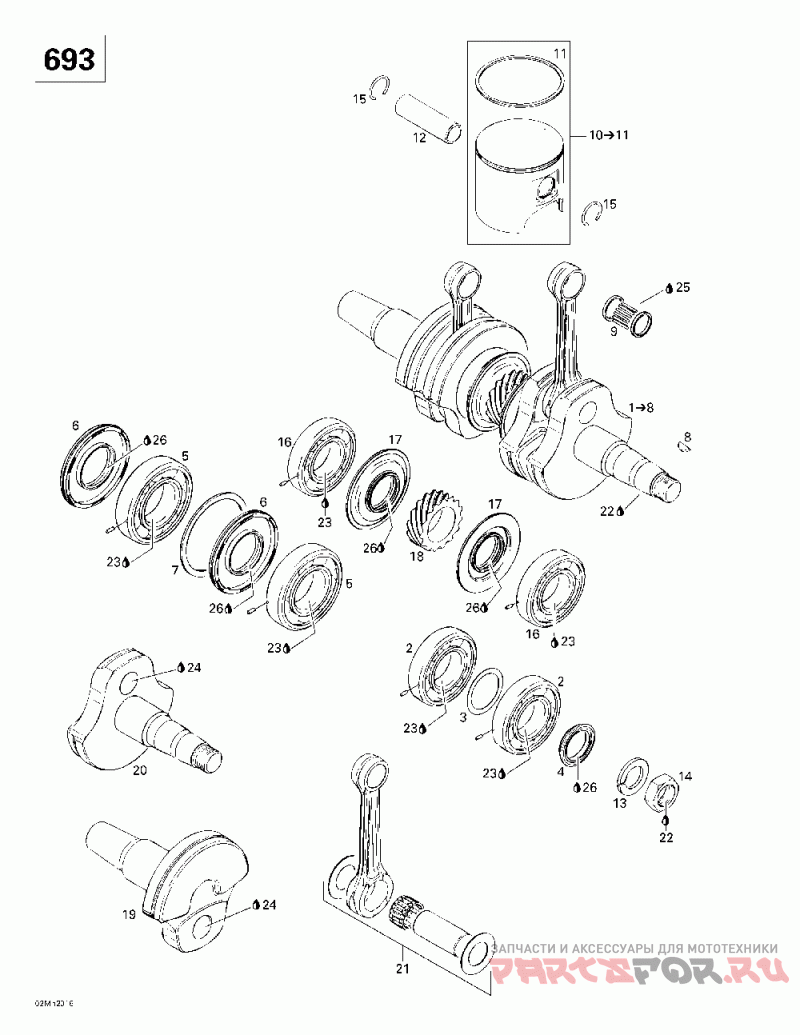

Коленвал и поршни - 2

Ski-Doo (Bombardier) Formula Z 600/700

Ski-Doo (Bombardier)
#oem кодцена
1
420888280
Деталь Vilebrequin *crankshaft Includes 1 - 8. Formula Z 700.
2
420832575
Деталь Roulement Bille*ball Bearing Formula Z 700.
3
420427502
Деталь Rondelle Ajus *washer-adj. Formula Z 700.
4
420931790
Деталь Anneau Etanche *seal-oil Formula Z 700.
5
420832600
Деталь Roulement Bille*ball Bearing Formula Z 700.
6
420931280
Деталь Anneau Etanche *seal-oil Formula Z 700.
7
420926190
Деталь Rondelle *washer Formula Z 700.
8
420246015
Деталь Clavette *key-woodruff Formula Z 700.
9
420832428
Деталь Roul.aiguille *needle Bearing Formula Z 700.
10
420888298
Деталь Piston 77, 88 *piston-assy 77, 88 Includes 10 - 11. Formula Z 700.
11
420815222
Деталь Segment Semi-tr*ring-semi Trap Formula Z 700.
12
420916371
Деталь Axe De Piston *pin-gudgeon Formula Z 700.
13
420945759
Деталь Rondelle-frein *washer-lock 22 Formula Z 700.
14
420842234
Деталь Nut-hex.m22 X 1, 5 Formula Z 700.
15
420845102
Деталь Circlip Piston *circlip-piston Formula Z 700.
17
420931450
Деталь Anneau Etanche *seal-oil Formula Z 700.
18
420834355
Деталь Engrenage Cent.*gear-central Formula Z 700.
19
420818706
Деталь Vilebrequin Pto*crankshaft-pto Formula Z 700.
21
420887989
Деталь Tige Rep.mag. *rod-repair Mag. Formula Z 700.
420887988
Деталь Tige Rep.pto. *rod-repair Pto. Formula Z 700.
22
293800060
Деталь Loctite 243 *loctite-243 Formula Z 700.
24
413711400
Деталь Loctite 648 *loctite-648 Formula Z 700.
25
413802900
Деталь Huile 2t 12x1 Minr* Oil 2t 12x1 Mineral Formula Z 700.
26
420899271
Деталь Graisse *grease Formula Z 700.
9
420832445
Деталь Roul.aiguille *needle Bearing Formula Z 700.
14
420842239
Деталь Ecrou*hex Nut M22x1, 5 Formula Z 700.
16
420832575
Деталь Roulement Bille*ball Bearing Formula Z 700.
21
420888283
Деталь Ens.tige Rep. *kit-rod Repair Formula Z 700.
