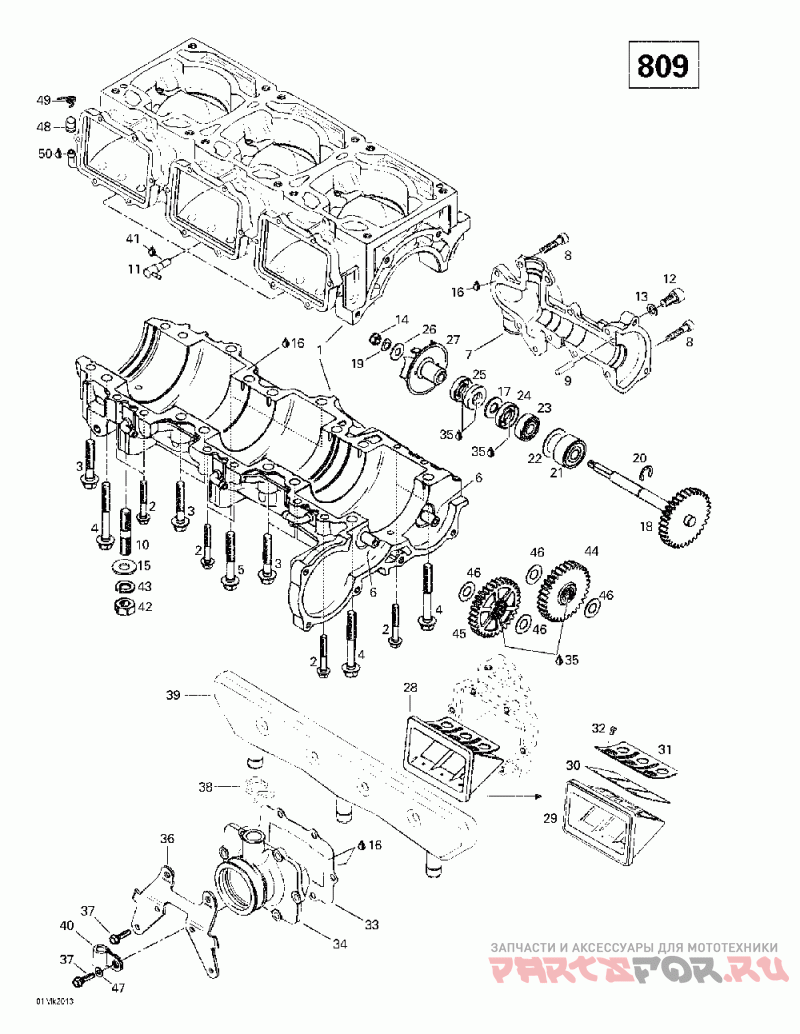

01- crankcase, reed valve, water pump 2

Ski-Doo (Bombardier) Formula III 700 R

Ski-Doo (Bombardier)
#oem кодцена
1
420888523
Carter Mo.po.co*crank.cover Pu Includes 1 - 13. Formula Iii 800.
2
420941451
Screw-hex Collar M6 X 40 Formula Iii 800.
3
420640431
Screw-hex Collar M8x45 Sw 11 Formula Iii 800.
4
420640951
Screw-hex. M8 X 68.5 Formula Iii 800.
5
420240326
Screw-hex.flange M8x53, 5 Formula Iii 800.
6
420929935
Axe Pignon *shaft-gear Int Formula Iii 800.
8
205062544
Screw-socket Hd.din.912 Formula Iii 800.
9
420429230
Aiguille *dowel-pin Formula Iii 800.
10
420940400
Stud-m10 Formula Iii 800.
11
420956510
Soupape Retenue*valve-check Formula Iii 800.
12
205081644
Screw-socket Hd.din.912 Formula Iii 800.
13
420950141
Bague Etanche *ring-sealing Formula Iii 800.
14
420842042
Ecrou M6 *nut-locking M6 Formula Iii 800.
16
413702700
Loctite 515 *loctite-515 Formula Iii 800.
17
420927410
Rondelle 10, 3 *washer 10, 3 Formula Iii 800.
18
420837435
Axe+engre.pompe*shaft-gear Wa. Formula Iii 800.
19
420845020
Rondelle Ressor*washer-spring Formula Iii 800.
20
420845390
Joint Retenue *ring-retaining Formula Iii 800.
21
420832490
Roulement Bille*ball Bearing Formula Iii 800.
22
420944466
Cale Epaisseur *shim Formula Iii 800.
23
420232100
Roulement Bille*ball Bearing Formula Iii 800.
24
420230195
Anneau Etanche *seal-oil Formula Iii 800.
25
420950400
Anneau Etanche *seal-oil Formula Iii 800.
26
420227155
Rondelle *washer Formula Iii 800.
27
420922445
Turbine A Eau *impeller-water Formula Iii 800.
28
420924519
Soupape Clapets*valve-reed Ass Includes 28 - 32. Formula Iii 800.
30
420924532
Lame Pedale *reed-pedal Formula Iii 800.
31
420924539
Arret Lame Ped.*stop-reed Ped. Formula Iii 800.
32
420941215
Screw-oval Head M3x5 Formula Iii 800.
33
420950292
Joint 1.00mm *gasket 1.00mm Formula Iii 800.
34
420867848
Tubulure D Adm.*socket-intake Formula Iii 800.
35
413707000
Dow Corning 111*dow Corning 111 Formula Iii 800.
36
420851351
Porteur Ada.car*carrier-car.so Formula Iii 800.
37
420841555
Screw-tapping M5 X 20 Formula Iii 800.
38
420851360
Bride *clamp Formula Iii 800.
39
420867797
Resonate.d Adm.*resona.intake Formula Iii 800.
40
414176000
Attache Collier*open Clamp Formula Iii 800.
41
413711400
Loctite 648 *loctite-648 Formula Iii 800.
42
232006414
Nut-hexagonal Din.934 Formula Iii 800.
43
234100602
Washer-lock Spring Din.128a-a2 Formula Iii 800.
44
420834266
Roue Dentee 32d*sprocket 32th Formula Iii 800.
45
420834267
Roue Dentee 32d*sprocket 32th Formula Iii 800.
46
420927952
Rondelle *washer-thrust Formula Iii 800.
47
420827800
Rondelle *washer Formula Iii 800.
48
420960770
Bouchon *cap Formula Iii 800.
49
420938190
Bride *clamp Formula Iii 800.
50
420297906
Compose Etanche*compound Sealing Formula Iii 800.
