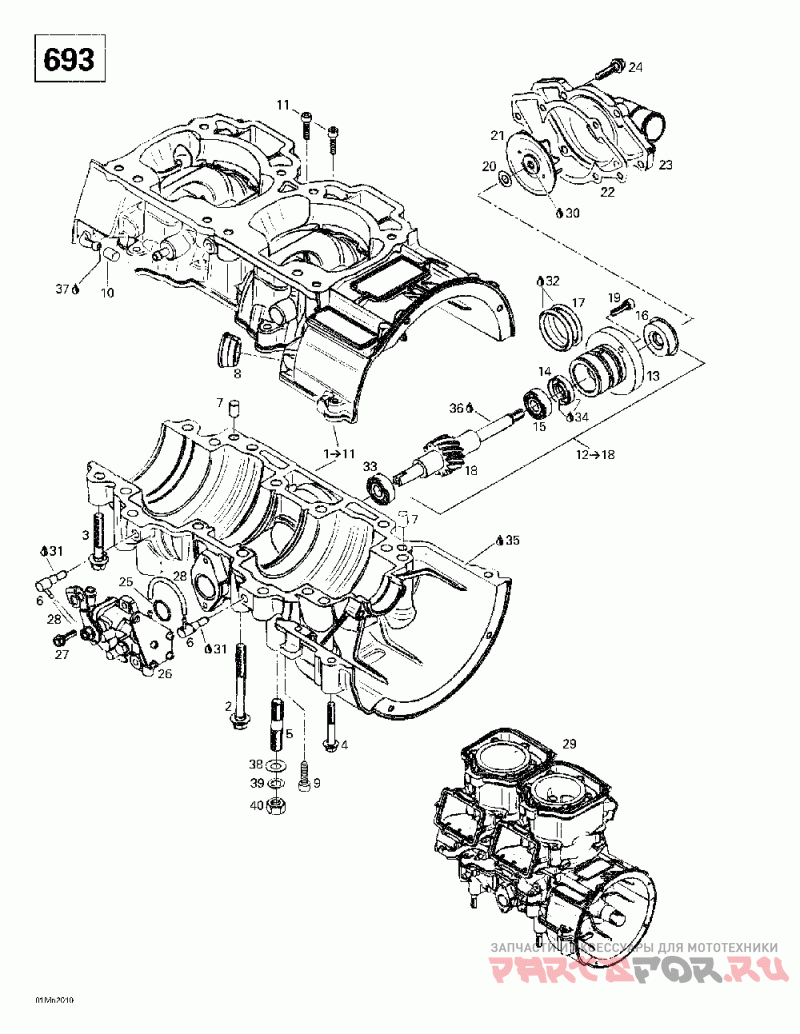

01- crankcase, water pump and oil pump 2

Ski-Doo (Bombardier) Formula Deluxe 600/700

Ski-Doo (Bombardier)
#oem кодцена
1
420888274
Деталь Carter Moteur *crankcase-assy Includes 1 - 11. Formula Deluxe 700.
2
420640831
Деталь Screw-hex Collar M8x75 Sw 11 Formula Deluxe 700.
3
420640436
Деталь Screw-hex Collar M8x45 Sw 11 Formula Deluxe 700.
4
420640311
Деталь Screw-hex Collar M6x45 Formula Deluxe 700.
5
420941644
Деталь Stud-m10 X 23/17 Formula Deluxe 700.
6
420956510
Деталь Soupape Retenue*valve-check Formula Deluxe 700.
7
420632010
Деталь Goupille *pin-center Formula Deluxe 700.
8
420860965
Деталь Passe-cable *grommet-cable Formula Deluxe 700.
9
205063044
Деталь Screw-socket Hd.din.912 Formula Deluxe 700.
10
420960770
Деталь Bouchon *cap Formula Deluxe 700.
11
205062044
Деталь Screw-socket Hd.din.912 Formula Deluxe 700.
14
420230195
Деталь Anneau Etanche *seal-oil Formula Deluxe 700.
15
420232100
Деталь Roulement Bille*ball Bearing Formula Deluxe 700.
16
420650370
Деталь Joint Tournant *rotary Seal Formula Deluxe 700.
17
420950890
Деталь Joint Torique *o Ring Formula Deluxe 700.
19
420840511
Деталь Screw-allen M5 X 16 Formula Deluxe 700.
20
420227945
Деталь Rondelle *washer Formula Deluxe 700.
21
420222505
Деталь Turbine A Eau *impeller-water Formula Deluxe 700.
22
420931810
Деталь Joint *gasket Formula Deluxe 700.
23
420922630
Деталь Log.pompe Eau *hous-waterpump Formula Deluxe 700.
24
420240031
Деталь Screw-hex.m6 X 25 Formula Deluxe 700.
25
293300041
Деталь Joint Torique *o-ring Formula Deluxe 700.
26
420888265
Деталь Pompe A Huile *pump-oil Assy. Formula Deluxe 700.
27
420941925
Деталь Screw-tapping M5 X 16 Formula Deluxe 700.
28
414413800
Деталь Boyau D Huile *hose-oil Formula Deluxe 700.
29
420069303
Деталь Moteur 693 Semi*block-short 693 Formula Deluxe 700.
30
293800060
Деталь Loctite 243 *loctite-243 Formula Deluxe 700.
31
413711400
Деталь Loctite 648 *loctite-648 Formula Deluxe 700.
32
413707000
Деталь Dow Corning 111*dow Corning 111 Formula Deluxe 700.
34
420899271
Деталь Graisse *grease Formula Deluxe 700.
35
420297906
Деталь Compose Etanche*compound Sealing Formula Deluxe 700.
36
413802900
Деталь Huile 2t 12x1 Minr* Oil 2t 12x1 Mineral Formula Deluxe 700.
37
293550021
Деталь Graisse Isoflex*grease-isoflex Formula Deluxe 700.
38
234001410
Деталь 0asher-flat Din.125a Formula Deluxe 700.
39
234100602
Деталь Washer-lock Spring Din.128a-a2 Formula Deluxe 700.
40
232006414
Деталь Nut-hexagonal Din.934 Formula Deluxe 700.
12
420837421
Деталь Arbre Pompe *oil/water Pump Shaft Includes 12 - 18. Formula Deluxe 700.
33
420232100
Деталь Roulement Bille*ball Bearing Formula Deluxe 700.
