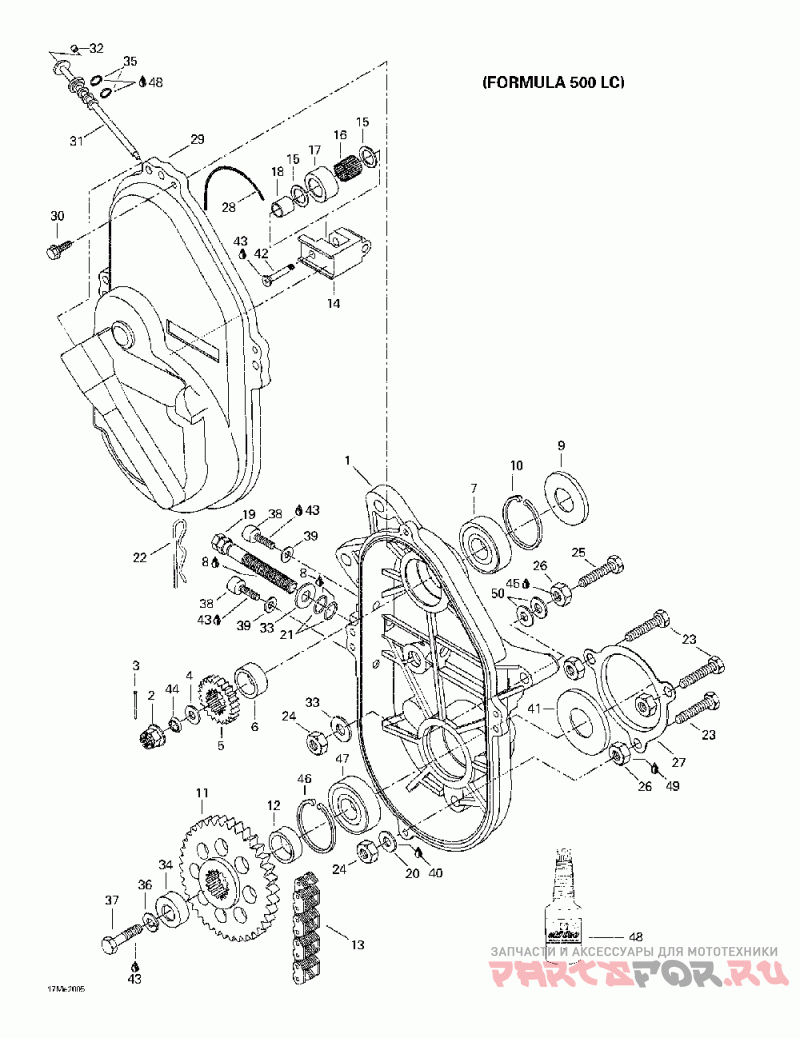

05- chaincase (formula 500 lc)

Ski-Doo (Bombardier) Formula 500 LC

Ski-Doo (Bombardier)
#oem кодцена
1
504151777
Carter Chaine U*case-chain Mach. Formula 500 Lc.
2
232210414
Nut-hex.castle Thin Din.937 Formula 500 Lc.
3
371801300
Goupille Fendue*pin-cotter Formula 500 Lc.
4
504087100
Rondelle *washer Formula 500 Lc.
5
504078400
Roue Dentee 23d*sprocket 23th Formula 500 Lc.
6
504093400
Cale Epaisseur *shim Formula 500 Lc.
7
504152006
Roulement Bille*ball Bearing Formula 500 Lc.
8
293550033
Synthetic Grease 10x14oz Formula 500 Lc.
9
414882800
Joint Etanche *oil Seal Formula 500 Lc.
10
371901700
Circlip Int. *circlip-int. Formula 500 Lc.
11
504148600
Roue Dentee 43d*sprocket 43th Formula 500 Lc.
12
501021800
Cale Interieure*shim-inner Formula 500 Lc.
13
504151883
Chaine 72 M. *chain-driving Formula 500 Lc.
14
504081000
Tendeur Usine *tensioner-mach Formula 500 Lc.
15
504080300
Rondelle *washer Formula 500 Lc.
16
405403000
Roul.aiguille *needle Bearing Formula 500 Lc.
17
414531300
Rouleau *roller Formula 500 Lc.
18
504080200
Entretoise *spacer Formula 500 Lc.
19
732601311
Vis De Reglage *screw Adjusting Formula 500 Lc.
20
234001460
Washer-flat Din.125a Formula 500 Lc.
21
414484400
Joint Torique *o-ring Formula 500 Lc.
22
414575600
Goup.surete *pin-hair Formula 500 Lc.
23
207104544
Screw-hex.cap Iso.4017 Formula 500 Lc.
24
233601416
Nut-locking Elastic Din.982 Formula 500 Lc.
25
207107044
Pscrew-hex.cap Iso.4017 Formula 500 Lc.
26
504083800
Entretoise *spacer Formula 500 Lc.
27
501022100
Protecteur *protector Formula 500 Lc.
28
414362300
Joint Torique *o-ring Formula 500 Lc.
29
080037100
Couvercle Moule*cover-casting Formula 500 Lc.
30
210263080
Screw-forming Hex.hd.fl.gm6174m Formula 500 Lc.
31
572092700
Bouchon Remp.as*cap-filler Assy. Includes 31 - 32. Formula 500 Lc.
32
206540490
Screw-set Socket Din.916 Formula 500 Lc.
33
234001410
0asher-flat Din.125a Formula 500 Lc.
34
501022400
Capuchon *cap Formula 500 Lc.
35
414969400
Joint Torique *o-ring Formula 500 Lc.
36
234100602
Washer-lock Spring Din.128a-a2 Formula 500 Lc.
37
207102544
Screw-hex.cap Iso.4017 Formula 500 Lc.
38
205481046
Screw-socket Bn.hd.iso.7380 Formula 500 Lc.
39
504082900
Washer Din 7603 Formula 500 Lc.
40
413702700
Loctite 515 *loctite-515 Formula 500 Lc.
41
504151925
Anneau Etanche *oil Seal Ass Y Formula 500 Lc.
42
732601144
Screw Formula 500 Lc.
43
293800005
Loctite 271 *loctite-271 Formula 500 Lc.
44
417000900
Rondelle Res. *spring Washer Formula 500 Lc.
45
293800060
Loctite 243 *loctite-243 Formula 500 Lc.
46
414784900
Circlip Int. *circlip-int. Formula 500 Lc.
47
504152010
Roulement Bille*ball Bearing Formula 500 Lc.
48
413803300
Huile Chaine *oil-chain (12 X 355 Ml) Formula 500 Lc.
50
504073700
Rondelle *washer Formula 500 Lc.
