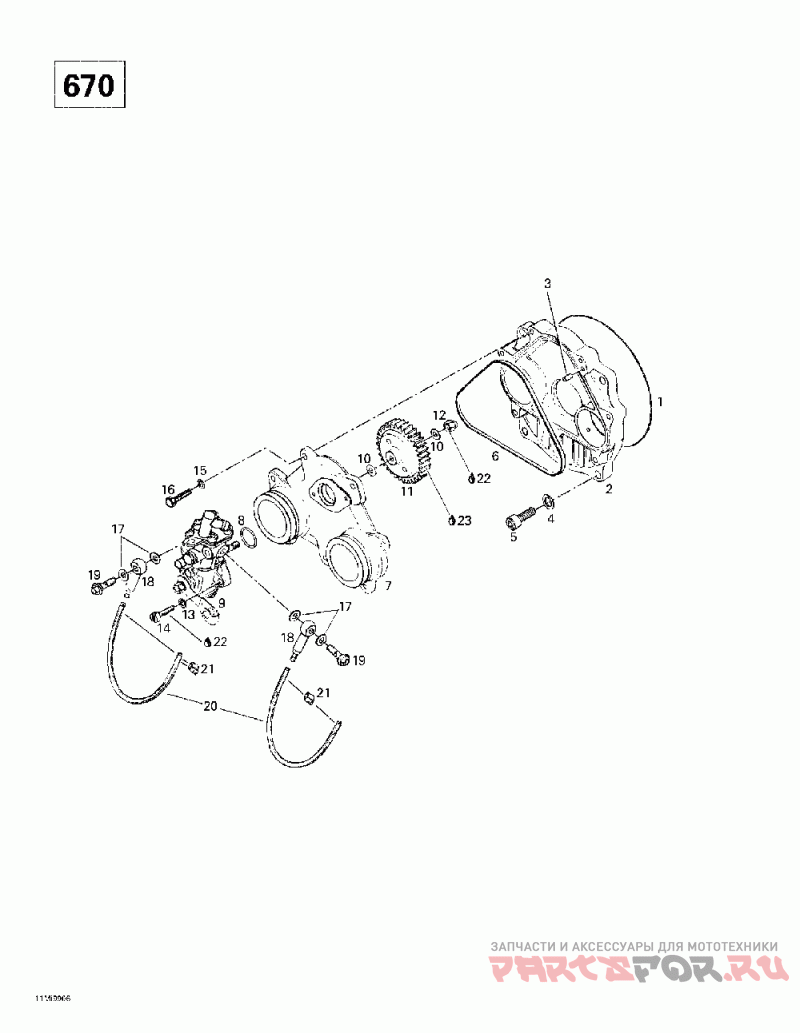

02- oil injection system (670)

Ski-Doo (Bombardier) Summit 500/X 670

Ski-Doo (Bombardier)
#oem кодцена
1
293300023
Деталь Joint Torique *o-ring Summit X670.
2
420910314
Деталь Couvercle Ass. *cover-assy. Includes 2 - 3. Summit X670.
3
420929650
Деталь Goupille Ass. *guide Pin Summit X670.
4
420945751
Деталь Washer-lock Din.128 Summit X670.
5
205082044
Деталь Screw-socket Hd.din.912 Summit X670.
6
420831700
Деталь Bague Caout. *ring-rubber Summit X670.
7
420910325
Деталь Epaul.pompe *flange-pump Summit X670.
8
293300018
Деталь Joint Torique *o-ring Summit X670.
9
420887348
Деталь Pompe A Huile *pump-oil Assy. Summit X670.
10
420927945
Деталь Washer-flat 6, 2x12x1 Summit X670.
11
420935940
Деталь Engrenage Pompe*gear-oil Pump Summit X670.
12
232561414
Деталь Nut-stop Elastic Din.985 Summit X670.
13
420945750
Деталь Rondelle-frein *washer-lock#5 Summit X670.
14
420240761
Деталь Screw-cyl.m5 X 16 Summit X670.
16
207162044
Деталь Screw-hex.cap Din.933 Summit X670.
17
404146600
Деталь Rondelle Etanch*washer-sealing Summit X670.
18
420956010
Деталь Soupape Ass. *valve-assy. Summit X670.
19
404146800
Деталь Bolt-banjo M6 X 16 Summit X670.
20
414413800
Деталь Boyau D Huile *hose-oil Summit X670.
21
420853840
Деталь Bride *clamp Summit X670.
22
293800060
Деталь Loctite 243 *loctite-243 Summit X670.
23
413707000
Деталь Dow Corning 111*dow Corning 111 Summit X670.
15
420945751
Деталь Washer-lock Din.128 Summit X670.
