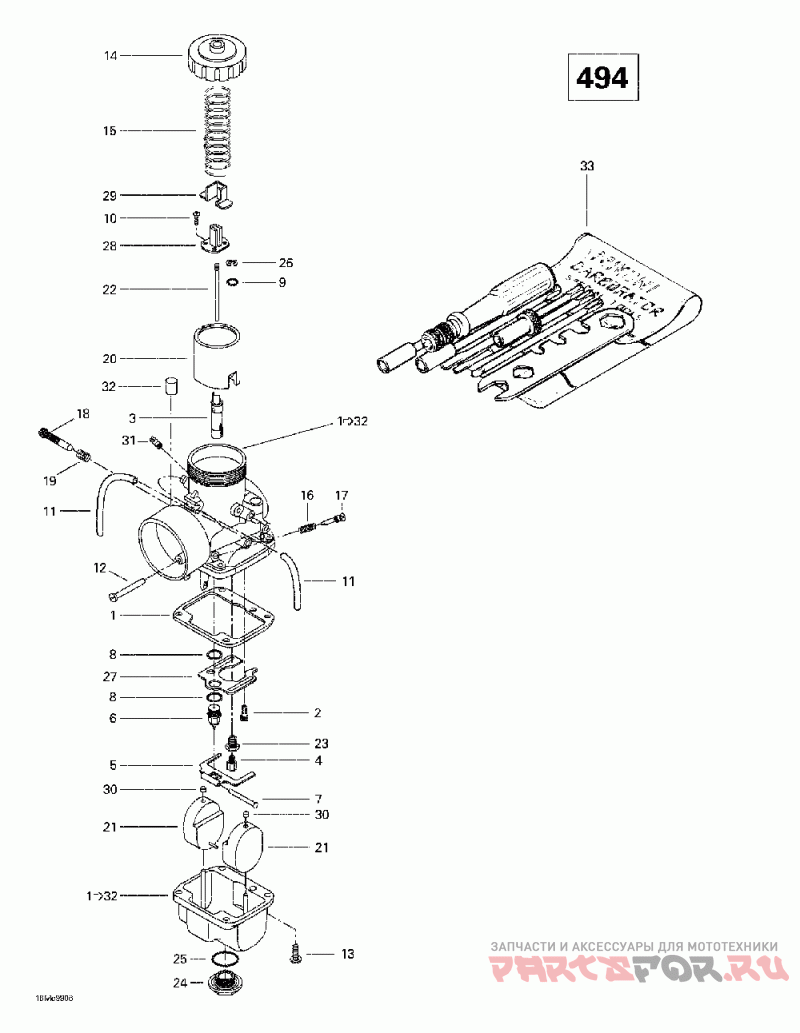

02- carburetors (494)

Ski-Doo (Bombardier) Summit 500/X 670

Ski-Doo (Bombardier)
#oem кодцена
403138520
Деталь Carb.vm-38 *carb-vm-38 Summit 500.
1
404104700
Деталь Joint *gasket Summit 500.
2
404148100
Деталь Gicleur Ralenti*jet-pilot 75 Summit 500.
3
404157600
Деталь Gicleur Aiguil.*jet Needle Summit 500.
4
404106000
Деталь Gicleur Mj 350 *jet-main 350 Summit 500.
404101400
Деталь Gicleur Mj 330 *jet-main 330 Summit 500.
5
404105000
Деталь Levier Flotteur*lever-float Summit 500.
6
404147400
Деталь Pointeau Vs 1.5*valve Needle Summit 500.
7
404103300
Деталь Goupille Levier*pin-lever Summit 500.
8
404101600
Деталь Rondelle Siege *washer-seat Summit 500.
9
404117000
Деталь Joint Tampon *packing Summit 500.
10
404121300
Деталь Vis W.rondelle*screw-with Washer Summit 500.
11
404161821
Деталь Durite *hose Summit 500.
12
404131700
Деталь Vis Bouchon *screw-plug Summit 500.
13
404102000
Деталь Screw-w/lock *screw-w/lockwasher Summit 500.
14
404105100
Деталь Couvercle Carb.*top-mix.chamb. Summit 500.
15
404154800
Деталь Ressort *spring Summit 500.
16
404139800
Деталь Ressort *spring Summit 500.
17
404149000
Деталь Vis Air *screw-air Summit 500.
18
404102800
Деталь Vis Ajustement*screw-idle Speed Summit 500.
19
404101700
Деталь Ressort *spring Summit 500.
20
404131300
Деталь Tiroir Acc.2.5 *piston-val.2.5 Summit 500.
21
404105400
Деталь Flotte *float Summit 500.
22
404161500
Деталь Aiguille 6dhy48*needle Summit 500.
23
404105500
Деталь Vis Guide *screw-guide Summit 500.
24
404105600
Деталь Vis Bouchon *screw-drain Plug Summit 500.
25
404101500
Деталь Rondelle *washer Summit 500.
26
404152400
Деталь Rondelle E *ring-e Summit 500.
28
404160800
Деталь Connecteur *connector Summit 500.
29
404122100
Деталь Couvercle *cover Summit 500.
30
404105800
Деталь Capuchon *cap Summit 500.
31
404153400
Деталь Raccord *nipple Summit 500.
32
404158900
Деталь Filtre *filter Summit 500.
33
404112000
Деталь Trousse Outils *tool Kit Summit 500.
