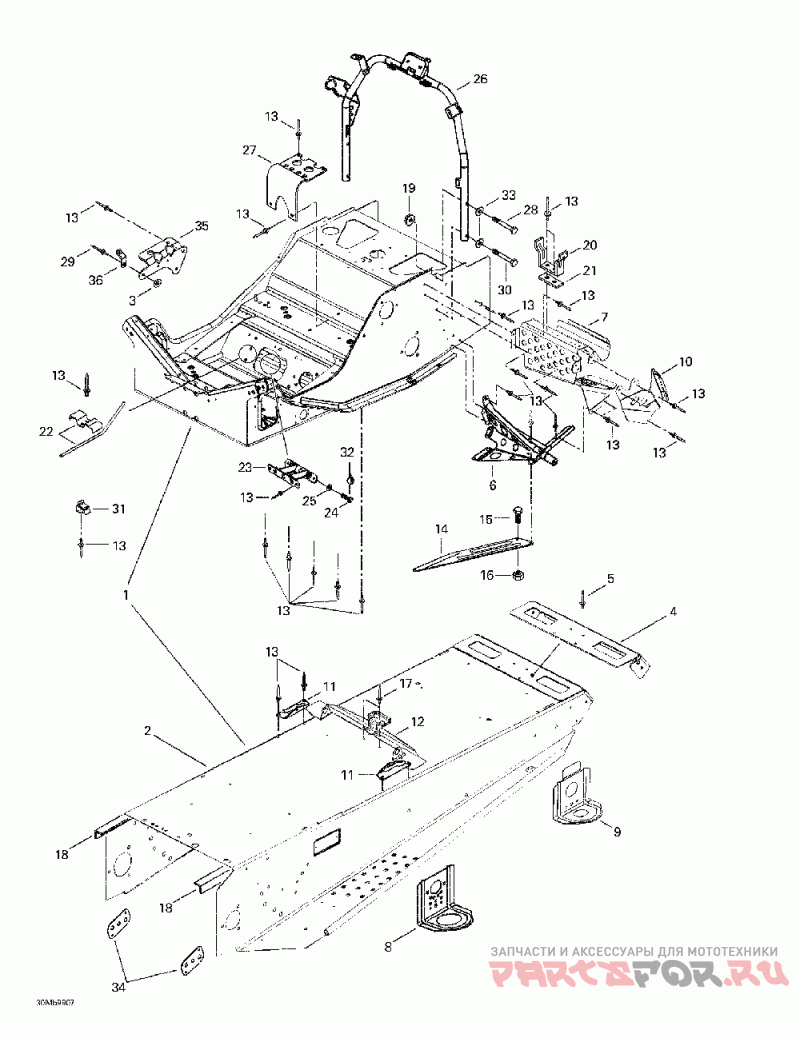

Рама

Ski-Doo (Bombardier) Formula Deluxe 380/500

Ski-Doo (Bombardier)
#oem кодцена
1
518321641
Chassis *frame Includes 1 - 18.
2
518321663
Tunnel *frame-forming
3
517225900
Washer - Flat Formula Deluxe 380.
4
518321301
Capuchon Arr. *cap-rear
5
390402200
Заклепка 3/16
6
518320507
Support Gauche *lh.support
518320506
Support Droit *rh.support
7
518318933
Repose-pied Dr.*footrest-rh
518318934
Repose-pied Ga.*footrest-lh
8
518321495
Attache Avant *bracket-front
9
518308704
Attache Arriere*bracket-rear
10
518308714
Plaque Sup. Ga.*plate-upper Lh
518308715
Plaque Sup. Dr.*plate-upper Rh
11
517266900
Att.reserv.dr.s*brkt-tank Rh Weld
517267000
Att.reserv.ga.s*brkt-tank Lh Weld
12
518317506
Attache Siege *bracket-seat
14
518316709
Plaque Renf.dr.*plate-reinf.rh
518321959
Plaque Renf.ga.*plate-reinf.lh
15
207151644
Винт
16
233251414
Гайка
17
390402400
Заклепка 3/16
18
518316713
Renf.tunnel Ga.*reinf-frame Lh
518316714
Renf.tunnel Dr.*reinf-frame Rh
19
233261414
Гайка
20
518202100
Attache Gard.co*brkt-guard Belt
21
518207500
Renfort *reinforcement
22
517276100
Guide Corde Sou*guide-rope Weld.
23
518304741
Plaque Renf.sou*plate-reinf.weld
24
207182044
Винт
25
234181401
Шайба
26
518321428
Supp.guidon *supp-handle
27
518310400
Supp.silenc.adm*supp-air Intake
28
207063544
Винт
29
390402300
Rivet-pop 3/16 *rivet-pop 3/16 Formula Deluxe 380.
30
207064044
Винт
31
414227300
Пружина
32
293800005
Смазка Loctite 271
33
234061410
Шайба
34
518201321
Plaque Renfort *plate-reinf.
35
518316704
Support Silenc.*support-muffler Formula Deluxe 380.
36
514034000
Attache Ressort*bracket-spring Formula Deluxe 380.
13
390402200
Заклепка 3/16
