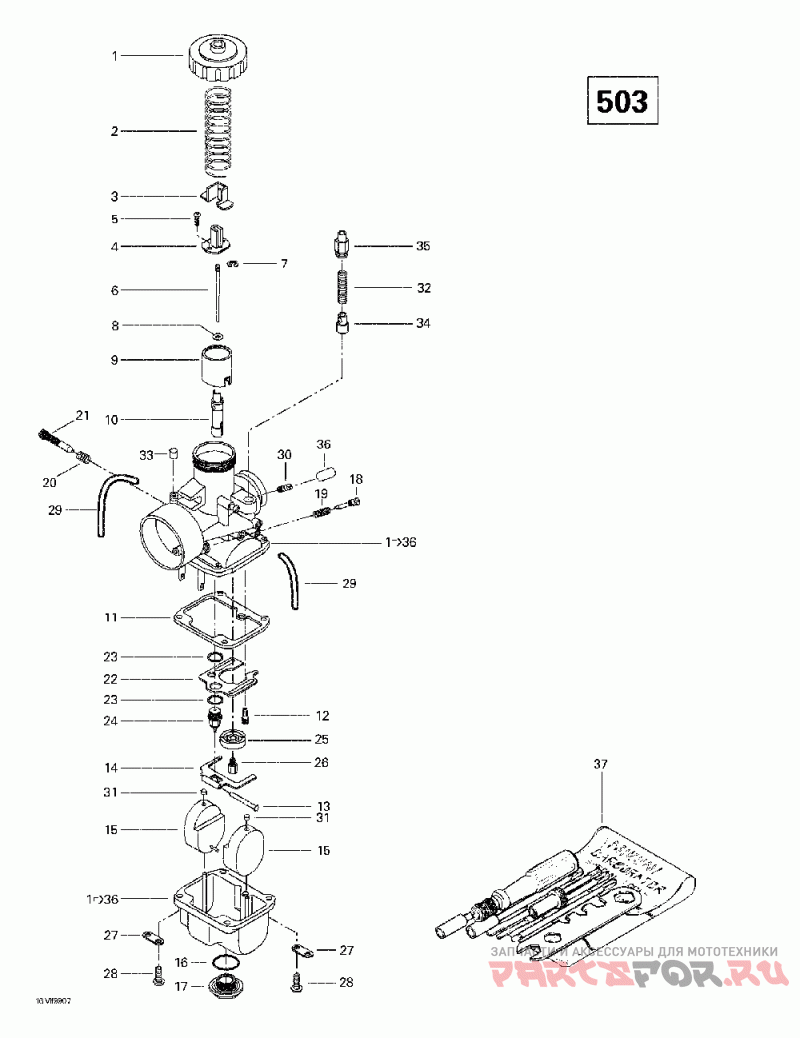

Карбюратор (503)

Ski-Doo (Bombardier) Formula Deluxe 380/500

Ski-Doo (Bombardier)
#oem кодцена
403138542
Деталь Carb.vm-34 Mag *carb-vm-34 Mag Formula Deluxe 500.
1
404103700
Деталь Couvercle Carb.*top-mix.chamb. Formula Deluxe 500.
2
404154800
Деталь Ressort *spring Formula Deluxe 500.
3
404122100
Деталь Couvercle *cover Formula Deluxe 500.
4
404160800
Деталь Connecteur *connector Formula Deluxe 500.
5
404121300
Деталь Vis W.rondelle*screw-with Washer Formula Deluxe 500.
6
404110400
Деталь Aiguille 6dh02 *needle Formula Deluxe 500.
7
404152400
Деталь Rondelle E *ring-e Formula Deluxe 500.
8
404117000
Деталь Joint Tampon *packing Formula Deluxe 500.
9
404128400
Деталь Tiroir Acc.2.5 *piston-val.2.5 Formula Deluxe 500.
10
404107000
Деталь Gicleur Aiguil.*jet Needle Formula Deluxe 500.
11
404104200
Деталь Joint *gasket Formula Deluxe 500.
12
404109100
Деталь Gicleur Ralenti*jet-pilot 40 Formula Deluxe 500.
13
404103300
Деталь Goupille Levier*pin-lever Formula Deluxe 500.
14
404107600
Деталь Levier Flotteur*lever-float Formula Deluxe 500.
15
404107100
Деталь Flotte *float Formula Deluxe 500.
16
404107300
Деталь Joint Torique *o-ring Formula Deluxe 500.
17
404107400
Деталь Vis Bouchon *screw-drain Plug Formula Deluxe 500.
18
404149000
Деталь Vis Air *screw-air Formula Deluxe 500.
19
404139800
Деталь Ressort *spring Formula Deluxe 500.
20
404101700
Деталь Ressort *spring Formula Deluxe 500.
21
404125200
Деталь Vis Etrangleur*screw-throttle Formula Deluxe 500.
22
404109600
Деталь Chicane *baffle Formula Deluxe 500.
23
404101600
Деталь Rondelle Siege *washer-seat Formula Deluxe 500.
24
404103200
Деталь Pointeau Vs 1.5*valve-needle Formula Deluxe 500.
25
404110900
Деталь Bague Chicane *ring-baffle Formula Deluxe 500.
26
404112200
Деталь Gicleur Mj 180 *jet-main 180 Formula Deluxe 500.
404123800
Деталь Gicleur Mj 170 *jet-main 170 Formula Deluxe 500.
27
404103000
Деталь Plaque *plate Formula Deluxe 500.
28
404102000
Деталь Screw-w/lock *screw-w/lockwasher Formula Deluxe 500.
29
404161880
Деталь Boyau *hose Formula Deluxe 500.
30
404153400
Деталь Raccord *nipple Formula Deluxe 500.
31
404105800
Деталь Capuchon *cap Formula Deluxe 500.
32
404127400
Деталь Ressort *spring Formula Deluxe 500.
33
404158900
Деталь Filtre *filter Formula Deluxe 500.
34
404161000
Деталь Plongeur Ass. *plunger-assy Formula Deluxe 500.
35
404161100
Деталь Guide *guide Holder Formula Deluxe 500.
36
404156600
Деталь Capuchon *cap Formula Deluxe 500.
37
404112000
Деталь Trousse Outils *tool Kit Formula Deluxe 500.
