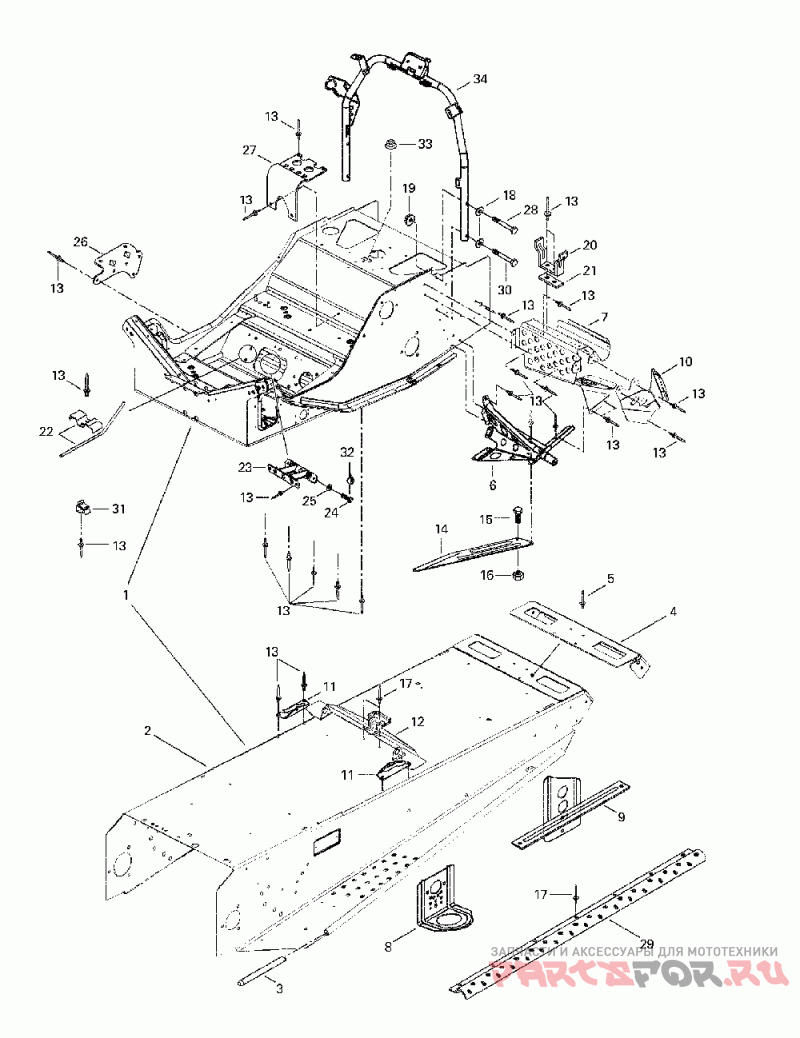

Рама

Ski-Doo (Bombardier) Summit 500/583/670

Ski-Doo (Bombardier)
#oem кодцена
1
518319051
Chassis *frame Includes 1 - 17.
2
518318864
Tunnel *frame-forming Includes 2 - 5.
3
518304746
Renf.marche-pie*reinf.-foot.
4
518317551
Capuchon Arr. *cap-rear
5
390402200
Заклепка 3/16
518320507
Support Gauche *lh.support Summit 670.
518320506
Support Droit *rh.support Summit 670.
7
518318933
Repose-pied Dr.*footrest-rh
518318934
Repose-pied Ga.*footrest-lh
8
518321495
Attache Avant *bracket-front
9
518318912
Att.arr.ga.pein*brkt-rr Lh Paint
518318911
Att.arr.dr.pein*brkt-rr Rh Paint
10
518308729
Plaque Sup. Ga.*plate-upper Lh
518308730
Plaque Sup. Dr.*plate-upper Rh
11
517266900
Att.reserv.dr.s*brkt-tank Rh Weld
517267000
Att.reserv.ga.s*brkt-tank Lh Weld
12
518317560
Attache Siege *bracket-seat
14
518316772
Plaque Renf.dr.*plate-reinf.rh
518321959
Plaque Renf.ga.*plate-reinf.lh
15
207151644
Винт
16
233251414
Гайка
17
390402400
Заклепка 3/16
18
234061410
Шайба
19
233261414
Гайка
20
518202100
Attache Gard.co*brkt-guard Belt
21
518207500
Renfort *reinforcement
22
518313700
Guide Corde Sou*guide-rope Weld.
23
518304741
Plaque Renf.sou*plate-reinf.weld
24
207182044
Винт
25
234181401
Шайба
26
518322635
Support Silenc.*support-muffler Summit 583.
27
518310400
Supp.silenc.adm*supp-air Intake
28
207063544
Винт
29
518319401
Bande Anti-rag.*strip-protect.
30
207064044
Винт
31
414227300
Пружина
32
293800005
Смазка Loctite 271
33
414859400
Крышка
34
518309200
Supp.guidon *supp-handle
518322635
Support Silenc.*support-muffler Summit 500. Summit 670.
13
390402200
Заклепка 3/16
