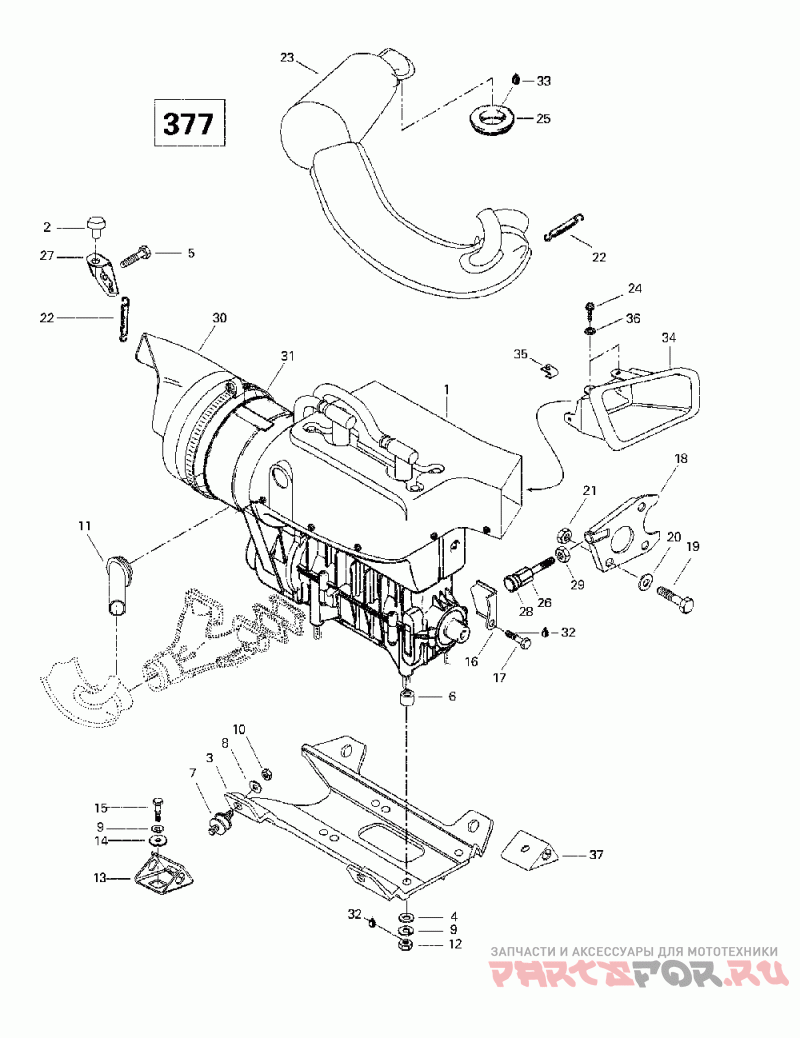

01- engine support and muffler (377)

Ski-Doo (Bombardier) Skandic 380/500

Ski-Doo (Bombardier)
#oem кодцена
2
570044700
Butoir Caout. *bumper-rubber Skandic 380.
3
512054500
Socle *support-engine Skandic 380.
4
234001410
0asher-flat Din.125a Skandic 380.
5
207006044
Screw-hex.cap Iso.4014 Skandic 380.
6
512051900
Entretoise *spacer Skandic 380.
7
570128700
Tampon Ancrage *mount-rubber Skandic 380.
9
234100602
Washer-lock Spring Din.128a-a2 Skandic 380.
10
233601416
Nut-locking Elastic Din.982 Skandic 380.
11
570045800
Raccord Air For*connector-ff. Skandic 380.
12
232006414
Nut-hexagonal Din.934 Skandic 380.
13
512057600
Supp.moteur Sou*supp-engine Weld Skandic 380.
14
512056700
Rondelle-frein *washer-lock Skandic 380.
15
207102544
Screw-hex.cap Iso.4017 Skandic 380.
16
512059198
Plaque Butee So*plate-stop.weld Skandic 380.
17
207182044
Screw-hex.cap Din.933 Skandic 380.
18
517271800
Plaque App.soud*plate-weld Skandic 380.
19
207182544
Screw-hex.cap Din.933 Skandic 380.
20
234081410
Washer-flat Din.125a Skandic 380.
21
232581414
Nut-stop Elastic Din.985 Skandic 380.
22
517182100
Ressort *spring Skandic 380.
23
514046100
Silenc.air/forc*muffler-ff Skandic 380.
24
365901100
Screw-hex.taping 12 Skandic 380.
25
570039000
Grommet-exhaust D70 Skandic 380.
26
517244200
Vis *screw Skandic 380.
27
514038800
Support Silenc.*support-muffler Skandic 380.
28
570025100
Tige Retenue *rod-retainer Skandic 380.
29
232120414
Nut-jam Hexagonal Din.439b Skandic 380.
30
572058400
Deflecteur Air *deflector-air Skandic 380.
31
408803600
Bride Serrage *clamp-gear Skandic 380.
32
293800005
Loctite 271 *loctite-271 Skandic 380.
33
293550030
Graisse *grease Skandic 380.
34
572098000
Conduit Sortie *duct-outlet Skandic 380.
35
389812800
Speednut Skandic 380.
36
732900047
Washer-lock Serrated Double Skandic 380.
37
512050900
Supp.moteur Sou*supp-engine Weld Skandic 380.
8
234001410
Washer-flat Din.125a Skandic 380.
